KM50-TBJDS3 (1986)
Toyota Lite/Townace Truck

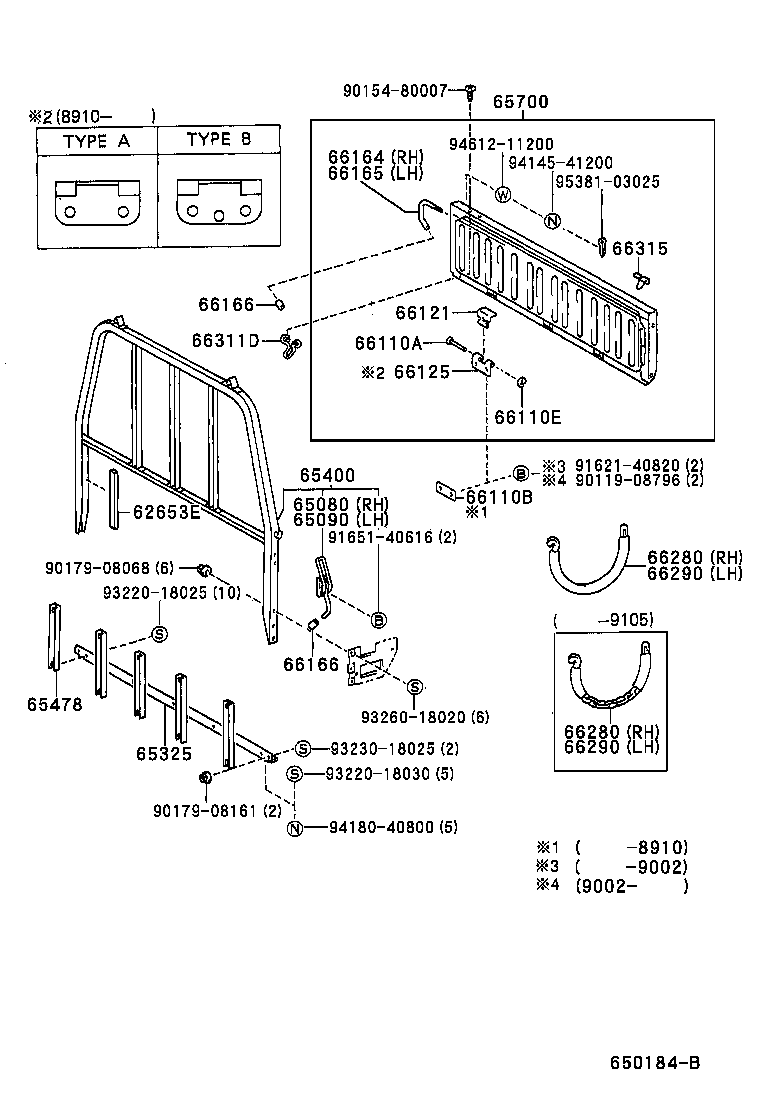

(8610- )TB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65080 - HANDLE ASSY, SIDE GATE LATCK, RH | ||||
| 65080-95700 |
CM5#,6#,KM5#,YM55,60..3SO |
1 | ||
| 65090 - HANDLE ASSY, SIDE GATE LATCH, LH | ||||
| 65090-95700 |
CM5#,6#,KM5#,YM55,60..3SO |
1 | ||
| 65325 - PLATE, FLOOR BOARD, FRONT | ||||
| 65325-95701 |
CM55,6#,KM50,YM55..TB |
1 | ||
| 65400 - FRAME ASSY, REAR BODY GUARD | ||||
| 65400-95711 |
CM50,51,KM50..JL |
1 | ||
| 65400-95716 |
KM50..TB |
1 | ||
| 65400-95727 |
CM55,KM5#,YM55..TB |
1 | ||
| 65478 - REINFORCEMENT, HEADER BOARD | ||||
| 65478-95700 |
CM55,60,65,KM5#,YM55..TB |
5 | ||
| 65700 - GATE ASSY, REAR BODY TAIL | ||||
| 65700-95707 |
CM55,KM50,YM55..TB |
1 | ||
| 65700-95705 |
CM5#,6#,KM5#,YM55,60..TS..3SO |
1 | ||
| 65700-95708 |
CM55,6#,KM50,YM55..TB |
1 | ||
| 66110A - PIN, TAIL GATE HINGE | ||||
| 66113-87402 |
CM5#,6#,KM5#,YM55,60..TS..3SO |
3 | ||
| 66119-95700 |
CM55,6#,KM50,YM55..TB |
3 | ||
| 66110B - RETAINER, TAIL GATE HINGE, LOWER | ||||
| 66115-95700 |
CM55,6#,KM50,YM55..TB |
3 | ||
| 66121 - HINGE, TAIL GATE, MALE | ||||
| 66111-87404 |
CM5#,6#,KM5#,YM55,60..TS..3SO |
3 | ||
| 65535-87401 |
CM55,6#,KM50,YM55..TB |
3 | ||
| 66125 - HINGE, TAIL GATE, FEMALE | ||||
| 66112-95703 |
CM55,6#,KM50,YM55..TB |
3 | ||
| 66164 - HANDLE, TAIL GATE LATCH, RH | ||||
| 66163-95700 |
CM5#,6#,KM5#,YM55,60..3SO |
1 | ||
| 66165 - HANDLE, TAIL GATE LATCH, LH | ||||
| 66164-95700 |
CM5#,6#,KM5#,YM55,60..3SO |
1 | ||
| 66166 - CAP, GATE LATCH HANDLE | ||||
| 66165-87402 |
CM50,55,6#,KM5#,YM55,60..3SO..MTM W/O TAIL GATE |
2 | ||
| 66165-87402 |
CM5#,6#,KM5#,YM55,60..3SO |
4 | ||
| 66166 - CAP, GATE LATCH HANDLE | ||||
| 66165-87402 |
CM50,55,6#,KM5#,YM55,60..3SO..MTM W/O TAIL GATE |
2 | ||
| 66165-87402 |
CM5#,6#,KM5#,YM55,60..3SO |
4 | ||
| 66280 - CHAIN ASSY, TAIL GATE, RH | ||||
| 66280-95701 |
CM5#,6#,KM5#,YM55,60..3SO |
1 | ||
| 66280 - CHAIN ASSY, TAIL GATE, RH | ||||
| 66280-95701 |
CM5#,6#,KM5#,YM55,60..3SO |
1 | ||
| 66290 - CHAIN ASSY, TAIL GATE, LH | ||||
| 66280-95701 |
CM5#,6#,KM5#,YM55,60..3SO |
1 | ||
| 66290 - CHAIN ASSY, TAIL GATE, LH | ||||
| 66280-95701 |
CM5#,6#,KM5#,YM55,60..3SO |
1 | ||
| 66315 - HOOK, ROPE | ||||
| 66311-87401 |
CM5#,6#,KM5#,YM55,60..3SO |
3 | ||
| Common parts | ||||
| 90119-08796 | ||||
| 90154-80007 | ||||
| 90179-08068 | ||||
| 90179-08161 | ||||
| 91621-40820 | ||||
| 91651-40616 | ||||
| 93220-18025 | ||||
| 93220-18030 | ||||
| 93230-18025 | ||||
| 93260-18020 | ||||
| 94145-41200 | ||||
| 94180-40800 | ||||
| 94612-11200 | ||||
| 95381-03025 | ||||

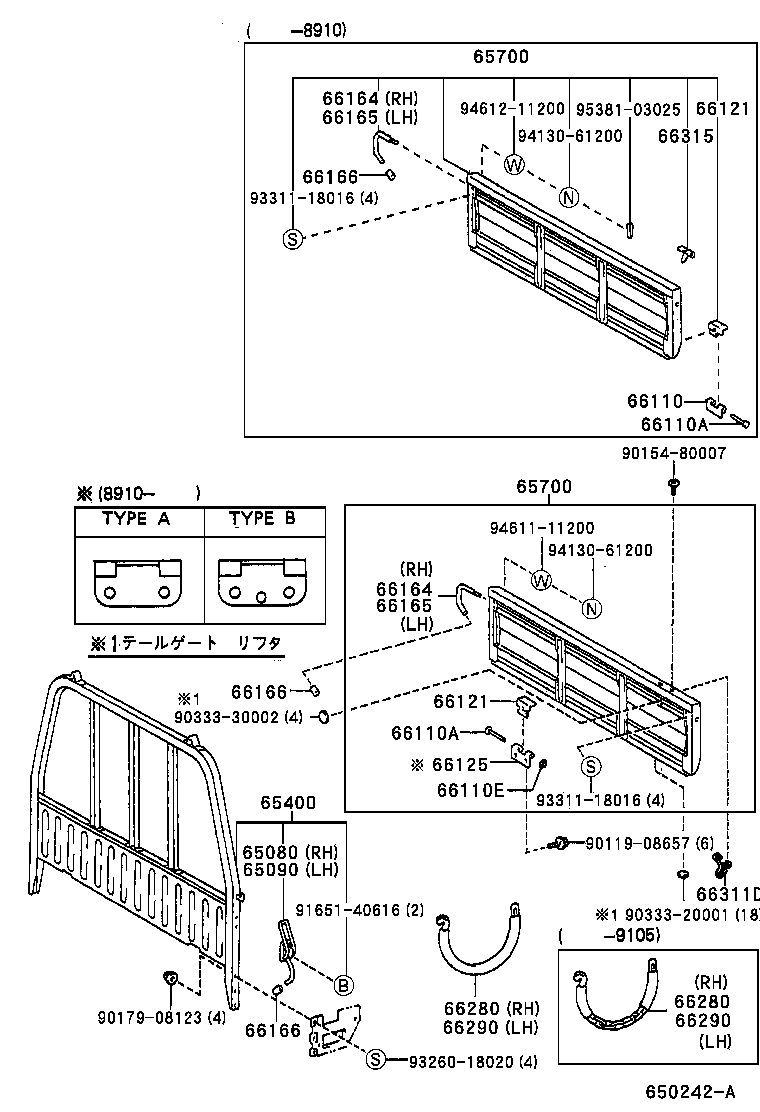

(8610- )JL,SJL..TS..3SO
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65080 - HANDLE ASSY, SIDE GATE LATCK, RH | ||||
| 65080-95700 |
CM5#,6#,KM5#,YM55,60..3SO |
1 | ||
| 65090 - HANDLE ASSY, SIDE GATE LATCH, LH | ||||
| 65090-95700 |
CM5#,6#,KM5#,YM55,60..3SO |
1 | ||
| 65400 - FRAME ASSY, REAR BODY GUARD | ||||
| 65400-95711 |
CM50,51,KM50..JL |
1 | ||
| 65400-95716 |
KM50..TB |
1 | ||
| 65400-95727 |
CM55,KM5#,YM55..TB |
1 | ||
| 65700 - GATE ASSY, REAR BODY TAIL | ||||
| 65700-95707 |
CM55,KM50,YM55..TB |
1 | ||
| 65700-95705 |
CM5#,6#,KM5#,YM55,60..TS..3SO |
1 | ||
| 65700-95708 |
CM55,6#,KM50,YM55..TB |
1 | ||
| 65700 - GATE ASSY, REAR BODY TAIL | ||||
| 65700-95707 |
CM55,KM50,YM55..TB |
1 | ||
| 65700-95705 |
CM5#,6#,KM5#,YM55,60..TS..3SO |
1 | ||
| 65700-95708 |
CM55,6#,KM50,YM55..TB |
1 | ||
| 66110 - HINGE ASSY, TAIL GATE | ||||
| 66112-87402 |
CM5#,6#,KM5#,YM55,60..TS..3SO |
3 | ||
| 66110A - PIN, TAIL GATE HINGE | ||||
| 66113-87402 |
CM5#,6#,KM5#,YM55,60..TS..3SO |
3 | ||
| 66119-95700 |
CM55,6#,KM50,YM55..TB |
3 | ||
| 66110A - PIN, TAIL GATE HINGE | ||||
| 66113-87402 |
CM5#,6#,KM5#,YM55,60..TS..3SO |
3 | ||
| 66119-95700 |
CM55,6#,KM50,YM55..TB |
3 | ||
| 66121 - HINGE, TAIL GATE, MALE | ||||
| 66111-87404 |
CM5#,6#,KM5#,YM55,60..TS..3SO |
3 | ||
| 65535-87401 |
CM55,6#,KM50,YM55..TB |
3 | ||
| 66121 - HINGE, TAIL GATE, MALE | ||||
| 66111-87404 |
CM5#,6#,KM5#,YM55,60..TS..3SO |
3 | ||
| 65535-87401 |
CM55,6#,KM50,YM55..TB |
3 | ||
| 66125 - HINGE, TAIL GATE, FEMALE | ||||
| 66112-95703 |
CM55,6#,KM50,YM55..TB |
3 | ||
| 66164 - HANDLE, TAIL GATE LATCH, RH | ||||
| 66163-95700 |
CM5#,6#,KM5#,YM55,60..3SO |
1 | ||
| 66164 - HANDLE, TAIL GATE LATCH, RH | ||||
| 66163-95700 |
CM5#,6#,KM5#,YM55,60..3SO |
1 | ||
| 66165 - HANDLE, TAIL GATE LATCH, LH | ||||
| 66164-95700 |
CM5#,6#,KM5#,YM55,60..3SO |
1 | ||
| 66165 - HANDLE, TAIL GATE LATCH, LH | ||||
| 66164-95700 |
CM5#,6#,KM5#,YM55,60..3SO |
1 | ||
| 66166 - CAP, GATE LATCH HANDLE | ||||
| 66165-87402 |
CM50,55,6#,KM5#,YM55,60..3SO..MTM W/O TAIL GATE |
2 | ||
| 66165-87402 |
CM5#,6#,KM5#,YM55,60..3SO |
4 | ||
| 66166 - CAP, GATE LATCH HANDLE | ||||
| 66165-87402 |
CM50,55,6#,KM5#,YM55,60..3SO..MTM W/O TAIL GATE |
2 | ||
| 66165-87402 |
CM5#,6#,KM5#,YM55,60..3SO |
4 | ||
| 66166 - CAP, GATE LATCH HANDLE | ||||
| 66165-87402 |
CM50,55,6#,KM5#,YM55,60..3SO..MTM W/O TAIL GATE |
2 | ||
| 66165-87402 |
CM5#,6#,KM5#,YM55,60..3SO |
4 | ||
| 66280 - CHAIN ASSY, TAIL GATE, RH | ||||
| 66280-95701 |
CM5#,6#,KM5#,YM55,60..3SO |
1 | ||
| 66280 - CHAIN ASSY, TAIL GATE, RH | ||||
| 66280-95701 |
CM5#,6#,KM5#,YM55,60..3SO |
1 | ||
| 66290 - CHAIN ASSY, TAIL GATE, LH | ||||
| 66280-95701 |
CM5#,6#,KM5#,YM55,60..3SO |
1 | ||
| 66290 - CHAIN ASSY, TAIL GATE, LH | ||||
| 66280-95701 |
CM5#,6#,KM5#,YM55,60..3SO |
1 | ||
| 66315 - HOOK, ROPE | ||||
| 66311-87401 |
CM5#,6#,KM5#,YM55,60..3SO |
3 | ||
| Common parts | ||||
| 90119-08657 | ||||
| 90154-80007 | ||||
| 90179-08123 | ||||
| 90333-20001 | ||||
| 90333-30002 | ||||
| 91651-40616 | ||||
| 93260-18020 | ||||
| 93311-18016 | ||||
| 94130-61200 | ||||
| 94611-11200 | ||||
| 94612-11200 | ||||
| 95381-03025 | ||||
