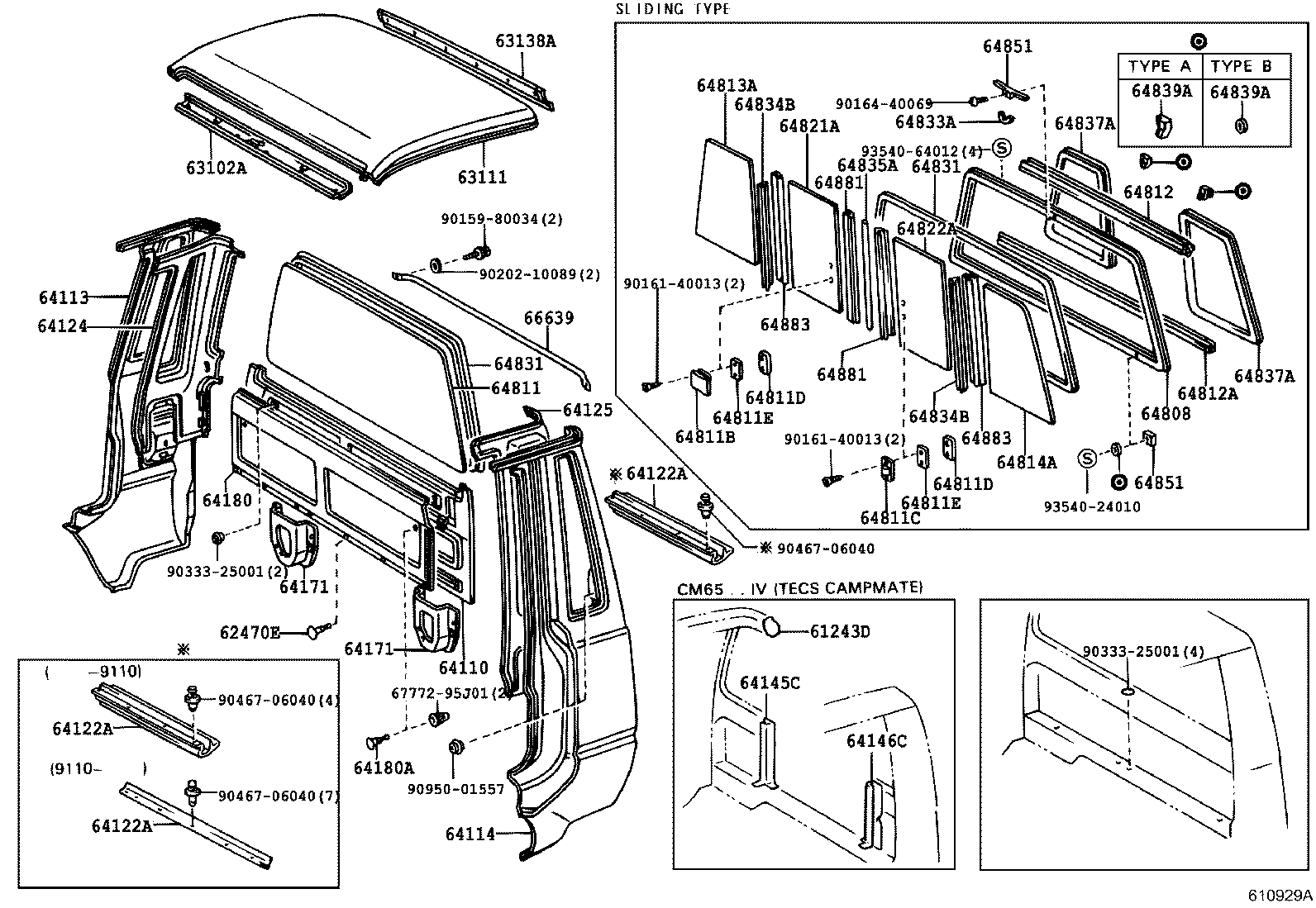

KM50-TBJDS3 (1986)
Toyota Lite/Townace Truck
(8610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-95706 |
CM5#,6#,KM5#,YM55,6#..DX |
1 | ||
| 63102-95707 |
CM5#,6#,KM5#,YM55,60..DX EXTRA |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-95715 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 63138A - REINFORCEMENT, BACK WINDOW, UPPER | ||||
| 63138-95700 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 64110 - PANEL ASSY, FRONT BODY BACK | ||||
| 64100-95701 |
CM5#,6#,KM5#,YM55,6# ﾌﾙ ﾄﾘﾑ |
1 | ||
| 64100-95700 |
CM5#,6#,KM5#,YM55,6#..DX |
1 | ||
| 64113 - PANEL, BACK CORNER, OUTER RH | ||||
| 64103-95700 |
CM5#,6#,KM5#,YM55,60..3SO |
1 | ||
| 64103-95701 |
CM5#,6#,KM5#,YM55,60 |
1 | ||
| 64114 - PANEL, BACK CORNER, OUTER LH | ||||
| 64104-95701 |
CM5#,6#,KM5#,YM55,60 |
1 | ||
| 64104-95700 |
CM5#,6#,KM5#,YM55,60..3SO |
1 | ||
| 64122A - BAFFLE, DUST REAR BODY | ||||
| 64122-95705 |
CM50,51,60,KM5#,YM60 |
1 | ||
| 64122A - BAFFLE, DUST REAR BODY | ||||
| 64122-95705 |
CM50,51,60,KM5#,YM60 |
1 | ||
| 64122A - BAFFLE, DUST REAR BODY | ||||
| 64122-95705 |
CM50,51,60,KM5#,YM60 |
1 | ||
| 64124 - PANEL, BACK CORNER, INSIDE, RH | ||||
| 64015-95701 |
CM5#,6#,KM5#,YM55,6#..DX |
1 | ||
| 64015-95700 |
CM5#,6#,KM5#,YM55,60..DX EXTRA |
1 | ||
| 64125 - PANEL, BACK CORNER, INSIDE, LH | ||||
| 64016-95700 |
CM5#,6#,KM5#,YM55,6#..DX ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 64016-95701 |
CM5#,6#,KM5#,YM55,6#..DX |
1 | ||
| 64171 - BRACKET, CAB REAR MOUNTING | ||||
| 64025-95700 |
CM5#,6#,KM5#,YM55,60 RH |
1 | ||
| 64026-95700 |
CM5#,6#,KM5#,YM55,60 LH |
1 | ||
| 64025-95700 |
CM5#,6#,KM5#,YM55,60 右側 |
1 | ||
| 64171 - BRACKET, CAB REAR MOUNTING | ||||
| 64025-95700 |
CM5#,6#,KM5#,YM55,60 RH |
1 | ||
| 64026-95700 |
CM5#,6#,KM5#,YM55,60 LH |
1 | ||
| 64025-95700 |
CM5#,6#,KM5#,YM55,60 右側 |
1 | ||
| 64180 - SILENCER ASSY, BACK PANEL | ||||
| 64190-9570003 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..(3HC,4H,4HC,5H) GRAY,GRAY |
1 | ||
| 64190-9570003 |
CM5#,6#,KM5#,YM55,60..DX GRAY,TRIM8# |
1 | ||
| 64180A - CLIP(FOR BACK PANEL SILENCER) | ||||
| 90467-0705413 |
KM50;CM5#,6#,KM51,YM55,60..(1SO,3SO)..(3HC,4H,4HC,5H) GRAY,GRAY |
9 | ||
| 90467-0705413 |
CM5#,6#,KM5#,YM55,60..DX GRAY,TRIM8# |
9 | ||
| 64808 - CHANNEL SUB-ASSY, BACK WINDOW SLIDE GLASS | ||||
| 64808-95700 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64811-95700 |
CM5#,6#,KM5#,YM55,6#..DX *TEM,厚さ=4.0 |
1 | ||
| 64811B - LOCK ASSY, BACK WINDOW | ||||
| 69370-89102 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 64811C - CATCH, BACK WINDOW LOCK | ||||
| 69374-89102 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 64811D - RETAINER, BACK WINDOW | ||||
| 69375-89102 |
CM5#,6#,KM5#,YM55,6# |
2 | ||
| 64811D - RETAINER, BACK WINDOW | ||||
| 69375-89102 |
CM5#,6#,KM5#,YM55,6# |
2 | ||
| 64811E - PACKING, BACK WINDOW LOCK | ||||
| 69376-89102 |
CM5#,6#,KM5#,YM55,6# |
2 | ||
| 64811E - PACKING, BACK WINDOW LOCK | ||||
| 69376-89102 |
CM5#,6#,KM5#,YM55,6# |
2 | ||
| 64812 - WEATHERSTRIP, BACK WINDOW GLASS, NO.1 | ||||
| 64812-95700 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 64812A - WEATHERSTRIP, BACK WINDOW GLASS, NO.2 | ||||
| 64832-95700 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 64813A - GLASS, BACK WINDOW CORNER, RH | ||||
| 64813-95700 |
CM5#,6#,KM5#,YM55,6# *TT,厚さ=3.5 |
1 | ||
| 64814A - GLASS, BACK WINDOW CORNER, LH | ||||
| 64814-95700 |
CM5#,6#,KM5#,YM55,60 *TT,厚さ=3.5,*TT,T=3.5 |
1 | ||
| 64821A - GLASS, BACK WINDOW SLIDE, RH | ||||
| 64821-95700 |
CM5#,6#,KM5#,YM55,6# *TT,厚さ=3.5 |
1 | ||
| 64822A - GLASS, BACK WINDOW SLIDE, LH | ||||
| 64822-95700 |
CM5#,6#,KM5#,YM55,6# *TT,厚さ=3.5 |
1 | ||
| 64831 - WEATHERSTRIP, BACK WINDOW GLASS | ||||
| 64831-95700 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 64831 - WEATHERSTRIP, BACK WINDOW GLASS | ||||
| 64831-95700 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 64833A - WEATHERSTRIP, BACK WINDOW CENTER CHANNEL | ||||
| 64833-89109 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 64834B - WEATHERSTRIP, BACK WINDOW GLASS, INNER | ||||
| 64834-95700 |
CM5#,6#,KM5#,YM55,6# |
2 | ||
| 64834B - WEATHERSTRIP, BACK WINDOW GLASS, INNER | ||||
| 64834-95700 |
CM5#,6#,KM5#,YM55,6# |
2 | ||
| 64835A - WEATHERSTRIP, BACK WINDOW GLASS, CENTER | ||||
| 64835-95700 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 64837A - WEATHERSTRIP, BACK WINDOW CORNER | ||||
| 64837-95700 |
CM5#,6#,KM5#,YM55,6# |
2 | ||
| 64837A - WEATHERSTRIP, BACK WINDOW CORNER | ||||
| 64837-95700 |
CM5#,6#,KM5#,YM55,6# |
2 | ||
| 64839A - PACKING, BACK WINDOW | ||||
| 64839-95700 |
CM5#,6#,KM5#,YM55,60 TYPE B |
2 | ||
| 64839-89104 |
CM5#,6#,KM5#,YM55,60 LH,TYPE A |
1 | ||
| 64839-89103 |
CM5#,6#,KM5#,YM55,60 RH,TYPE A |
1 | ||
| 64839A - PACKING, BACK WINDOW | ||||
| 64839-95700 |
CM5#,6#,KM5#,YM55,60 TYPE B |
2 | ||
| 64839-89104 |
CM5#,6#,KM5#,YM55,60 LH,TYPE A |
1 | ||
| 64839-89103 |
CM5#,6#,KM5#,YM55,60 RH,TYPE A |
1 | ||
| 64851 - STOP, BACK WINDOW SLIDE GLASS | ||||
| 64852-95700 |
CM5#,6#,KM5#,YM55,60 LWR |
2 | ||
| 64851-89102 |
CM5#,6#,KM5#,YM55,60 UPR |
1 | ||
| 64851 - STOP, BACK WINDOW SLIDE GLASS | ||||
| 64852-95700 |
CM5#,6#,KM5#,YM55,60 LWR |
2 | ||
| 64851-89102 |
CM5#,6#,KM5#,YM55,60 UPR |
1 | ||
| 64881 - CHANNEL, BACK WINDOW GLASS | ||||
| 64886-95700 |
CM5#,6#,KM5#,YM55,60 LH |
1 | ||
| 64885-95700 |
CM5#,6#,KM5#,YM55,60 RH |
1 | ||
| 64881 - CHANNEL, BACK WINDOW GLASS | ||||
| 64886-95700 |
CM5#,6#,KM5#,YM55,60 LH |
1 | ||
| 64885-95700 |
CM5#,6#,KM5#,YM55,60 RH |
1 | ||
| 64883 - FRAME, BACK WINDOW | ||||
| 64881-95700 |
CM5#,6#,KM5#,YM55,6# |
2 | ||
| 64883 - FRAME, BACK WINDOW | ||||
| 64881-95700 |
CM5#,6#,KM5#,YM55,6# |
2 | ||
| Common parts | ||||
| 67772-95J01 | ||||
| 90159-80034 | ||||
| 90161-40013 | ||||
| 90164-40069 | ||||
| 90202-10089 | ||||
| 90333-25001 | ||||
| 90467-06040 | ||||
| 90950-01557 | ||||
| 93540-24010 | ||||
| 93540-64012 | ||||
