KM50-TBJDS3 (1986)
Toyota Lite/Townace Truck
Production
Oct 1986
-
Aug 1990
Engine
4K
Transmission
4H MTM
Displacement
2500cc
Power
168 HP (125 kW)

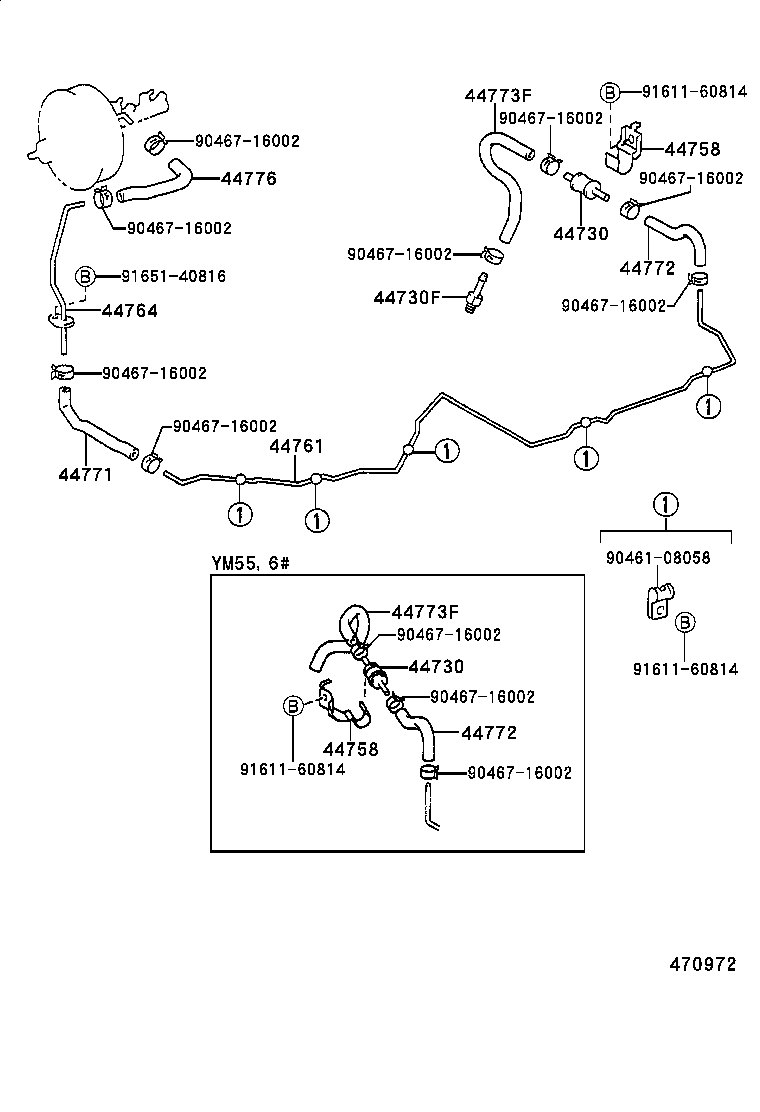

ILLUST NO. 2 OF 2(8610- )KM5#,YM55,6#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-24020 |
KM5#,YM55,6# |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-24020 |
KM5#,YM55,6# |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51031 |
KM5#,YM55,6# |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-27070 |
KM5# |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-27070 |
KM5# |
1 | ||
| 44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR | ||||
| 44761-27140 |
KM5#,YM55,6# |
1 | ||
| 44764 - TUBE, BOOSTER VACUUM | ||||
| 44764-27060 |
KM5#,YM55,6# |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44771-27050 |
KM5#,YM55,6# |
1 | ||
| 44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE | ||||
| 44772-27020 |
KM5# |
1 | ||
| 44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE | ||||
| 44772-27020 |
KM5# |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-27070 |
KM50 |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-27070 |
KM50 |
1 | ||
| 44776 - HOSE, BRAKE BOOSTER | ||||
| 44776-27020 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| Common parts | ||||
| 90461-08058 | ||||
| 90467-16002 | ||||
| 91611-60814 | ||||
| 91651-40816 | ||||

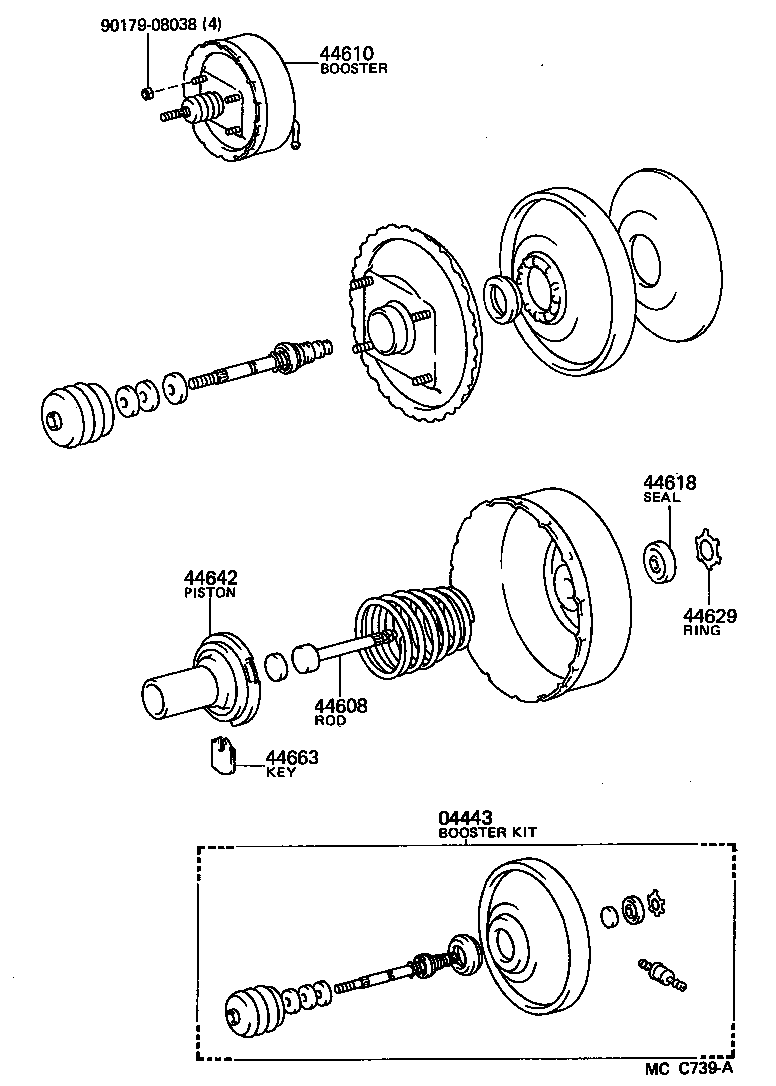

ILLUST NO. 1 OF 2(8610- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-27200 |
KM5#,YM55,60 |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44606-12520 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-27350 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 44610-27240 |
CM5#,6#,KM5#,YM55,60 |
1 | ||
| 44618 - SEAL, BOOSTER BODY | ||||
| 44621-28120 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 44629 - RING, CIRCULAR INTERNAL | ||||
| 44628-28120 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-12520 |
CM5#,6#,KM5#,YM55,6# |
1 | ||
| 44663 - KEY, VALVE STOPPER | ||||
| 44635-28120 |
CM5#,6#,KM5#,YM55,60 |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
