KM50-TBJDS3 (1986)

Toyota Lite/Townace Truck

Production Oct 1986 - Aug 1990
Engine 4K
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8610-9611)

Click highlighted areas on diagram

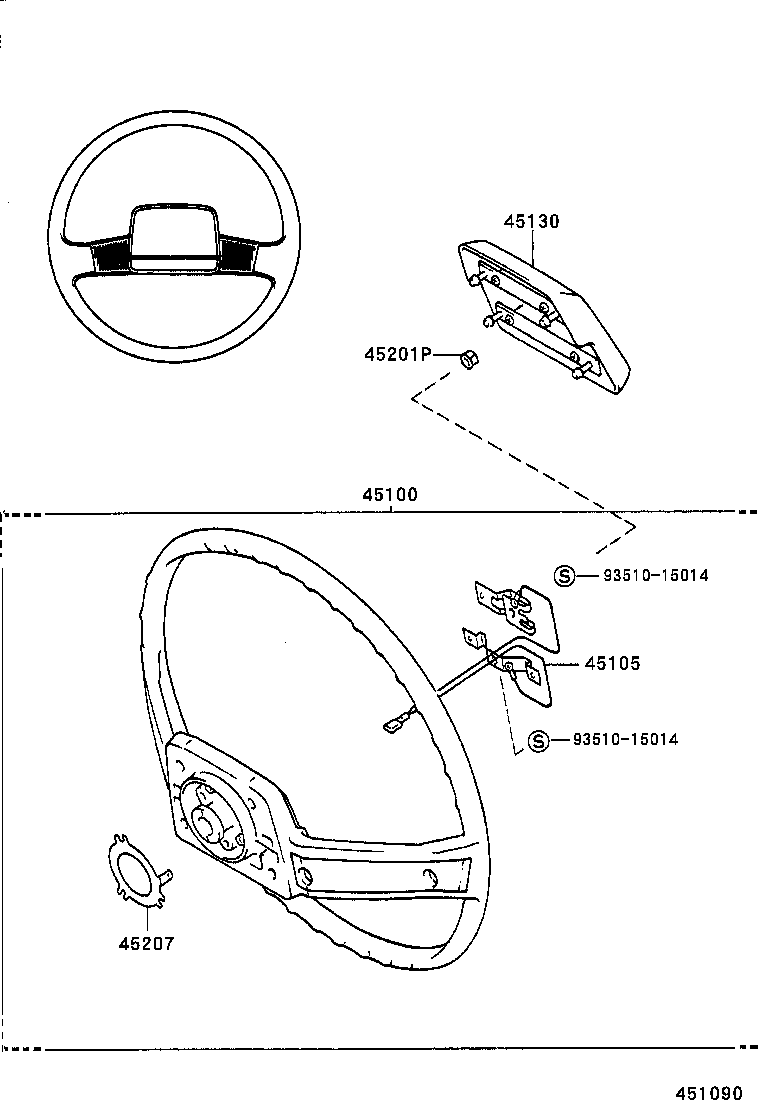

POLYPROPYRENE

diagram 45100 45105 45130 45201P 45207 9351015014 9351015014
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-1027014

CM5#,6#,KM5#,YM55,60..DX

2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,BLUE,TRIM8#

 1
45100-1025014

CM5#,6#,KM5#,YM55,60..DX

2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLUE,TRIM8#

 1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-10020

CM5#,6#,KM5#,YM55,6#

ｳﾚﾀﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ

 1
45105-10010

CM5#,6#,KM5#,YM55,6#..DX

ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲｰﾙ

 1
45130 - BUTTON ASSY, HORN
45130-2702004

CM5#,6#,KM5#,YM55,60..DX

ﾗｲﾄ ｴｰｽ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲｰﾙ,BLUE,TRIM8#

 1
45130-2703004

CM5#,6#,KM5#,YM55,60..DX

ﾗｲﾄ ｴｰｽ,ｳﾚﾀﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲｰﾙ,BLUE,TRIM8#

 1
45130-2707004

CM5#,6#,KM5#,YM55,60..DX

ﾀｳﾝ ｴｰｽ,ｳﾚﾀﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲｰﾙ,BLUE,TRIM8#

 1
45130-2706004

CM5#,6#,KM5#,YM55,60..DX

ﾀｳﾝ ｴｰｽ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲｰﾙ,DEEP BLUE,TRIM8#

 1
45201P - NUT, STEERING WHEEL SET
90179-12086

CM5#,6#,KM5#,YM55,6#

 1
45207 - RING, HORN CONTACT
45176-35020

CM50,51,55,60,65,KM5#,YM55,6#..DX

 1
Common parts
93510-15014

(8610-9611)

Click highlighted areas on diagram

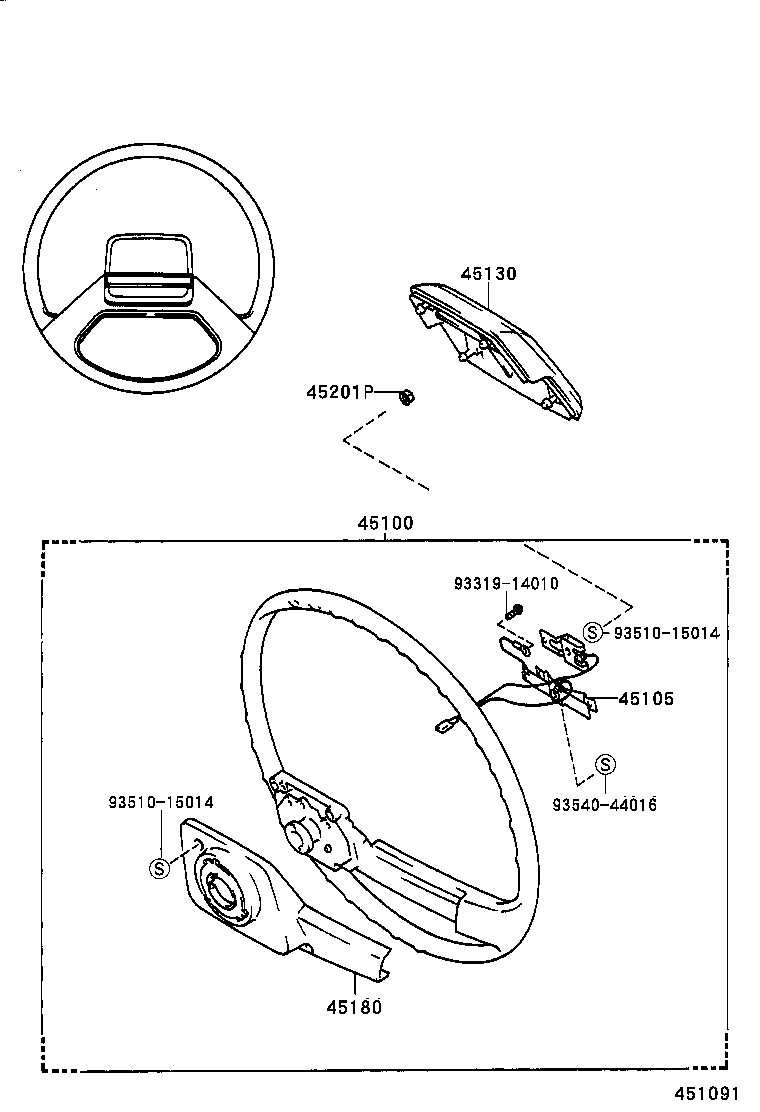

URETHANE

diagram 45100 45105 45130 45180 45201P 9331914010 9351015014 9351015014 9354044016
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-1027014

CM5#,6#,KM5#,YM55,60..DX

2本ｽﾎﾟｰｸ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ,BLUE,TRIM8#

 1
45100-1025014

CM5#,6#,KM5#,YM55,60..DX

2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLUE,TRIM8#

 1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-10020

CM5#,6#,KM5#,YM55,6#

ｳﾚﾀﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ

 1
45105-10010

CM5#,6#,KM5#,YM55,6#..DX

ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲｰﾙ

 1
45130 - BUTTON ASSY, HORN
45130-2702004

CM5#,6#,KM5#,YM55,60..DX

ﾗｲﾄ ｴｰｽ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲｰﾙ,BLUE,TRIM8#

 1
45130-2703004

CM5#,6#,KM5#,YM55,60..DX

ﾗｲﾄ ｴｰｽ,ｳﾚﾀﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲｰﾙ,BLUE,TRIM8#

 1
45130-2707004

CM5#,6#,KM5#,YM55,60..DX

ﾀｳﾝ ｴｰｽ,ｳﾚﾀﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲｰﾙ,BLUE,TRIM8#

 1
45130-2706004

CM5#,6#,KM5#,YM55,60..DX

ﾀｳﾝ ｴｰｽ,ﾎﾟﾘﾌﾟﾛﾋﾟﾚﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲｰﾙ,DEEP BLUE,TRIM8#

 1
45180 - COVER SUB-ASSY, STEERING WHEEL
45180-1601014

CM5#,6#,KM5#,YM55,60..DX

ｳﾚﾀﾝ ｽﾃｱﾘﾝｸﾞ ﾎｲ-ﾙ,BLUE,TRIM8#

 1
45201P - NUT, STEERING WHEEL SET
90179-12086

CM5#,6#,KM5#,YM55,6#

 1
Common parts
93319-14010
93510-15014
93540-44016
