KM50-TBJDS3 (1986)
Toyota Lite/Townace Truck
Production
Oct 1986
-
Aug 1990
Engine
4K
Transmission
4H MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8610-9008)KM5#..4H

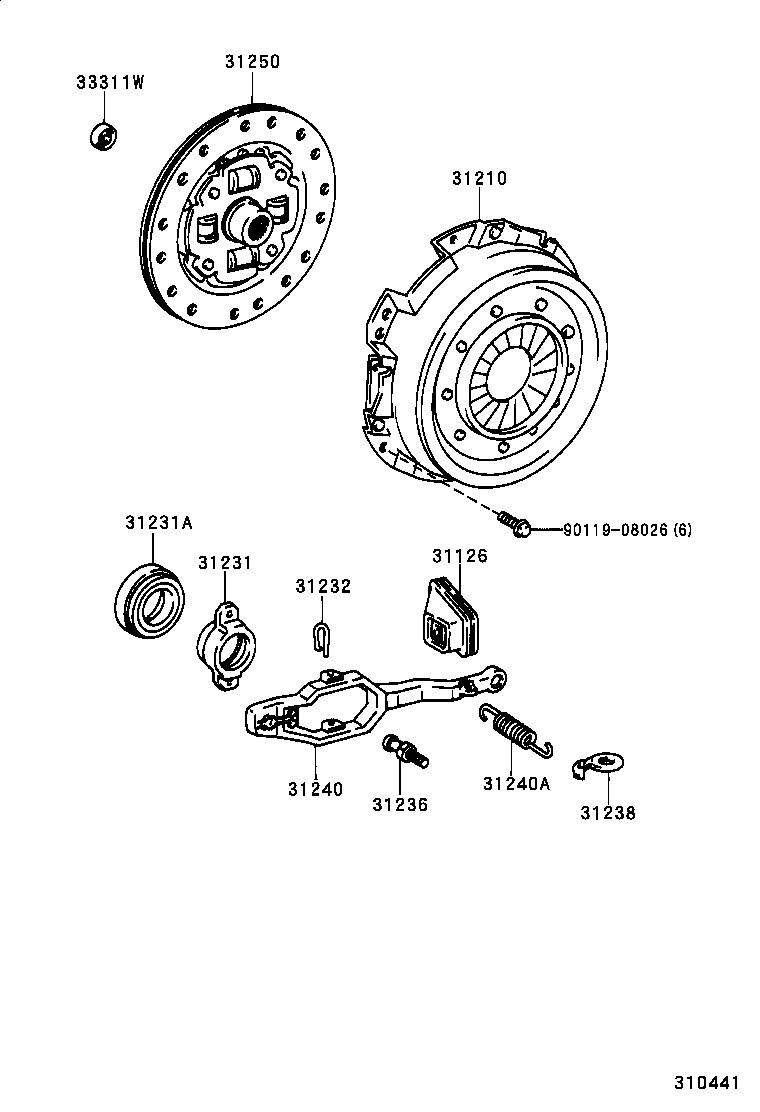

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31126 - BOOT, CLUTCH RELEASE FORK | ||||
| 31126-27020 |
KM5#..4H |
1 | ||
| 31210 - COVER ASSY, CLUTCH | ||||
| 31210-27010 |
KM5#..MTM |
1 | ||
| 31231 - HUB, CLUTCH RELEASE BEARING | ||||
| 31231-27030 |
KM5#..4H |
1 | ||
| 31231A - BEARING, BALL(FOR CLUTCH RELEASE HUB) | ||||
| 90363-40022 |
KM5#..4H |
1 | ||
| 90363-40022 |
CM50,55,6#,KM5#,YM55,60..MTM |
1 | ||
| 31232 - CLIP OR SPRING, RELEASE BEARING HUB | ||||
| 31232-30020 |
KM5#..4H |
2 | ||
| 31236 - BALL, RELEASE FORK | ||||
| 31236-30060 |
CM5#,6#,KM5#,YM55,6#..MTM |
1 | ||
| 31238 - HANGER, RELEASE FORK RETRACTING SPRING | ||||
| 31238-27010 |
KM5#..4H |
1 | ||
| 31240 - FORK ASSY, CLUTCH RELEASE | ||||
| 31204-27011 |
KM5#..4H |
1 | ||
| 31240A - SPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN) | ||||
| 90506-18311 |
KM5#..4H |
1 | ||
| 31250 - DISC ASSY, CLUTCH | ||||
| 31250-27025 |
KM50 |
1 | ||
| 33311W - BEARING (FOR INPUT SHAFT) | ||||
| 90363-12003 |
KM5#..MTM |
1 | ||
| Common parts | ||||
| 90119-08026 | ||||
