KM50-TBJDS3 (1986)

Toyota Lite/Townace Truck

Production Oct 1986 - Aug 1990
Engine 4K
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8610- )4K,5K

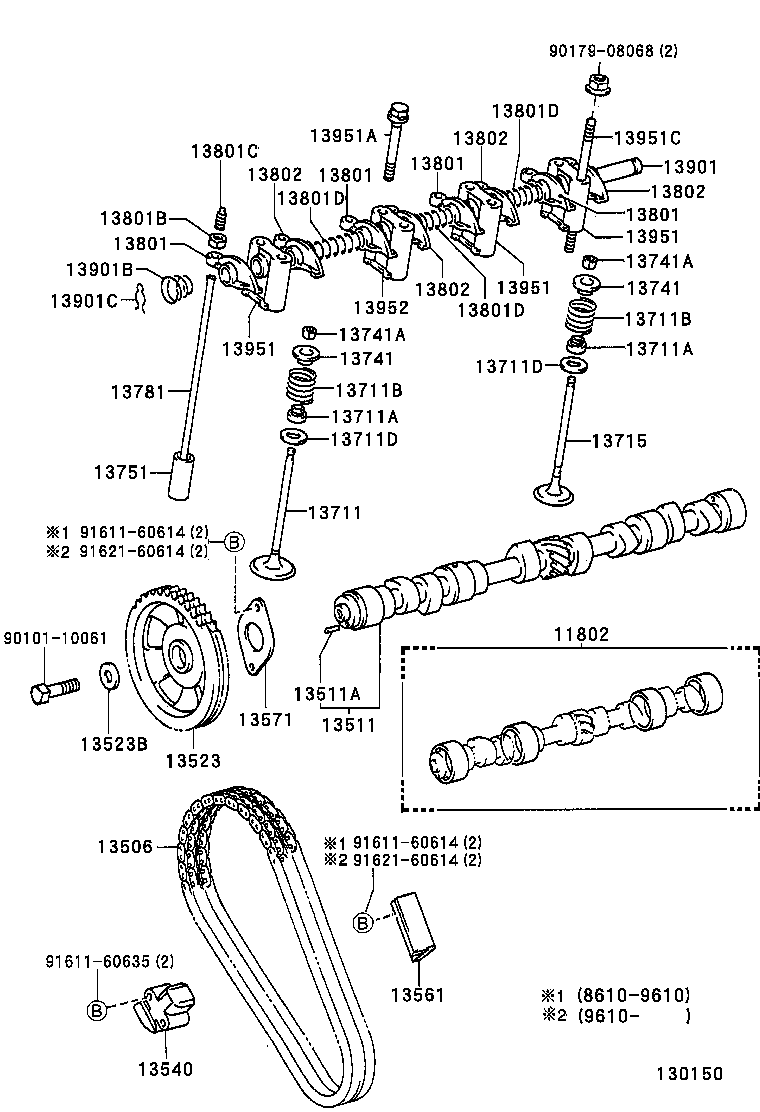

Click highlighted areas on diagram

diagram 11802 13506 13511 13511A 13523 13523B 13540 13561 13571 13711 13711A 13711A 13711B 13711B 13711D 13711D 13715 13741 13741 13741A 13741A 13751 13781 13801 13801 13801 13801 13801B 13801C 13801D 13801D 13801D 13802 13802 13802 13802 13901 13901B 13901C 13951 13951 13951 13951A 13951C 13952 9010110061 9017908068 9161160614 9161160614 9161160635 9162160614 9162160614
Part # Description Qty Price
11802 - BEARING SET, CAMSHAFT
11804-22011

4K,5K..KM5#

U/S 0.25

 1
11802-22011

4K,5K..KM5#

STD

 1
11803-22011

4K,5K..KM5#

U/S 0.125

 1
13506 - CHAIN SUB-ASSY
13506-13021

4K,5K..KM5#

 1
13511 - CAMSHAFT
13501-13010

4K..KM50

 1
13501-13011

4K..KM50

 1
13511A - PIN, STRAIGHT(FOR CAMSHAFT KNOCK)
90250-05121

4K,5K..KM5#

長さ=15,外径=5

 1
13523 - GEAR OR SPROCKET, CAMSHAFT TIMING
13523-13030

4K,5K..KM5#

 1
13523B - WASHER, PLATE(FOR TIMING GEAR)
90201-10489

4K,5K..KM5#

 1
13540 - TENSIONER ASSY, CHAIN, NO.1
13540-13011

4K,5K..KM5#

 1
13561 - DAMPER, CHAIN VIBRATION, NO.1
13561-13020

4K,5K..KM5#

 1
13571 - PLATE, CAMSHAFT THRUST
13571-13010

4K,5K..KM5#

 1
13711 - VALVE, INTAKE
13711-24011

4K,5K..KM5#

 4
13711A - SEAL OR RING, O(FOR VALVE STEM OIL)
90913-02057

4K,5K..KM5#

 8
13711A - SEAL OR RING, O(FOR VALVE STEM OIL)
90913-02057

4K,5K..KM5#

 8
13711B - SPRING, COMPRESSION(FOR INNER)
90501-42293

4K..KM50

 8
13711B - SPRING, COMPRESSION(FOR INNER)
90501-42293

4K..KM50

 8
13711D - WASHER, PLATE(FOR VALVE SPRING SEAT)
90201-16002

4K,5K..KM5#

 8
13711D - WASHER, PLATE(FOR VALVE SPRING SEAT)
90201-16002

4K,5K..KM5#

 8
13715 - VALVE, EXHAUST
13715-24013

4K,5K..KM5#

 4
13741 - RETAINER, VALVE SPRING
13741-24020

4K,5K..KM5#

 8
13741 - RETAINER, VALVE SPRING
13741-24020

4K,5K..KM5#

 8
13741A - LOCK, VALVE SPRING RETAINER
90913-03005

4K,5K..KM5#

 16
13741A - LOCK, VALVE SPRING RETAINER
90913-03005

4K,5K..KM5#

 16
13751 - LIFTER, VALVE
13751-22014

4K..KM50

ｽﾀﾝﾀﾞｰﾄﾞ

 8
13755-22014

4K..KM50

O/S 0.05

 8
13781 - ROD, VALVE PUSH
13781-13020

4K..KM50

 8
13781-13010

4K..KM50

 8
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-22011

4K..KM50

 4
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-22011

4K..KM50

 4
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-22011

4K..KM50

 4
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-22011

4K..KM50

 4
13801B - NUT, HEXAGON(FOR VALVE ADJUSTING)
90170-08005

4K..KM50

 8
13801C - SCREW, VALVE ADJUSTING
90913-05020

4K..KM50

 8
13801D - SPRING, COMPRESSION(FOR ROCKER ARM)
90501-14064

4K,5K..KM5#

 3
13801D - SPRING, COMPRESSION(FOR ROCKER ARM)
90501-14064

4K,5K..KM5#

 3
13801D - SPRING, COMPRESSION(FOR ROCKER ARM)
90501-14064

4K,5K..KM5#

 3
13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2
13812-22011

4K..KM50

 4
13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2
13812-22011

4K..KM50

 4
13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2
13812-22011

4K..KM50

 4
13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2
13812-22011

4K..KM50

 4
13901 - SHAFT SUB-ASSY, VALVE ROCKER, NO.1
13901-22011

4K,5K..KM5#

 1
13901B - SPRING, CONICAL(FOR VALVE ROCKER SHAFT)
90502-14022

4K,5K..KM5#

 2
13901C - SPRING, RETAINER(FOR VALVE ROCKER SHAFT)
90524-13009

4K,5K..KM5#

 2
13951 - SUPPORT, VALVE ROCKER, NO.1
13952-24012

4K,5K..KM5#

 3
13951 - SUPPORT, VALVE ROCKER, NO.1
13952-24012

4K,5K..KM5#

 3
13951 - SUPPORT, VALVE ROCKER, NO.1
13952-24012

4K,5K..KM5#

 3
13951A - BOLT(FOR ROCKER SUPPORT SET)
90105-08028

4K,5K..KM5#

*8-1.25PX53-15

 6
90105-08028

4K,5K..KM5#

 6
13951C - BOLT, STUD(FOR ROCKER SUPPORT)
90116-08082

4K,5K..KM5#

L=100,S=10&54

 2
90116-08082

4K,5K..KM5#

 2
13952 - SUPPORT, VALVE ROCKER, NO.2
13952-24012

4K,5K..KM5#

 1
Common parts
90101-10061
90179-08068
91611-60614
91611-60635
91621-60614
