KM50-TBJDS (1986)
Toyota Lite/Townace Truck
Production
Oct 1986
-
Aug 1990
Engine
4K
Transmission
4H MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8701-9008)4K..3SO..CBU

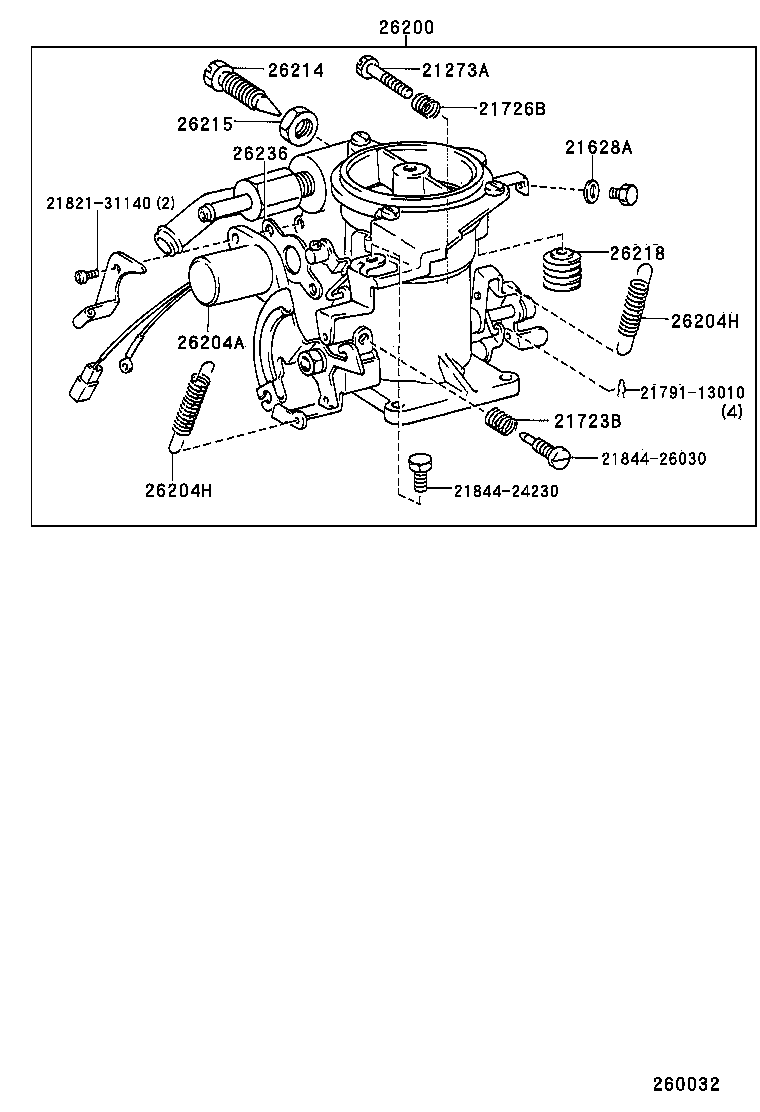

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 21273A - SCREW, THROTTLE | ||||
| 21273-22011 |
4K..KM50..3SO..CBU LPG |
1 | ||
| 21273-22011 |
4K..KM50..3SO..CBU |
1 | ||
| 21628A - PACKING, SCREW | ||||
| 21628-30010 |
4K..KM50..3SO..CBU |
1 | ||
| 21628-30010 |
4K..KM50..3SO..CBU LPG |
1 | ||
| 21723B - SCREW SPRING | ||||
| 21723-21030 |
4K..KM50..3SO..CBU |
1 | ||
| 21723-21030 |
4K..KM50..3SO..CBU LPG |
1 | ||
| 21726B - SPRING | ||||
| 21726-40010 |
4K..KM50..3SO..CBU LPG |
1 | ||
| 21726-40010 |
4K..KM50..3SO..CBU |
1 | ||
| 26200 - CARBURETOR ASSY, LPG | ||||
| 26200-13010 |
4K..KM50..3SO..CBU |
1 | ||
| 26200-13010 |
4K..KM50..3SO..CBU LPG |
1 | ||
| 26204A - VALVE, THROTTLE SOLENOID(FOR LPG) | ||||
| 26208-41030 |
4K..KM50..3SO..CBU LPG |
1 | ||
| 26208-41030 |
4K..KM50..3SO..CBU |
1 | ||
| 26204H - SPRING, THROTTLE RETURN(FOR LPG) | ||||
| 26248-44060 |
4K..KM50..3SO..CBU LPG |
2 | ||
| 26248-44060 |
4K..KM50..3SO..CBU |
2 | ||
| 26204H - SPRING, THROTTLE RETURN(FOR LPG) | ||||
| 26248-44060 |
4K..KM50..3SO..CBU LPG |
2 | ||
| 26248-44060 |
4K..KM50..3SO..CBU |
2 | ||
| 26214 - SCREW, POWER ADJUST | ||||
| 26214-40010 |
4K..KM50..3SO..CBU LPG |
1 | ||
| 26214-40010 |
4K..KM50..3SO..CBU |
1 | ||
| 26215 - NUT, POWER ADJUST | ||||
| 26215-40010 |
4K..KM50..3SO..CBU LPG |
1 | ||
| 26215-40010 |
4K..KM50..3SO..CBU |
1 | ||
| 26218 - BOOT(FOR POWER VALVE) | ||||
| 26218-31010 |
4K..KM50..3SO..CBU LPG |
1 | ||
| 26218-31010 |
4K..KM50..3SO..CBU |
1 | ||
| 26236 - GASKET, AIR HORN | ||||
| 26236-44020 |
4K..KM50..3SO..CBU |
1 | ||
| 26236-44020 |
4K..KM50..3SO..CBU LPG |
1 | ||
| Common parts | ||||
| 21791-13010 | ||||
| 21821-31140 | ||||
| 21844-24230 | ||||
| 21844-26030 | ||||
