KM21V-JNZFT (1982)

Toyota Lite/Townace Truck

Production Oct 1982 - Aug 1985
Engine 4KJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8210-8508)S

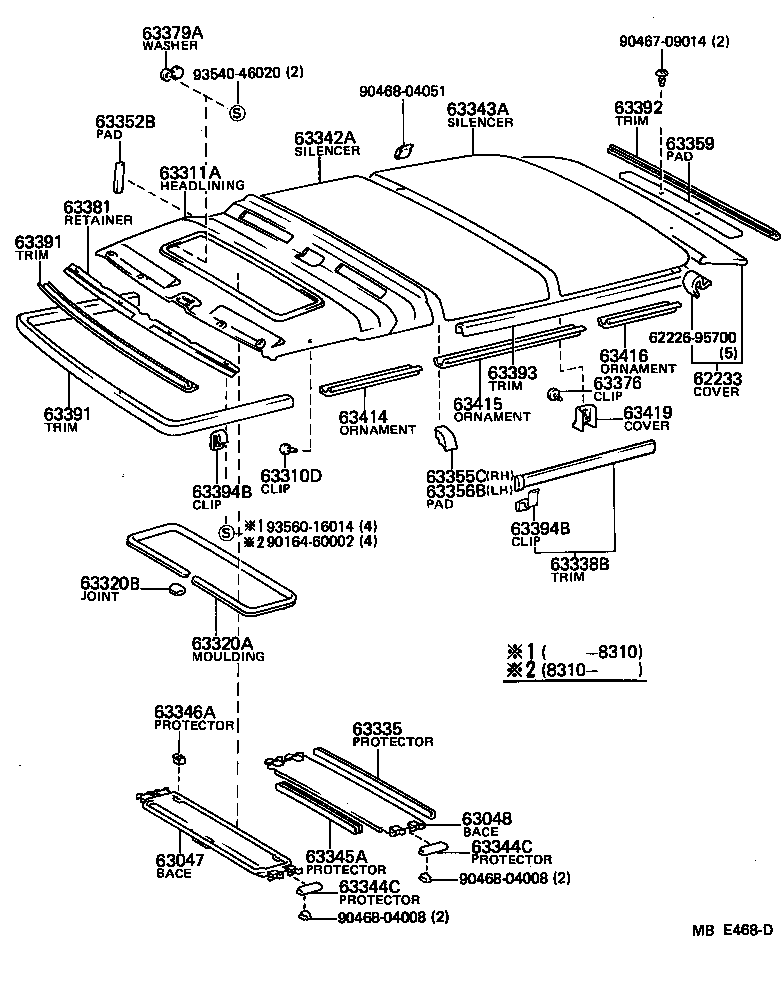

Click highlighted areas on diagram

diagram 6222695700 62233 63047 63048 63310D 63311A 63320A 63320B 63335 63338B 63342A 63343A 63344C 63344C 63345A 63346A 63352B 63355C 63356B 63359 63376 63379A 63381 63391 63391 63392 63393 63394B 63394B 63414 63415 63416 63419 9016460002 9046709014 9046804008 9046804008 9046804051 9354046020 9356016014
Part # Description Qty Price
63342A - SILENCER, ROOF, NO.2
63342-9571908

CM20,KM21,YM20..HRF..VSG

IVORY,IVORY

 1
63343A - SILENCER, ROOF, NO.3
63343-9571808

CM20,KM21,YM20..HRF..VSG

IVORY,IVORY

 1
63391 - TRIM, ROOF HEADLINING, FRONT
63391-9570508

CM20,KM21,YM20..HRF..VSG

L=2050,IVORY,IVORY

 1
63391 - TRIM, ROOF HEADLINING, FRONT
63391-9570508

CM20,KM21,YM20..HRF..VSG

L=2050,IVORY,IVORY

 1
63392 - TRIM, ROOF HEADLINING, REAR
63392-9570308

CM20,KM21,YM20..HRF..VSG

IVORY,IVORY

 1
63393 - TRIM, ROOF HEADLINING, CENTER
63391-9570508

CM20,KM21,YM20..HRF..VSG

IVORY,IVORY

 2
63394B - CLIP(FOR ROOF HEADLINING TRIM GARNISH)
63395-95701

CM20,KM2#,TM20,YM20,21..(HRF,MRF)..(DLX,S,STD,SUP,SW,XL)

 4
63394B - CLIP(FOR ROOF HEADLINING TRIM GARNISH)
63395-95701

CM20,KM2#,TM20,YM20,21..(HRF,MRF)..(DLX,S,STD,SUP,SW,XL)

 4
63414 - ORNAMENT, ROOF SIDE, NO.1
62431-9570008

CM20,KM21,YM20..V..HRF

RH,IVORY,IVORY

 1
62432-9570008

CM20,KM21,YM20..V..HRF

LH,IVORY,IVORY

 1
63415 - ORNAMENT, ROOF SIDE, NO.2
63432-9570008

CM20,KM21,YM20..V..HRF

IVORY,IVORY

 2
63416 - ORNAMENT, ROOF SIDE, NO.3
63433-9570008

CM20,KM21,YM20..V..HRF

IVORY,IVORY

 2
Common parts
62226-95700
90164-60002
90467-09014
90468-04008
90468-04051
93540-46020
93560-16014
