KM21V-JNZF (1982)

Toyota Lite/Townace Truck

Production Oct 1982 - Aug 1985
Engine 4KJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8210- )4KJ

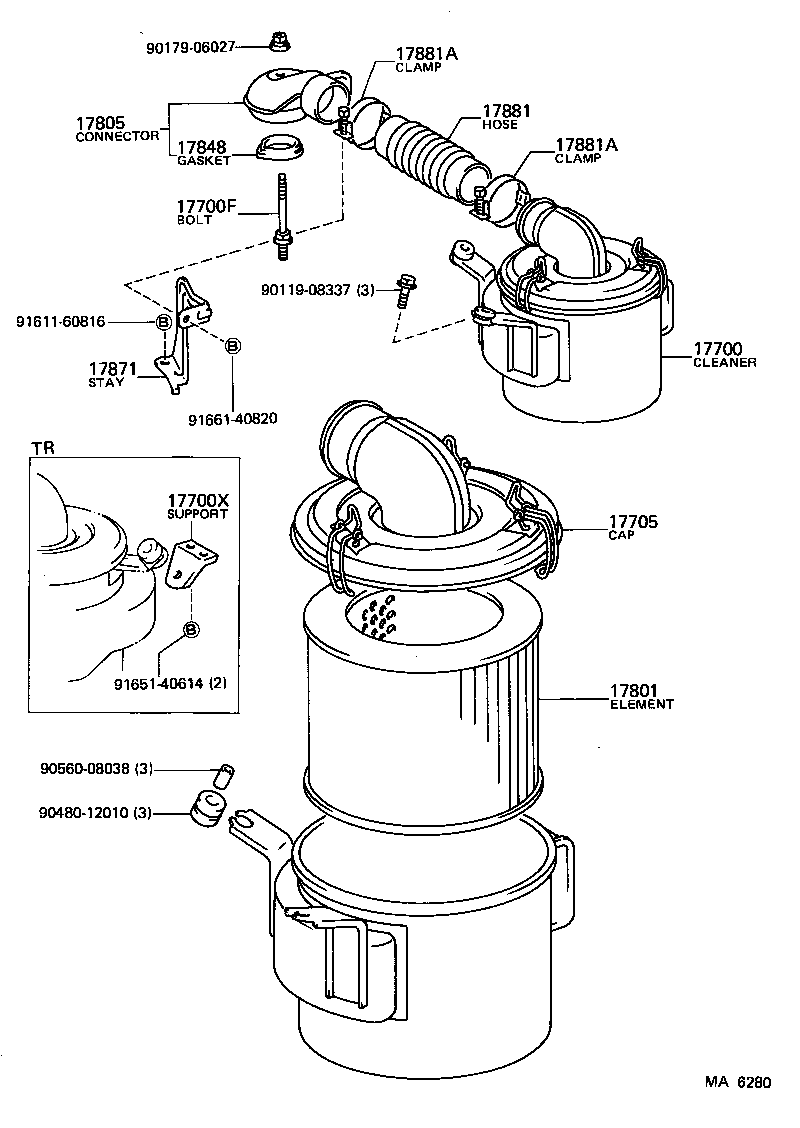

Click highlighted areas on diagram

diagram 17700 17700F 17700X 17705 17801 17805 17848 17871 17881 17881A 17881A 9011908337 9017906027 9048012010 9056008038 9161160816 9165140614 9166140820
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-13380

4KJ..KM21..V

 1
17700-13470

4KJ..KM21..V

W/HOT AIR INTAKE

 1
17700F - BOLT, STUD(FOR AIR CLEANER SETTING)
90116-06222

4KJ..KM2#

L=80,S=12&28

 1
17871 - STAY, AIR CONNECTOR
17871-13010

4KJ..KM2#

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-13090

4KJ..KM21..V

 1
Common parts
90119-08337
90179-06027
90480-12010
90560-08038
91611-60816
91651-40614
91661-40820

(8210- )4KJ

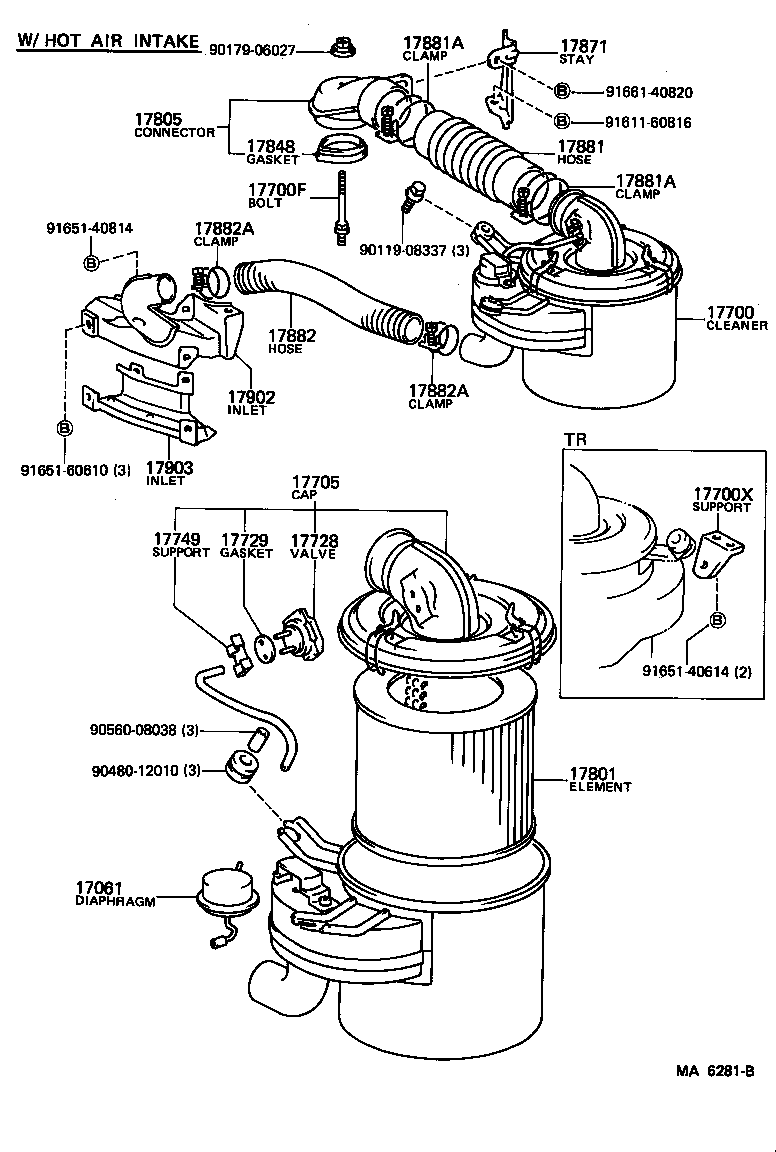

Click highlighted areas on diagram

diagram 17061 17700 17700F 17700X 17705 17728 17729 17749 17801 17805 17848 17871 17881 17881A 17881A 17882 17882A 17882A 17902 17903 9011908337 9017906027 9048012010 9056008038 9161160816 9165140614 9165140814 9165160610 9166140820
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-13380

4KJ..KM21..V

 1
17700-13470

4KJ..KM21..V

W/HOT AIR INTAKE

 1
17700F - BOLT, STUD(FOR AIR CLEANER SETTING)
90116-06222

4KJ..KM2#

L=80,S=12&28

 1
17871 - STAY, AIR CONNECTOR
17871-13010

4KJ..KM2#

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-13090

4KJ..KM21..V

 1
17882 - HOSE, AIR CLEANER, NO.2
17882-44060

4KJ..KM21..V

COLD SPEC

 1
17881-23020

4KJ..KM21..V

COLD SPEC

 1
Common parts
90119-08337
90179-06027
90480-12010
90560-08038
91611-60816
91651-40614
91651-40814
91651-60610
91661-40820
