KM21V-JNZF (1982)

Toyota Lite/Townace Truck

Production Oct 1982 - Aug 1985
Engine 4KJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8210- )4KJ

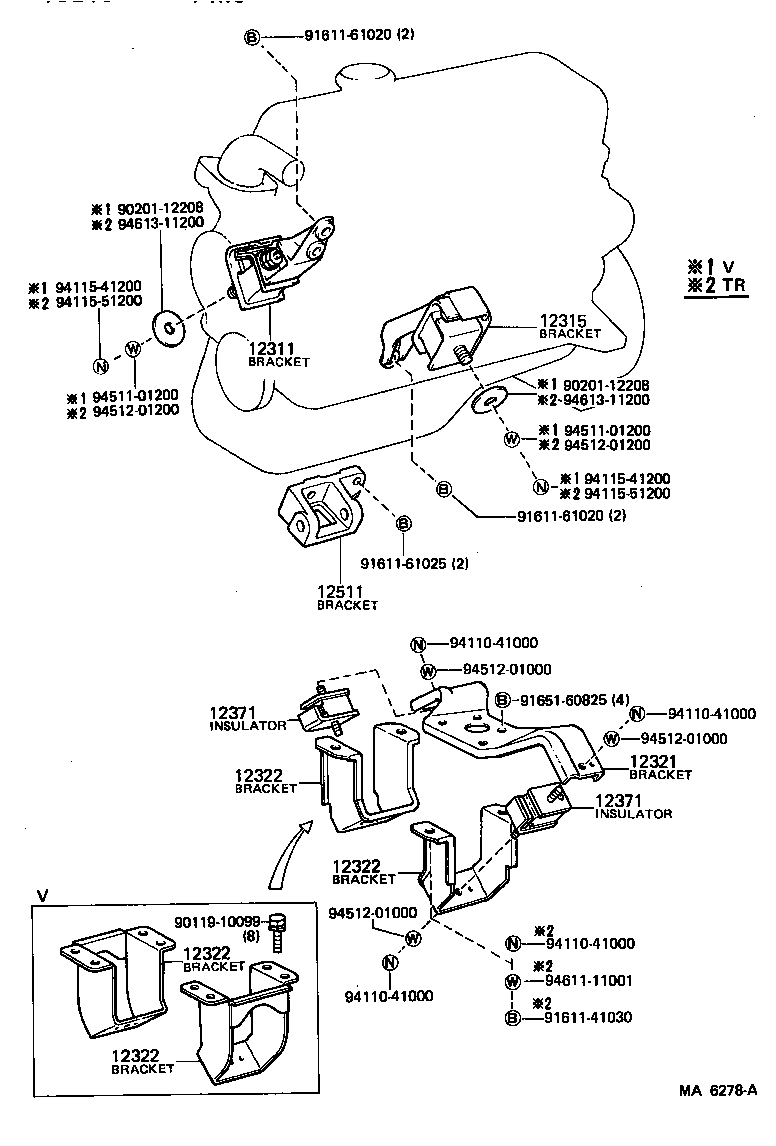

Click highlighted areas on diagram

diagram 12311 12315 12321 12322 12322 12322 12322 12371 12371 12511 9011910099 9020112208 9020112208 9161141030 9161161020 9161161020 9161161025 9165160825 9411041000 9411041000 9411041000 9411041000 9411541200 9411541200 9411551200 9411551200 9451101200 9451101200 9451201000 9451201000 9451201000 9451201200 9451201200 9461111001 9461311200 9461311200
Part # Description Qty Price
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12302-13090

4KJ..KM21

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-13010

4KJ..KM2#

 1
12322 - BRACKET, ENGINE MOUNTING, REAR NO.2
12322-13040

4KJ..KM21..V

 2
12322 - BRACKET, ENGINE MOUNTING, REAR NO.2
12322-13040

4KJ..KM21..V

 2
12322 - BRACKET, ENGINE MOUNTING, REAR NO.2
12322-13040

4KJ..KM21..V

 2
12322 - BRACKET, ENGINE MOUNTING, REAR NO.2
12322-13040

4KJ..KM21..V

 2
12511 - BRACKET, ALTERNATOR, NO.1
12511-24011

4KJ..KM2#

40A ALTERNATOR

 1
Common parts
90119-10099
90201-12208
91611-41030
91611-61020
91611-61025
91651-60825
94110-41000
94115-41200
94115-51200
94511-01200
94512-01000
94512-01200
94611-11001
94613-11200
