KM21V-JNZ (1982)
Toyota Lite/Townace Truck
Production
Oct 1982
-
Aug 1985
Engine
4KJ
Transmission
4H MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8210- )DLX,STD,SUP,SW

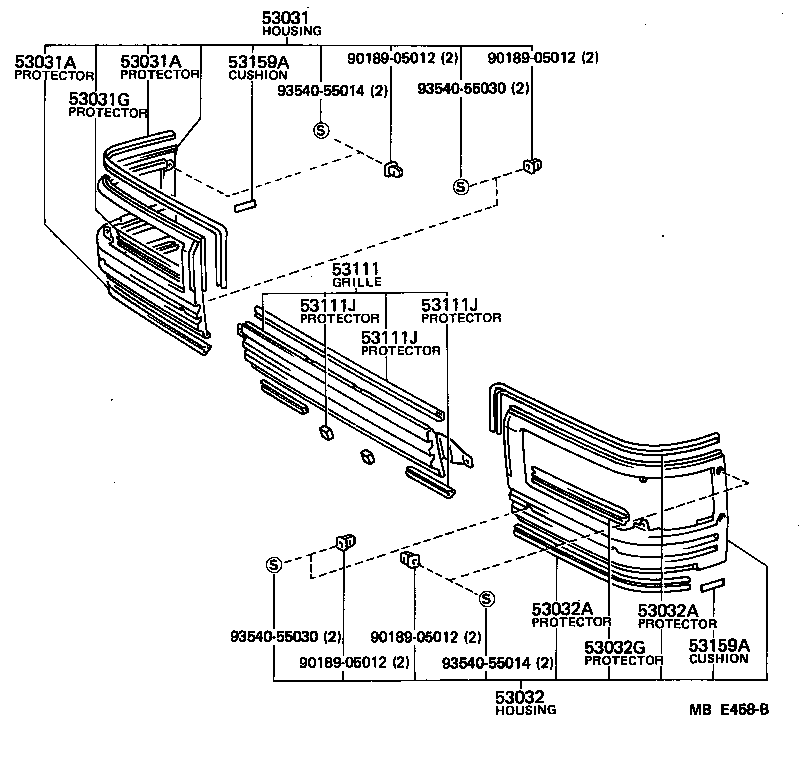

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53031 - HOUSING, HEADLAMP, RH | ||||
| 53130-29135 |
KM21,YM20..SUP |
1 | ||
| 53031 - HOUSING, HEADLAMP, RH | ||||
| 53130-29135 |
KM21,YM20..SUP |
1 | ||
| 53032 - HOUSING, HEADLAMP, LH | ||||
| 53140-29135 |
KM21,YM20..SUP |
1 | ||
| 53032 - HOUSING, HEADLAMP, LH | ||||
| 53140-29135 |
KM21,YM20..SUP |
1 | ||
| Common parts | ||||
| 90189-04014 | ||||
| 90189-05012 | ||||
| 93540-55014 | ||||
| 93540-55030 | ||||
(8210-8508)CS7,FXV,GXL,MTP,S,XL

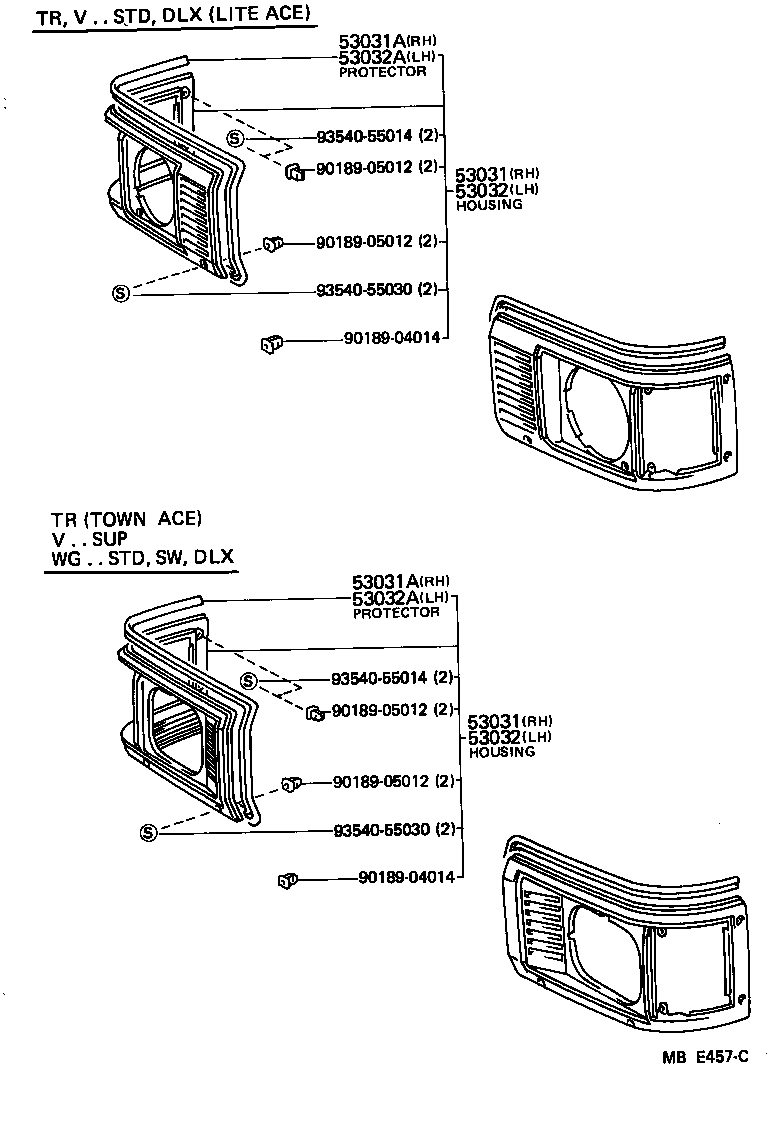

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53031 - HOUSING, HEADLAMP, RH | ||||
| 53130-29135 |
KM21,YM20..SUP |
1 | ||
| 53032 - HOUSING, HEADLAMP, LH | ||||
| 53140-29135 |
KM21,YM20..SUP |
1 | ||
| Common parts | ||||
| 90189-05012 | ||||
| 93540-55014 | ||||
| 93540-55030 | ||||
