KM21V-JDZT (1982)

Toyota Lite/Townace Truck

Production Oct 1982 - Aug 1985
Engine 4KJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

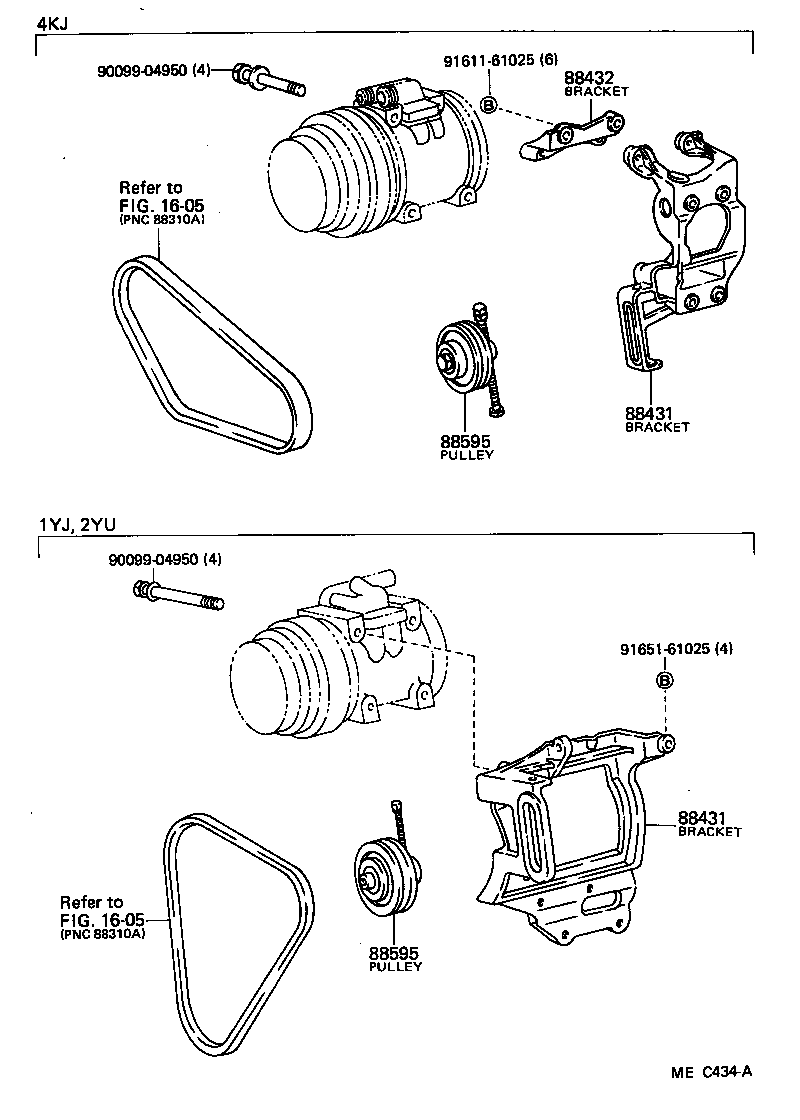

ILLUST NO. 2 OF 2(8210- )DLX,FXV,GXL,MTP,S,SUP,SW,XL

Click highlighted areas on diagram

diagram 1605 1605 88431 88431 88432 88595 88595 9009904950 9009904950 9161161025 9165161025
Part # Description Qty Price
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-28060

KM21..DLX,SUP

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-28060

KM21..DLX,SUP

 1
88432 - BRACKET, COMPRESSOR MOUNTING, NO.2
88437-28020

KM21..DLX,SUP

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-28040

KM21..DLX,SUP

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-28040

KM21..DLX,SUP

 1
Common parts
90099-04950
91611-61025
91651-61025
Linked diagrams
1605

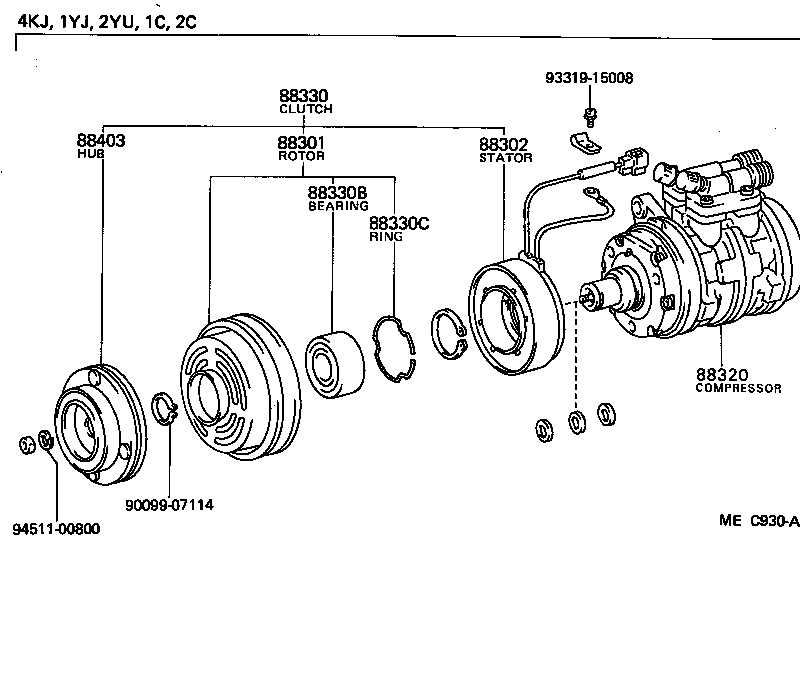

ILLUST NO. 1 OF 2(8210- )

Click highlighted areas on diagram

diagram 88301 88302 88320 88330 88330B 88330C 88403 9009907114 9331915008 9451100800
Part # Description Qty Price
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-14030

KM21..DLX,SUP

 1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-14060

KM21..DLX,SUP

 1
88320 - COMPRESSOR ASSY, COOLER
88320-27040

YM20,21..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

 1
88320-28050

KM21..DLX,SUP

 1
88330 - CLUTCH ASSY, MAGNET
88410-14110

KM21..DLX,SUP

 1
88330B - BEARING, MAGNET CLUTCH
90099-10135

KM21..DLX,SUP

 1
88330C - RING, SNAP (FOR MAGNET CLUTCH)
90099-07114

KM21,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

 1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-14040

KM21..DLX,SUP

 1
Common parts
90099-07114
93319-15008
94511-00800

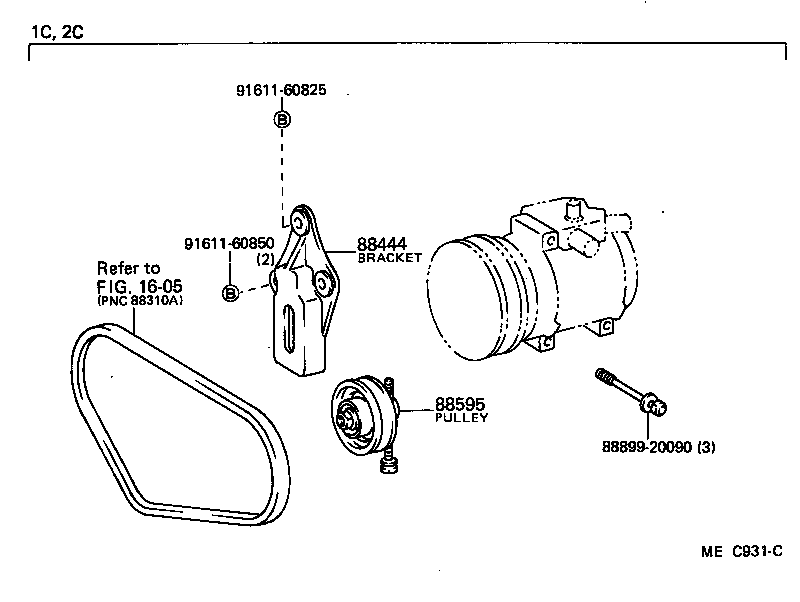

ILLUST NO. 2 OF 2(8210- )

Click highlighted areas on diagram

diagram 1605 88444 88595 8889920090 9161160825 9161160850
Part # Description Qty Price
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-28040

KM21..DLX,SUP

 1
Common parts
88899-20090
91611-60825
91611-60850
Linked diagrams
1605
