KM21V-JDZFT (1982)

Toyota Lite/Townace Truck

Production Oct 1982 - Aug 1985
Engine 4KJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8210- )

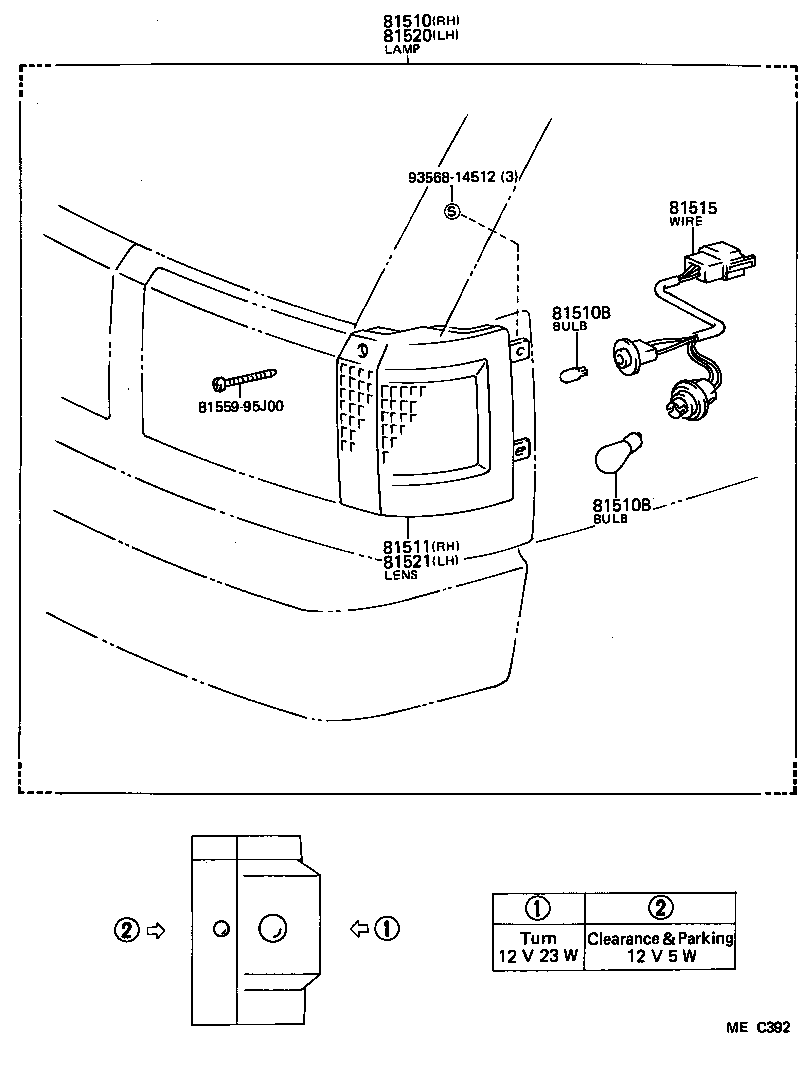

Click highlighted areas on diagram

diagram 81510 81510B 81510B 81511 81515 81520 81521 8155995J00 9356814512
Part # Description Qty Price
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-29785

CM2#,KM21,YM2#

 1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11050

CM2#,KM2#,TM20,YM2#

12V 5W,12V 5W

 2
99132-11230

CM2#,KM2#,TM20,YM2#

12V 23W,12V 23W

 2
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11050

CM2#,KM2#,TM20,YM2#

12V 5W,12V 5W

 2
99132-11230

CM2#,KM2#,TM20,YM2#

12V 23W,12V 23W

 2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-95704

CM2#,KM21,YM2#

 1
81515 - WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY
81515-95704

CM2#,KM21,YM2#

 2
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-29775

CM2#,KM21,YM2#

 1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-95704

CM2#,KM21,YM2#

 1
Common parts
81559-95J00
93568-14512
