KM21V-JDZF (1982)
Toyota Lite/Townace Truck

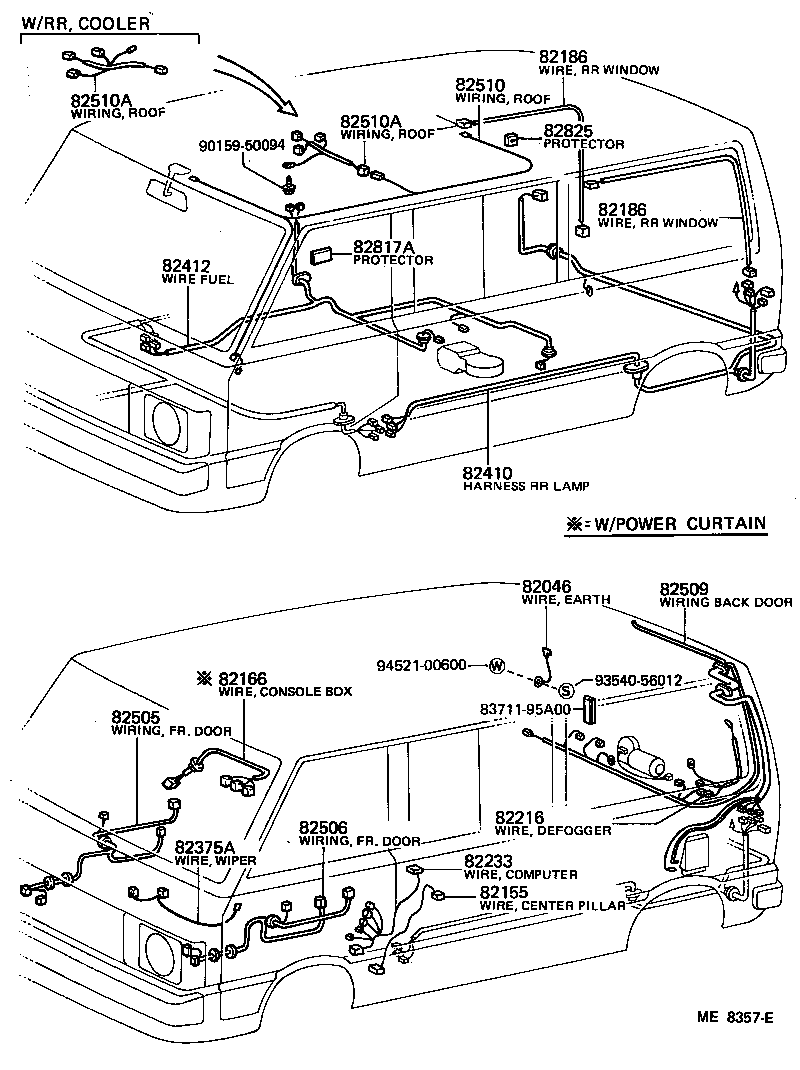

ILLUST NO. 2 OF 3(7910-8508)V,WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82216 - WIRE, REAR WINDOW DEFOGGER | ||||
| 82401-95702 |
CM20,KM21,YM20,21..(V,WG)..(CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL) |
1 | ||
| 82410 - HARNESS ASSY, WIRING TO REAR LAMP | ||||
| 82430-95733 |
CM20,YM20,21..(MTP,S,SUP,XL)..ST |
1 | ||
| 82430-95731 |
KM21..V..(DLX,STD)..ST |
1 | ||
| 82430-95733 |
CM20,KM21,YM21..(HRF,SRF)..(CS7,DLX,SW)..ST W/*RWD |
1 | ||
| 82430-95735 |
CM20,KM21,YM21..(HRF,SRF)..(CS7,DLX,MTP,SW,XL)..ST W/*RW,W/*RW & *RWD |
1 | ||
| 82412 - WIRE, FUEL GAGE | ||||
| 82403-95709 |
CM20,KM21,YM20..(HRF,SRF)..(03S,05S,06S)..ST |
1 | ||
| 82509 - WIRING SUB-ASSY, BACK DOOR | ||||
| 82501-95707 |
CM20,KM21,YM21..(HRF,SRF)..(DLX,STD,SW) |
1 | ||
| 82501-95708 |
CM20,KM21,YM20,21..(V,WG)..(CS7,DLX,MTP,S,SUP,SW,XL) W/*RWD |
1 | ||
| 82501-95711 |
CM20,KM21,YM21..CS7,FXV,GXL,MTP,S,SUP,XL W/*RWD,*BDEL & *RW |
1 | ||
| 82501-95710 |
KM21..V..DLX;CM20,YM20,21..(V,WG)..(CS7,DLX,MTP,S,SUP,SW,XL) W/*RW,W/*RW & *RWD |
1 | ||
| 82501-95709 |
CM20,KM21,YM21..CS7,MTP,S,SUP,XL W/*BDEL,W/*RWD & *BDEL |
1 | ||
| 82510 - WIRING ASSY, ROOF | ||||
| 82510-95701 |
CM20,KM2#,TM20,YM20,21..HRF..(CS7,DLX,GXL,STD,SUP,SW,XL) |
1 | ||
| 82825 - PROTECTOR, WIRING HARNESS | ||||
| 82815-95700 |
CM20,KM21,YM20,21..HRF,SRF |
1 | ||
| Common parts | ||||
| 83711-95A00 | ||||
| 90159-50094 | ||||
| 93540-56012 | ||||
| 94521-00600 | ||||

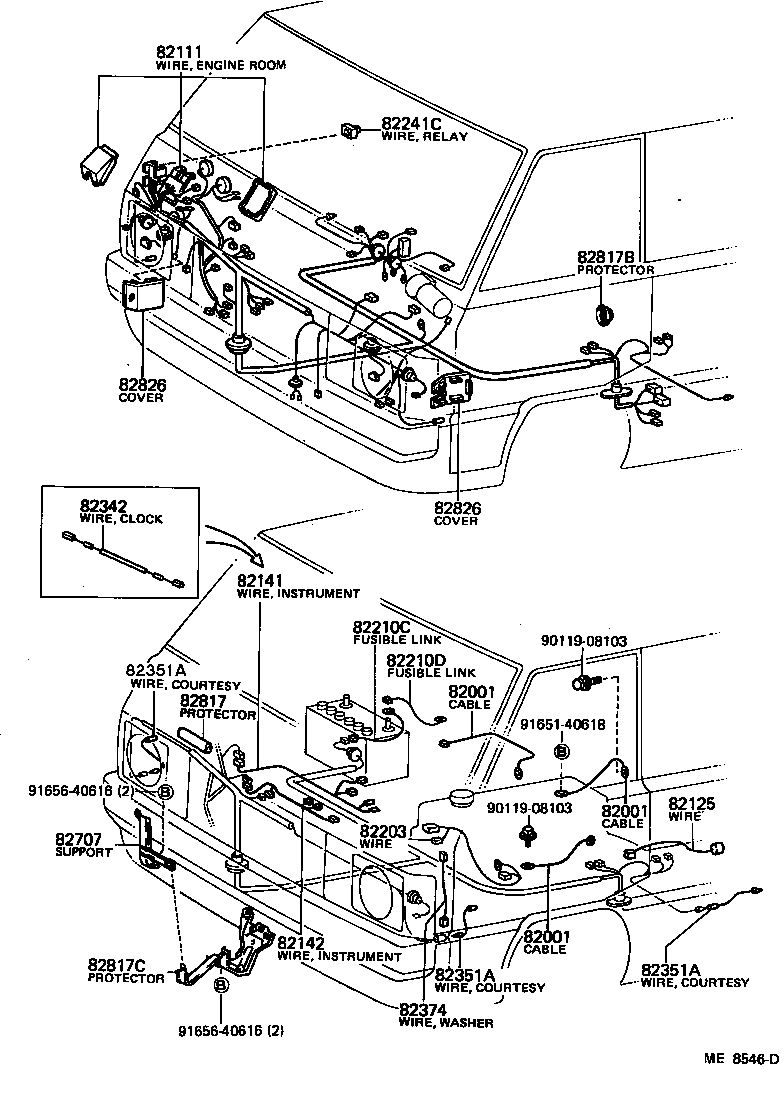

ILLUST NO. 1 OF 3(7910-8508)V
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07021 |
KM21,YM2#..DLX,FXV,GXL,MTP,S,SUP,XL L=280 |
1 | ||
| 90980-07159 |
KM21..DLX,SUP L=500 |
1 | ||
| 90980-07159 |
KM21..V..(DLX,SUP) L=500 |
1 | ||
| 90980-07167 |
KM21..V;KM20,TM20 L=380 |
1 | ||
| 90980-07021 |
KM21..V..(DLX,SUP) L=280 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07021 |
KM21,YM2#..DLX,FXV,GXL,MTP,S,SUP,XL L=280 |
1 | ||
| 90980-07159 |
KM21..DLX,SUP L=500 |
1 | ||
| 90980-07159 |
KM21..V..(DLX,SUP) L=500 |
1 | ||
| 90980-07167 |
KM21..V;KM20,TM20 L=380 |
1 | ||
| 90980-07021 |
KM21..V..(DLX,SUP) L=280 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07021 |
KM21,YM2#..DLX,FXV,GXL,MTP,S,SUP,XL L=280 |
1 | ||
| 90980-07159 |
KM21..DLX,SUP L=500 |
1 | ||
| 90980-07159 |
KM21..V..(DLX,SUP) L=500 |
1 | ||
| 90980-07167 |
KM21..V;KM20,TM20 L=380 |
1 | ||
| 90980-07021 |
KM21..V..(DLX,SUP) L=280 |
1 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-95700 |
KM21..V..(DLX,STD) |
1 | ||
| 82111-95701 |
KM21..V..DLX W/*RWD OR *RW |
1 | ||
| 82125 - WIRE, TRANSMISSION | ||||
| 82125-95700 |
YM20,21..MTM |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-95700 |
KM21..DLX,STD |
1 | ||
| 82141-95701 |
CM20,KM21,YM20..V..(DLX,SUP) W/*RWD OR *RW |
1 | ||
| 82203 - WIRE SUB-ASSY, ALTERNATOR | ||||
| 82203-95700 |
KM21,YM20,25 |
1 | ||
| 82210D - FUSIBLE LINK | ||||
| 90982-08058 |
KM21,YM2# 長さ=110,0.85R,0.5G,0.5GREEN & 0.85RED |
1 | ||
| 82342 - WIRE, CLOCK | ||||
| 82603-95702 |
CM2#,KM21,YM21,25..(3FC,4H,5H)..(DLX,STD,SW) |
1 | ||
| 82707 - SUPPORT SUB-ASSY, WIRING HARNESS | ||||
| 82707-95706 |
KM21,YM2# |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 83711-95A00 |
CM2#,KM21,YM2# |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-14350 |
KM21,YM20,21..V,WG |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82807-95701 |
KM21,YM2# |
1 | ||
| 82826 - COVER, WIRING HARNESS HOLE | ||||
| 82817-95700 |
CM2#,KM21,YM20,21..03S,05S,06S,08S,09S |
2 | ||
| 82826 - COVER, WIRING HARNESS HOLE | ||||
| 82817-95700 |
CM2#,KM21,YM20,21..03S,05S,06S,08S,09S |
2 | ||
| Common parts | ||||
| 90119-08103 | ||||
| 91651-40618 | ||||
| 91656-40616 | ||||
