KM21V-JDZF (1982)

Toyota Lite/Townace Truck

Production Oct 1982 - Aug 1985
Engine 4KJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910-8508)V,WG

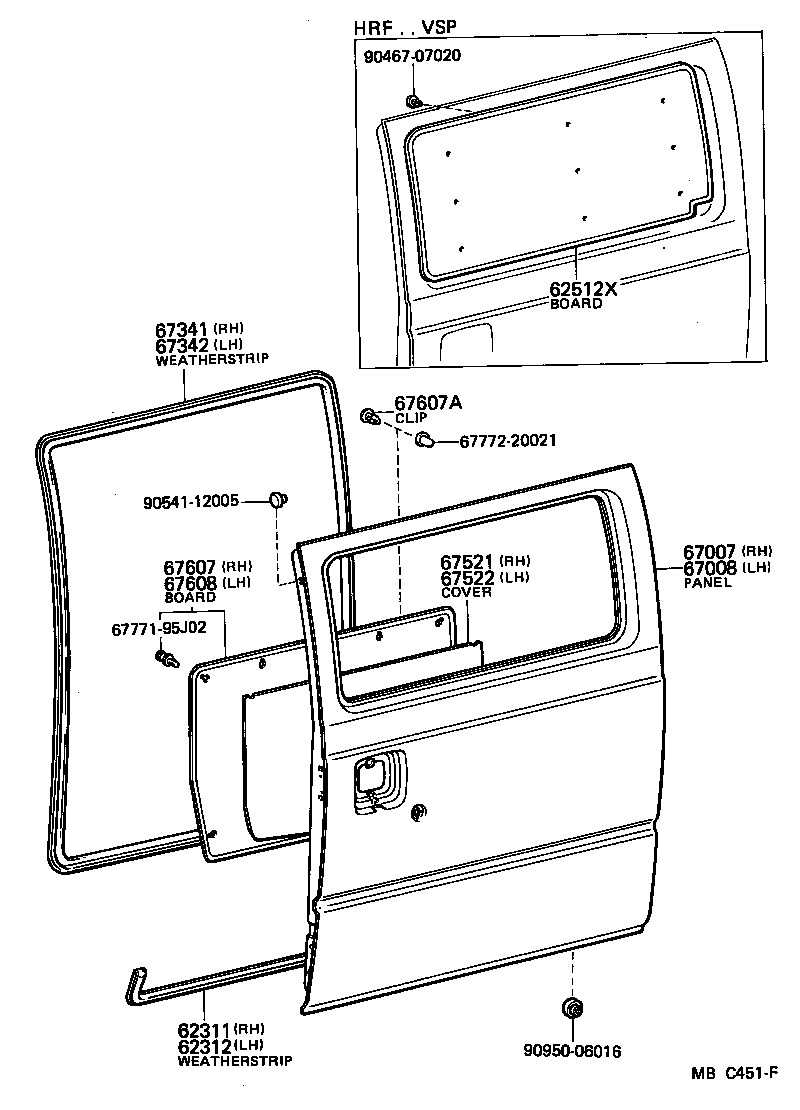

Click highlighted areas on diagram

diagram 62311 62312 62512X 67007 67008 67341 67342 67521 67522 67607 67607A 67608 6777195J02 6777220021 9046707020 9054112005 9095006016
Part # Description Qty Price
62311 - WEATHERSTRIP, DOOR OPENING TRIM, LOWER RH
62303-95700

CM20,KM2#,YM20..V5D

 1
67007 - PANEL SUB-ASSY, SLIDE DOOR, RH
67003-95702

CM20,KM2#,YM20..V5D

 1
67008 - PANEL SUB-ASSY, SLIDE DOOR, LH
67004-95712

CM20..SW,XL;CM20,KM21..VSG;YM20,21..(05S,06S,08S,09S)..(CS7,DLX,MTP,S,STD,SUP,SW,XL)

 1
67341 - WEATHERSTRIP, SLIDE DOOR, RH
62341-95703

CM20,KM2#,YM20..V5D

 1
67342 - WEATHERSTRIP, SLIDE DOOR, LH
62342-95701

CM20,KM2#,TM20,YM20,21..V,WG

 1
67521 - COVER SUB-ASSY, SLIDE DOOR PANEL, RH
67833-95700

CM20,KM2#,YM20..V5D

 1
67522 - COVER SUB-ASSY, SLIDE DOOR PANEL, LH
67833-95700

CM20,KM2#,TM20,YM20,21..V,WG

 1
67607 - BOARD SUB-ASSY, SLIDE DOOR TRIM, RH
67630-9570305

CM20,KM21,YM20..V5D..06S

BEIGE,BEIGE

 1
67608 - BOARD SUB-ASSY, SLIDE DOOR TRIM, LH
67640-9570505

CM20,KM21,YM20..VSG..(05S,06S)

BEIGE,BEIGE

 1
Common parts
67771-95J02
67772-20021
90467-07020
90541-12005
90950-06016
