KM21V-JDZF (1982)

Toyota Lite/Townace Truck

Production Oct 1982 - Aug 1985
Engine 4KJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

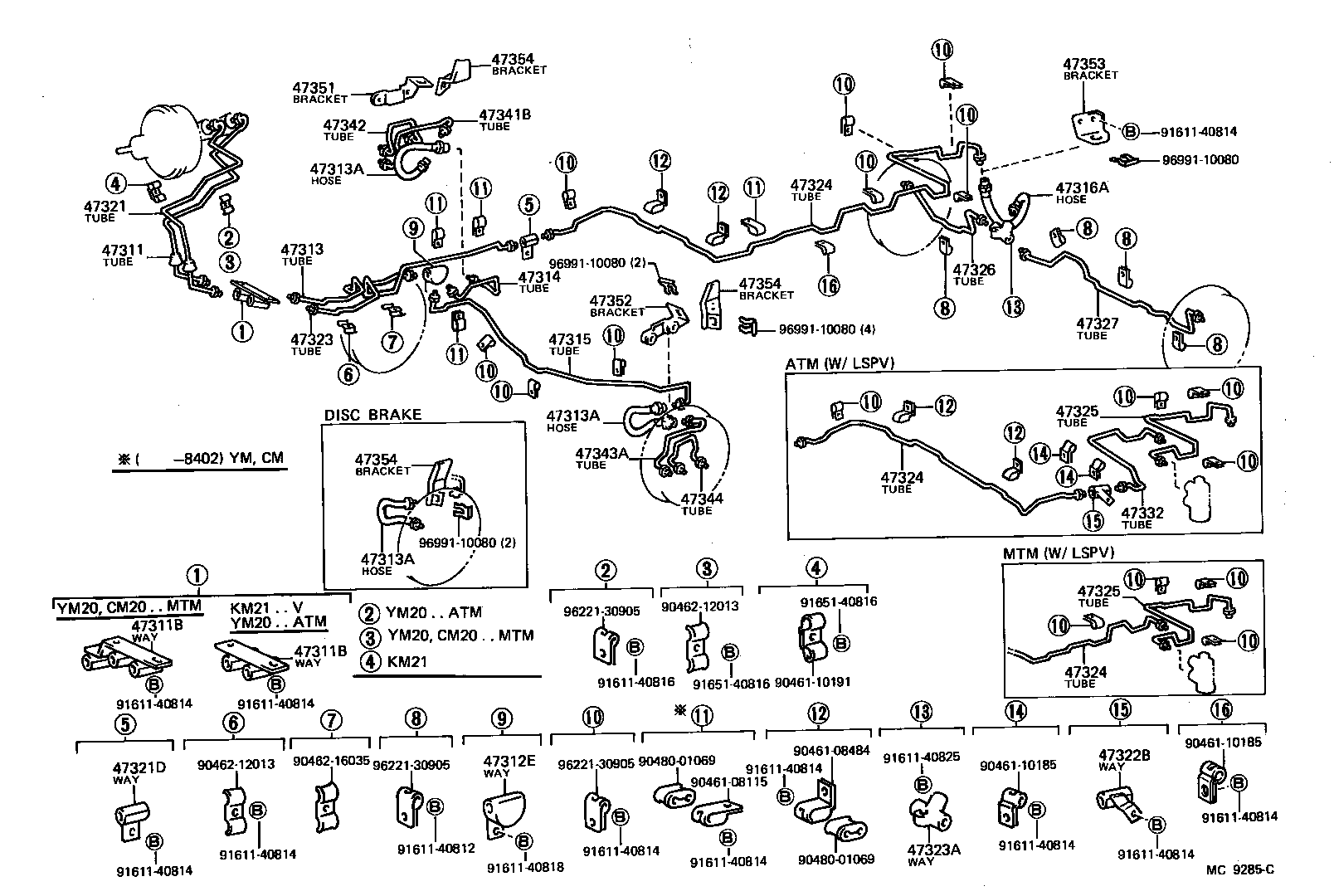

ILLUST NO. 1 OF 2(8210-8508)V..ST

Click highlighted areas on diagram

diagram 47311 47311B 47311B 47312E 47313 47313A 47313A 47313A 47314 47315 47316A 47321 47321D 47322B 47323 47323A 47324 47324 47324 47325 47325 47326 47327 47332 47341B 47342 47343A 47344 47351 47352 47353 47354 47354 47354 9046108115 9046108484 9046110185 9046110185 9046110191 9046212013 9046212013 9046216035 9048001069 9048001069 9161140812 9161140814 9161140814 9161140814 9161140814 9161140814 9161140814 9161140814 9161140814 9161140814 9161140814 9161140814 9161140816 9161140818 9161140825 9165140816 9165140816 9622130905 9622130905 9622130905 9699110080 9699110080 9699110080 9699110080
Part # Description Qty Price
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10098

KM21..V

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10098

KM21..V

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90413-10133

CM20,KM21,YM20,21..V,WG

 1
47313 - TUBE, FRONT BRAKE, NO.3
47312-27041

CM20,KM21,YM20..V

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
96940-32805

KM21..V;CM2#,YM2#;KM21..TR..DLX

FR DISC BRAKE,L=280

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
96940-32805

KM21..V;CM2#,YM2#;KM21..TR..DLX

FR DISC BRAKE,L=280

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
96940-32805

KM21..V;CM2#,YM2#;KM21..TR..DLX

FR DISC BRAKE,L=280

 2
47314 - TUBE, FRONT BRAKE, NO.4
47313-27031

CM20,KM21,YM20,21..V,WG

 1
47315 - TUBE, FRONT BRAKE, NO.5
47314-27041

CM20,KM21,YM20,21..V,WG

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96940-33805

CM20,KM2#,YM20,21..(V,WG)..ST

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-10063

CM2#,KM2#,TM20,YM2#

 1
47323 - TUBE, REAR BRAKE, NO.3
47322-27021

CM20,KM21,YM20..V

 1
47323A - WAY, NO.3(FOR REAR BRAKE TUBE)
90413-10098

CM20,KM21,YM20,21..(V,WG)..ST

 1
47324 - TUBE, REAR BRAKE, NO.4
47323-27030

KM2#..V..ST

W/LSPV

 1
47323-27140

KM21..V..(DLX,STD)..ST

W/O LSPV

 1
47324 - TUBE, REAR BRAKE, NO.4
47323-27030

KM2#..V..ST

W/LSPV

 1
47323-27140

KM21..V..(DLX,STD)..ST

W/O LSPV

 1
47324 - TUBE, REAR BRAKE, NO.4
47323-27030

KM2#..V..ST

W/LSPV

 1
47323-27140

KM21..V..(DLX,STD)..ST

W/O LSPV

 1
47325 - TUBE, REAR BRAKE, NO.5
47324-27011

CM20,KM21,YM20..V..ST

 1
47325 - TUBE, REAR BRAKE, NO.5
47324-27011

CM20,KM21,YM20..V..ST

 1
47326 - TUBE, REAR BRAKE, NO.6
47325-27030

CM20,KM21,YM20,21..(V,WG)..ST

 1
47327 - TUBE, REAR BRAKE, NO.7
47326-27010

CM20,KM21,YM20,21..(V,WG)..ST

 1
47353 - BRACKET, FLEXIBLE HOSE(FOR REAR)
47355-27010

CM20,KM21,YM20,21..(V,WG)..ST

 1
47354 - BRACKET, FRONT FLEXIBLE HOSE
47354-27021

CM20,KM21,YM20,21..V,WG

LH

 1
47353-27031

CM20,KM21,YM20,21..V,WG

RH

 1
47354 - BRACKET, FRONT FLEXIBLE HOSE
47354-27021

CM20,KM21,YM20,21..V,WG

LH

 1
47353-27031

CM20,KM21,YM20,21..V,WG

RH

 1
47354 - BRACKET, FRONT FLEXIBLE HOSE
47354-27021

CM20,KM21,YM20,21..V,WG

LH

 1
47353-27031

CM20,KM21,YM20,21..V,WG

RH

 1
Common parts
90461-08115
90461-08484
90461-10185
90461-10191
90462-12013
90462-16035
90480-01069
91611-40812
91611-40814
91611-40816
91611-40818
91611-40825
91651-40816
96221-30905
96991-10080
