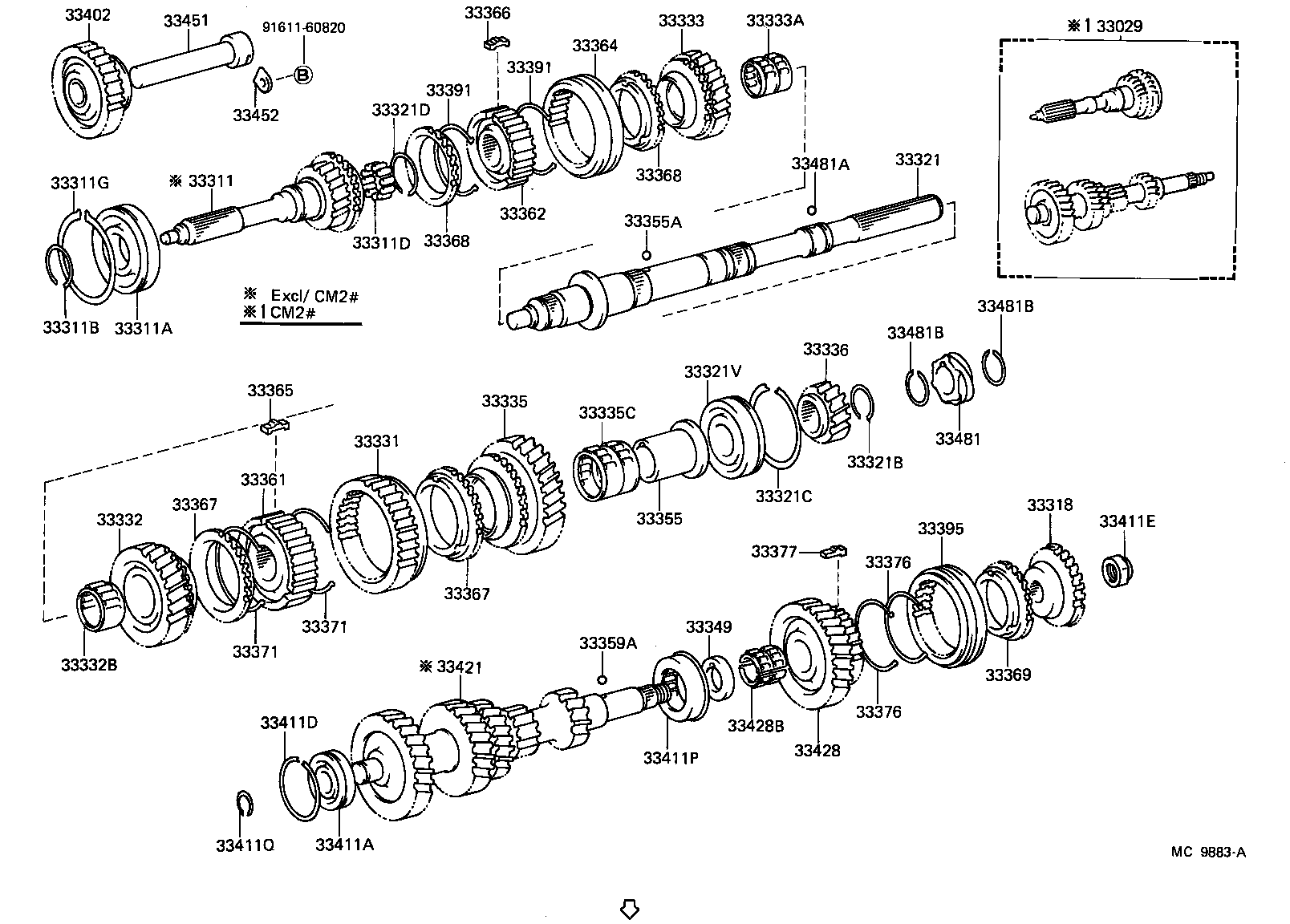

Toyota Lite/townace truck KM21V TRANSMISSION GEAR (MTM)

Part #	Description	Period	Qty
33311 - SHAFT, INPUT
33311-35040	KM2#,YM25	10/1979 - 09/1986	1
33311A - BEARING (FOR INPUT SHAFT FRONT)
97163-06207	KM2#,TM20,YM25..4F,4H	10/1979 - 10/1985	1
90363-32017	CM2#,YM20,21..MTM	10/1982 - 01/1984	1
33311B - RING, SHAFT SNAP (FOR FRONT BEARING)
90520-33172	KM2#,TM20,YM25..4F,4H 厚さ=2.25,ﾏｰｸ 5,T=2.25-2.30	10/1979 - 09/1986	1
90520-33171	KM2#,TM20,YM25..4F,4H 厚さ=2.20,ﾏｰｸ 4,T=2.20-2.25	10/1979 - 09/1986	1
90520-33170	KM2#,TM20,YM25..4F,4H 厚さ=2.15,ﾏｰｸ 3,T=2.15-2.20	10/1979 - 09/1986	1
90520-33169	KM2#,TM20,YM25..4F,4H 厚さ=2.10,ﾏｰｸ 2,T=2.10-2.15	10/1979 - 09/1986	1
90520-33168	KM2#,TM20,YM25..4F,4H 厚さ=2.05,ﾏｰｸ 1,T=2.05-2.10	10/1979 - 09/1986	1
90520-33107	KM2#,TM20,YM25..4F,4H 厚さ=2.30−2.35,ﾏｰｸ 11,T=2.30-2.35	10/1979 - 09/1986	1
33311D - BEARING, INPUT SHAFT
90361-06047	CM2#,KM2#,TM20,YM2#..MTM	10/1979 - 01/1984	14
33321 - SHAFT, OUTPUT
33321-27021	KM2#,TM20,YM25..4F,4H	10/1979 - 09/1986	1
33321C - RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
90520-68181	KM2#,TM20,YM25..4F,4H 厚さ=1.35,ﾏｰｸ 1,T=1.35-1.45	10/1979 - 09/1986	1
90520-68182	KM2#,TM20,YM25..4F,4H 厚さ=1.45,ﾏｰｸ 2,T=1.45-1.55	10/1979 - 09/1986	1
90520-68185	KM2#,TM20,YM25..4F,4H 厚さ=1.75,ﾏｰｸ 5,T=1.75-1.85	10/1979 - 09/1986	1
90520-68183	KM2#,TM20,YM25..4F,4H 厚さ=1.55,ﾏｰｸ 3,T=1.55-1.65	10/1979 - 09/1986	1
90520-68184	KM2#,TM20,YM25..4F,4H 厚さ=1.65,ﾏｰｸ 4,T=1.65-1.75	10/1979 - 09/1986	1
33321D - RING, SHAFT SNAP (FOR CLUTCH HUB SET)
90520-28243	KM2#,TM20,YM25..4F,4H 厚さ=1.60−1.65,ﾏｰｸ B,T=1.60-1.65	10/1979 - 09/1986	1
90520-28244	KM2#,TM20,YM25..4F,4H 厚さ=1.70−1.75,ﾏｰｸ C,T=1.70-1.75	10/1979 - 09/1986	1
90520-28242	KM2#,TM20,YM25..4F,4H 厚さ=1.50−1.55,ﾏｰｸ A,T=1.50-1.55	10/1979 - 09/1986	1
90520-28245	CM2#,KM2#,TM20,YM2#..MTM 厚さ=1.80−1.85,ﾏｰｸ D,T=1.80-1.85	10/1979 - 09/1986	1
33321V - BEARING (FOR OUTPUT SHAFT CENTER)
90363-30031	CM2#,YM20,21..MTM	10/1982 - 02/1983	1
33331 - GEAR, REVERSE
33331-26010	KM2#,TM20,YM25..4F,4H N=34	10/1979 - 09/1986	1
33332 - GEAR, 2ND
33332-35030	KM2#,YM25 N=28	10/1979 - 09/1986	1
33333 - GEAR, 3RD
33333-26010	KM2#,TM20,YM25..4F,4H N=22	10/1979 - 09/1986	1
33335 - GEAR, 1ST
33335-35010	KM2#,TM20,YM25..4F,4H N=32	10/1979 - 09/1986	1
33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR)
90364-37050	KM2#,TM20,YM25..4F,4H	10/1979 - 09/1986	2
33361 - HUB, TRANSMISSION CLUTCH, NO.1
33361-26011	KM2#,TM20,YM25..4F,4H	10/1979 - 04/1985	1
33362 - HUB, TRANSMISSION CLUTCH, NO.2
33362-28010	KM2#,TM20,YM25..4F,4H	10/1979 - 08/1985	1
33364 - SLEEVE, TRANSMISSION HUB, NO.2
33364-26010	KM2#,TM20,YM25..4F,4H	10/1979 - 09/1986	1
33365 - KEY, SYNCHROMESH SHIFTING, NO.1
33365-26010	KM2#,TM20,YM25..4F,4H	10/1979 - 09/1986	3
33366 - KEY, SYNCHROMESH SHIFTING, NO.2
33366-26010	KM2#,TM20,YM25..4F,4H	10/1979 - 09/1986	3
33402 - GEAR SUB-ASSY, REVERSE IDLER
33402-28010	CM2#,YM20,21..MTM	10/1982 - 05/1984	1
33402-26010	KM2#,TM20,YM25..4F,4H N=23	10/1979 - 09/1986	1
33411A - BEARING OR ROLLER(FOR COUNTER GEAR FRONT)
90364-19068	KM2#,TM20,YM25..4F,4H	10/1979 - 09/1986	1
33421 - GEAR, COUNTER
33421-35051	KM2#,YM25 N=32,27,21,14,15	10/1979 - 09/1986	1
33451 - SHAFT, REVERSE IDLER GEAR
33451-30020	KM2#,TM20,YM25..4F,4H	10/1979 - 09/1986	1
33481 - GEAR, SPEEDOMETER DRIVE (MTM)
33481-25010	KM2# 歯数=4,N=4	10/1979 - 09/1986	1
33481A - KEY OR BALL, SPEEDOMETER DRIVE GEAR (MTM)
90360-06004	CM2#,KM2#,TM20,YM2#..MTM	10/1979 - 09/1986	1
33481B - RING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR)
90520-28137	KM2#,TM20,YM25..4F,4H 厚さ=2.20−2.25,ﾏｰｸ 1,T=2.20-2.25	10/1979 - 09/1986	1
90520-28244	KM2#,TM20,YM25..4F,4H 厚さ=1.70−1.75,ﾏｰｸ C,T=1.70-1.75	10/1979 - 09/1986	1
90520-28242	KM2#,TM20,YM25..4F,4H 厚さ=1.50−1.55,ﾏｰｸ A,T=1.50-1.55	10/1979 - 09/1986	1
90520-28246	KM2#,TM20,YM25..4F,4H 厚さ=1.90−1.95,ﾏｰｸ E,T=1.90-1.95	10/1979 - 09/1986	1
90520-28243	KM2#,TM20,YM25..4F,4H 厚さ=1.60−1.65,ﾏｰｸ B,T=1.60-1.65	10/1979 - 09/1986	1
90520-28245	KM2#,TM20,YM25..4F,4H 厚さ=1.80−1.85,ﾏｰｸ D,T=1.80-1.85	10/1979 - 09/1986	1
90520-28248	KM2#,TM20,YM25..4F,4H 厚さ=2.00−2.05,ﾏｰｸ F,T=2.00-2.05	10/1979 - 09/1986	1
90520-28249	KM2#,TM20,YM25..4F,4H 厚さ=2.10−2.15,ﾏｰｸ G,T=2.10-2.15	10/1979 - 09/1986	1
33481B - RING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR)
90520-28137	KM2#,TM20,YM25..4F,4H 厚さ=2.20−2.25,ﾏｰｸ 1,T=2.20-2.25	10/1979 - 09/1986	1
90520-28244	KM2#,TM20,YM25..4F,4H 厚さ=1.70−1.75,ﾏｰｸ C,T=1.70-1.75	10/1979 - 09/1986	1
90520-28242	KM2#,TM20,YM25..4F,4H 厚さ=1.50−1.55,ﾏｰｸ A,T=1.50-1.55	10/1979 - 09/1986	1
90520-28246	KM2#,TM20,YM25..4F,4H 厚さ=1.90−1.95,ﾏｰｸ E,T=1.90-1.95	10/1979 - 09/1986	1
90520-28243	KM2#,TM20,YM25..4F,4H 厚さ=1.60−1.65,ﾏｰｸ B,T=1.60-1.65	10/1979 - 09/1986	1
90520-28245	KM2#,TM20,YM25..4F,4H 厚さ=1.80−1.85,ﾏｰｸ D,T=1.80-1.85	10/1979 - 09/1986	1
90520-28248	KM2#,TM20,YM25..4F,4H 厚さ=2.00−2.05,ﾏｰｸ F,T=2.00-2.05	10/1979 - 09/1986	1
90520-28249	KM2#,TM20,YM25..4F,4H 厚さ=2.10−2.15,ﾏｰｸ G,T=2.10-2.15	10/1979 - 09/1986	1
Common parts
91611-60820

KM21V-JDZ (1982)

(8210- )CM2#,YM20,21..MTM
