KM21V-JDF (1982)

Toyota Lite/Townace Truck

Production Oct 1982 - Aug 1985
Engine 4KJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

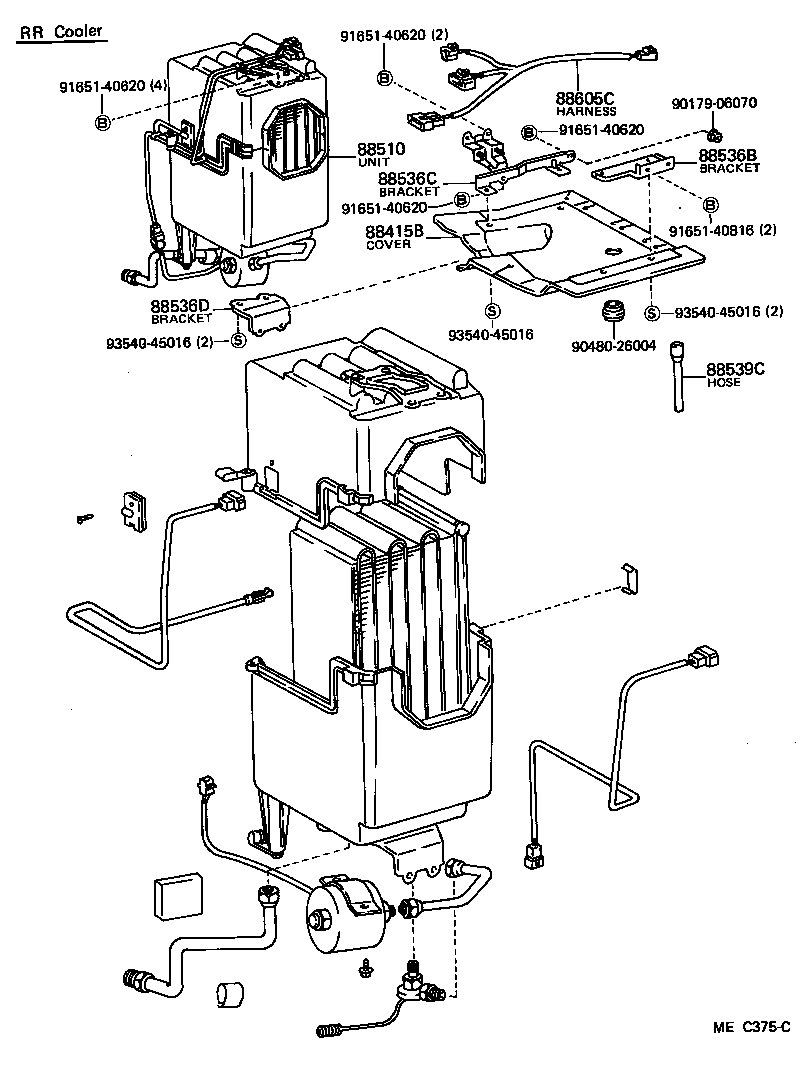

ILLUST NO. 2 OF 3(8210-8508)

Click highlighted areas on diagram

diagram 88415B 88510 88536B 88536C 88536D 88539C 88605C 9017906070 9048026004 9165140620 9165140620 9165140620 9165140620 9165140816 9354045016 9354045016 9354045016
Part # Description Qty Price
88510 - UNIT ASSY, COOLER
88510-95713

CM2#,KM21,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

FR

 1
Common parts
90179-06070
90480-26004
91651-40620
91651-40816
93540-45016

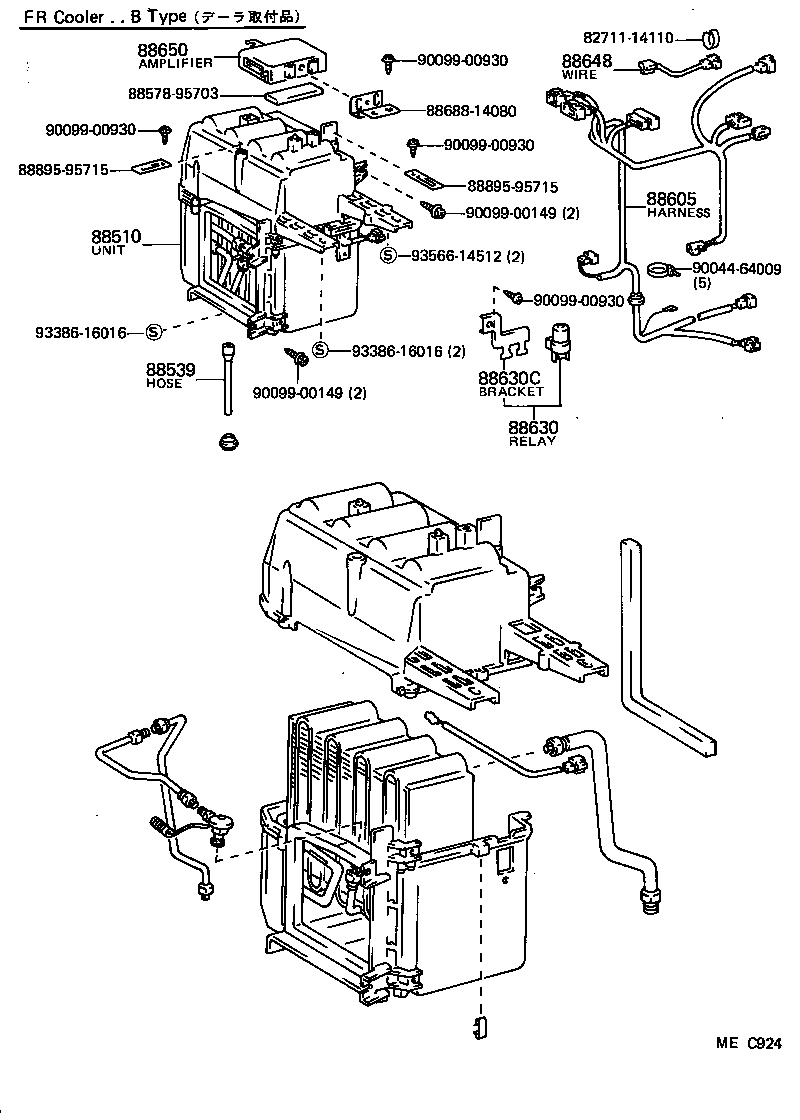

ILLUST NO. 1 OF 3(8210- )

Click highlighted areas on diagram

diagram 8271114110 88510 88539 8857895703 88605 88630 88630C 88648 88650 8868814080 8889595715 8889595715 9004464009 9009900149 9009900149 9009900930 9009900930 9009900930 9009900930 9338616016 9338616016 9356614512
Part # Description Qty Price
88510 - UNIT ASSY, COOLER
88510-95713

CM2#,KM21,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

FR

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-95704

CM2#,KM21,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-95712

KM21,YM20,25..DLX,SUP

 1
88630 - RELAY ASSY, COOLER
88630-95706

KM21,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

FR

 1
88630C - BRACKET, COOLER RELAY
88631-95700

CM2#,KM21,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

FR

 1
88648 - WIRING, COOLER, NO.1
88648-95706

KM21..DLX,SUP

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-87101

KM21,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL

 1
Common parts
82711-14110
88578-95703
88688-14080
88895-95715
90044-64009
90099-00149
90099-00930
93386-16016
93566-14512

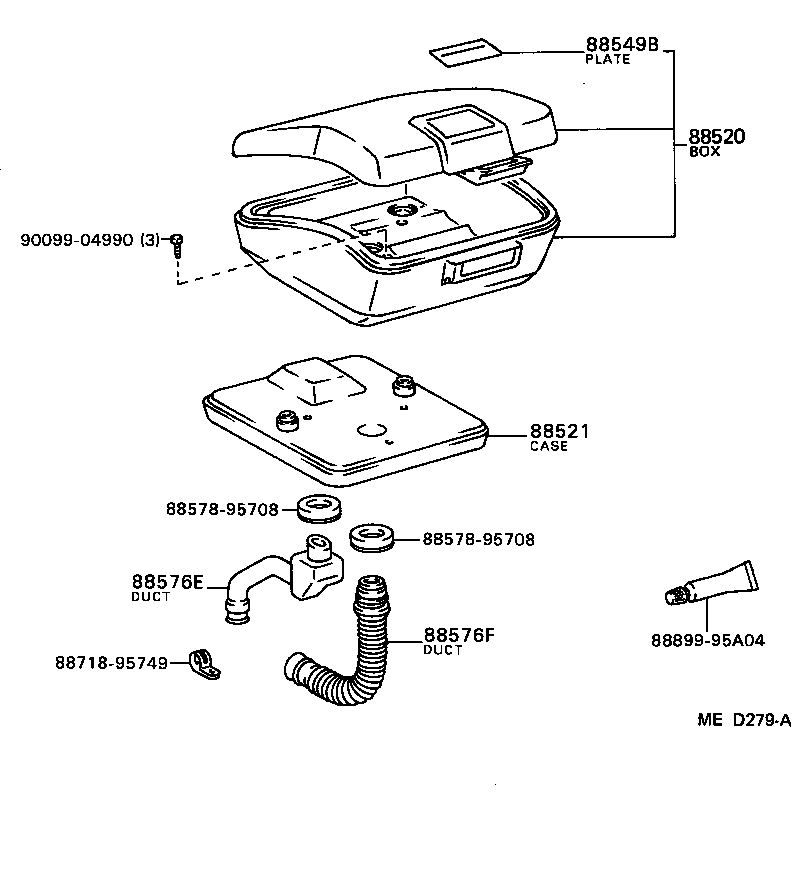

ILLUST NO. 3 OF 3(8210-8508)

Click highlighted areas on diagram

diagram 88520 88521 88549B 88576E 88576F 8857895708 8857895708 8871895749 8889995A04 9009904990
Part # Description Qty Price
Common parts
88578-95708
88718-95749
88899-95A04
90099-04990
