KM21V-JDE (1982)

Toyota Lite/Townace Truck

Production Oct 1982 - Aug 1985
Engine 4KJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8210- )

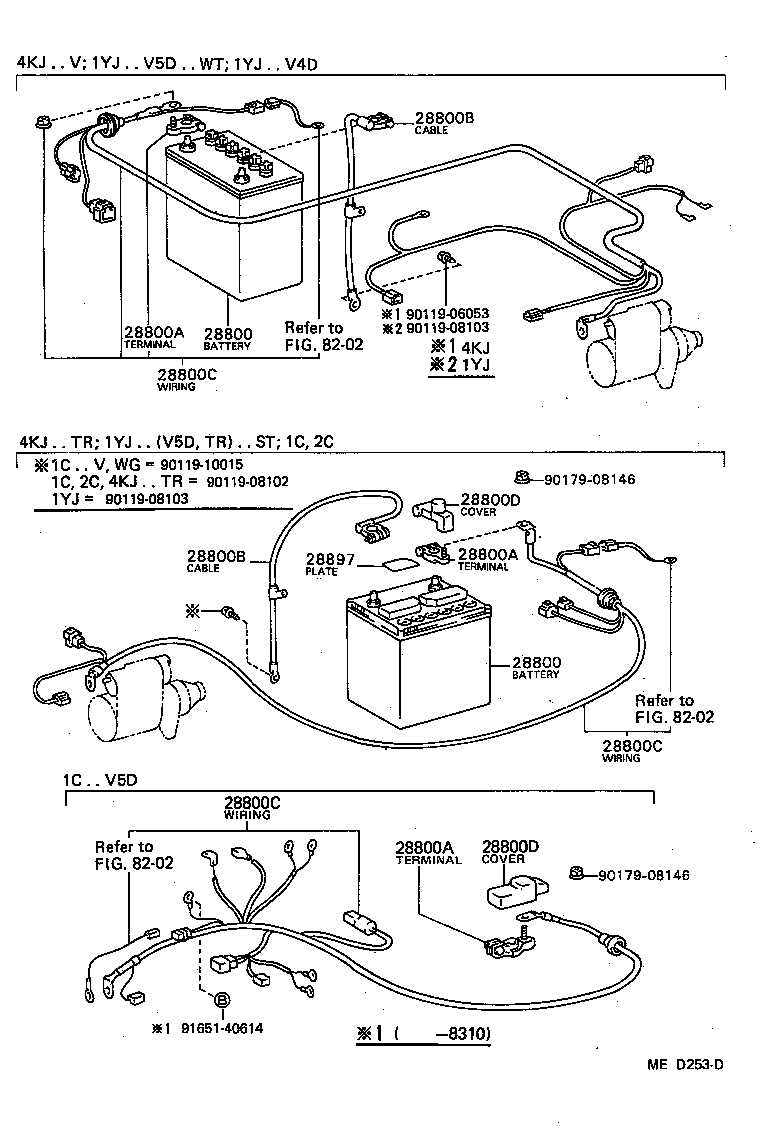

Click highlighted areas on diagram

diagram 28800 28800 28800A 28800A 28800A 28800B 28800B 28800C 28800C 28800C 28800D 28800D 28897 8202 8202 8202 9011906053 9011908102 9011908103 9011908103 9011910015 9017908146 9017908146 9165140614
Part # Description Qty Price
28800 - BATTERY
28800-13060

4KJ..KM2#..V

28B19R,NS40S(12V 30AH-20HR)

 1
28800 - BATTERY
28800-13060

4KJ..KM2#..V

28B19R,NS40S(12V 30AH-20HR)

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05004

13TU,4KJ,1YJ,2YU..KM2#,TM20,YM2#

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05004

13TU,4KJ,1YJ,2YU..KM2#,TM20,YM2#

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05004

13TU,4KJ,1YJ,2YU..KM2#,TM20,YM2#

 1
28800B - CABLE, BATTERY TO GROUND
90982-02187

4KJ..KM2#..V

 1
28800B - CABLE, BATTERY TO GROUND
90982-02187

4KJ..KM2#..V

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
82021-95702

4KJ..KM21..V

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
82021-95702

4KJ..KM21..V

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
82021-95702

4KJ..KM21..V

 1
Common parts
90119-06053
90119-08102
90119-08103
90119-10015
90179-08146
91651-40614
Linked diagrams
8202

(8210-8508)

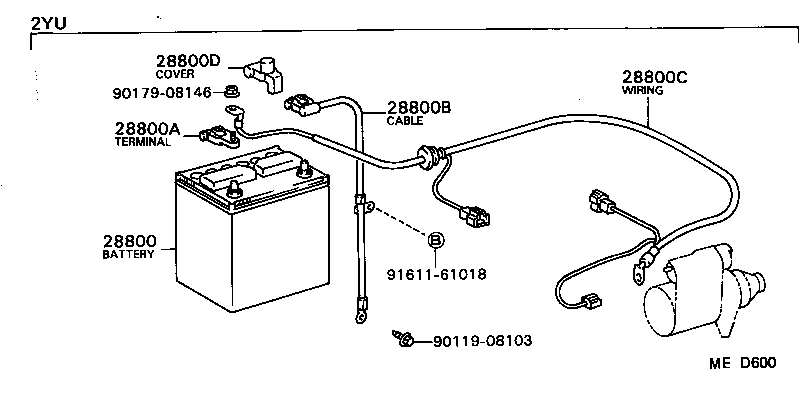

Click highlighted areas on diagram

diagram 28800 28800A 28800B 28800C 28800D 9011908103 9017908146 9161161018
Part # Description Qty Price
28800 - BATTERY
28800-13060

4KJ..KM2#..V

28B19R,NS40S(12V 30AH-20HR)

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05004

13TU,4KJ,1YJ,2YU..KM2#,TM20,YM2#

 1
28800B - CABLE, BATTERY TO GROUND
90982-02187

4KJ..KM2#..V

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
82021-95702

4KJ..KM21..V

 1
Common parts
90119-08103
90179-08146
91611-61018
