KM21V-JDBE (1982)

Toyota Lite/Townace Truck

Production Oct 1982 - Aug 1985
Engine 4KJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8210-8508)V,WG

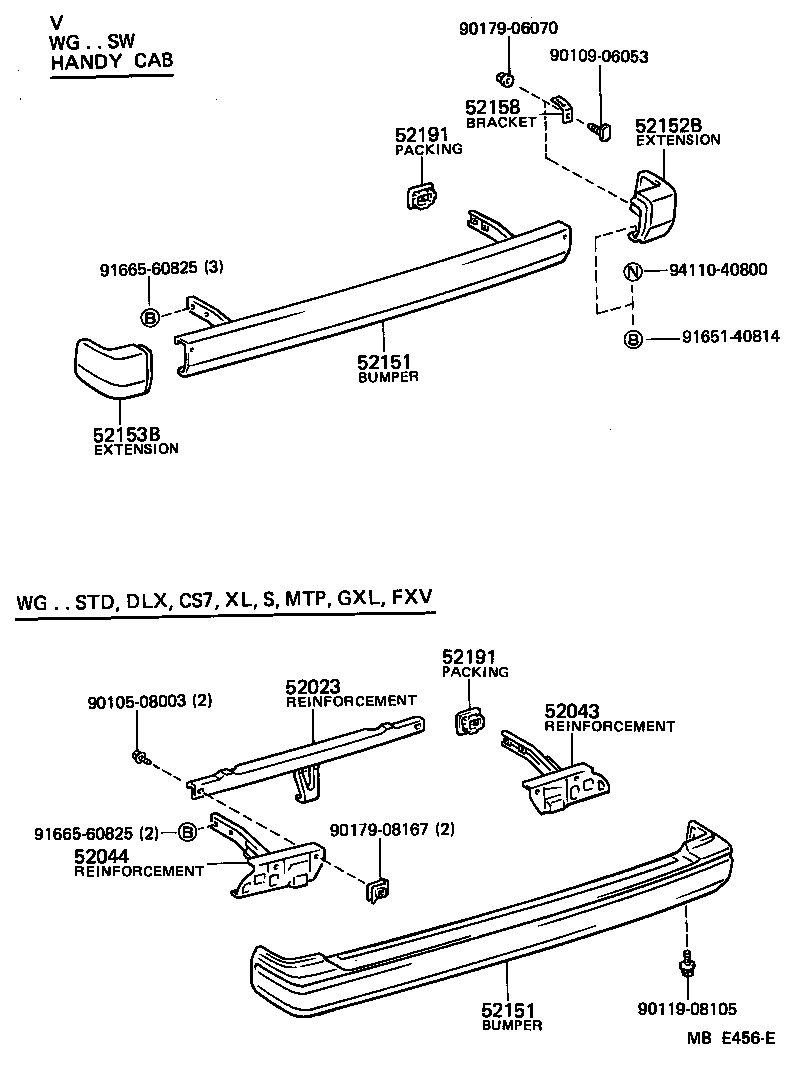

Click highlighted areas on diagram

diagram 52023 52043 52044 52151 52151 52152B 52153B 52158 52191 52191 9010508003 9010906053 9011908105 9017906070 9017908167 9165140814 9166560825 9166560825 9411040800
Part # Description Qty Price
52151 - BUMPER ASSY, REAR
52102-95709

CM20,KM21,YM20..V..ST

 1
52151 - BUMPER ASSY, REAR
52102-95709

CM20,KM21,YM20..V..ST

 1
52152B - EXTENSION, REAR BUMPER, RH
52121-95701

CM20,KM21,YM20..V

 1
52153B - EXTENSION, REAR BUMPER, LH
52122-95701

CM20,KM21,YM20..V

 1
52158 - BRACKET, REAR BUMPER
52137-95701

CM20,KM21,YM20..V

 2
52191 - PACKING, REAR BUMPER STAY
52191-95700

CM20,KM2#,TM20,YM20,21..V,WG

 2
52191 - PACKING, REAR BUMPER STAY
52191-95700

CM20,KM2#,TM20,YM20,21..V,WG

 2
Common parts
90105-08003
90109-06053
90119-08105
90179-06070
90179-08167
91651-40814
91665-60825
94110-40800
