KM21V-JDBE (1982)

Toyota Lite/Townace Truck

Production Oct 1982 - Aug 1985
Engine 4KJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8210-8508)4KJ

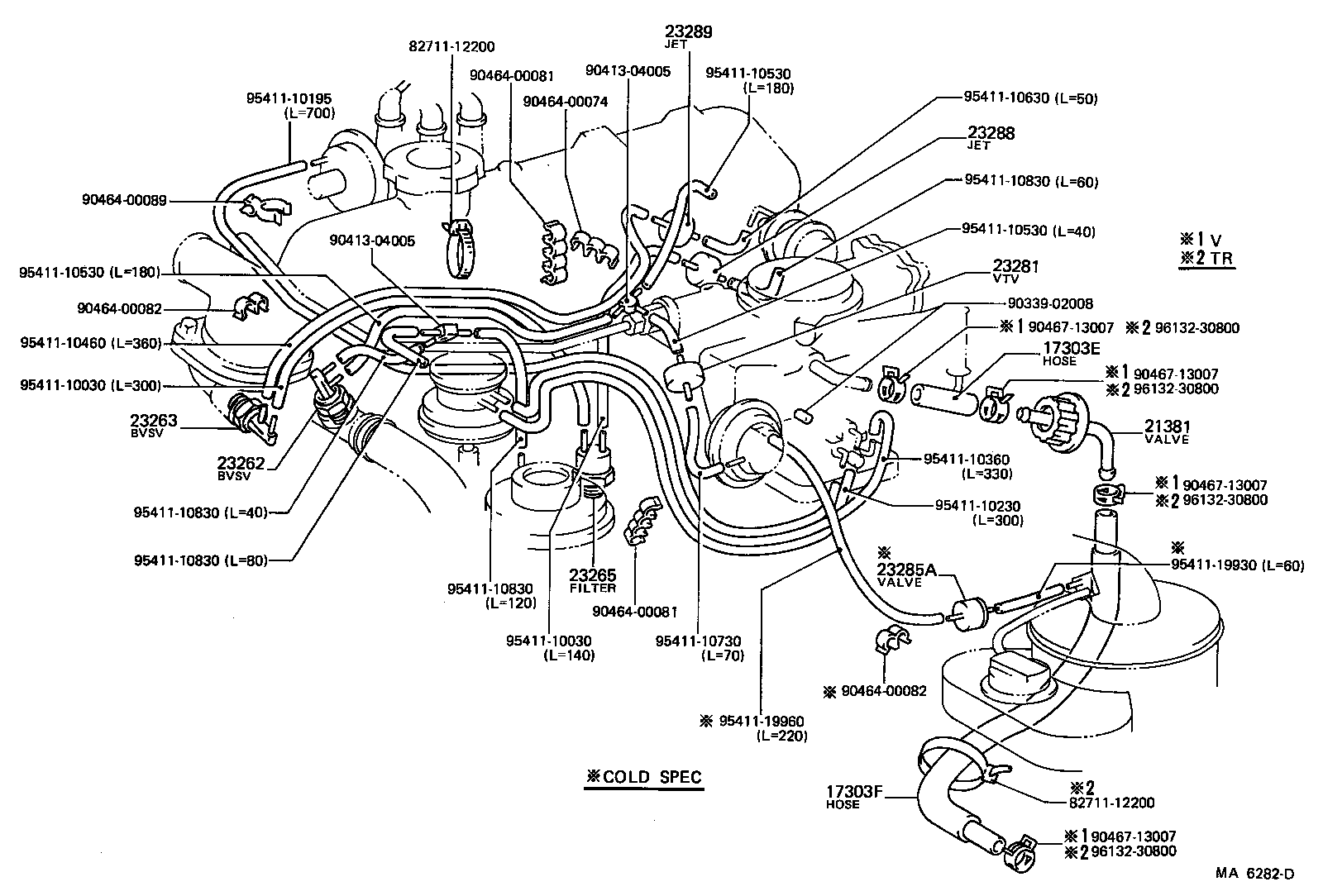

Click highlighted areas on diagram

diagram 17303E 17303F 21381 23262 23263 23265 23281 23285A 23288 23289 8271112200 8271112200 9033902008 9041304005 9041304005 9046400074 9046400081 9046400081 9046400082 9046400082 9046400089 9046713007 9046713007 9046713007 9046713007 9541110030 9541110030 9541110195 9541110230 9541110360 9541110460 9541110530 9541110530 9541110530 9541110630 9541110730 9541110830 9541110830 9541110830 9541110830 9541119930 9541119960 9613230800 9613230800 9613230800 9613230800
Part # Description Qty Price
17303F - HOSE, NO.2(FOR AIR PIPE)
90447-14004

4KJ..KM21..V

 1
23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2
25820-13010

4KJ..KM21

 1
23288 - JET, NO.1
90925-04006

4KJ..KM2#

YELLOW

 2
Common parts
82711-12200
90339-02008
90413-04005
90464-00074
90464-00081
90464-00082
90464-00089
90467-13007
95411-10030
95411-10195
95411-10230
95411-10360
95411-10460
95411-10530
95411-10630
95411-10730
95411-10830
95411-19930
95411-19960
96132-30800
