KM21V-JD (1982)
Toyota Lite/Townace Truck

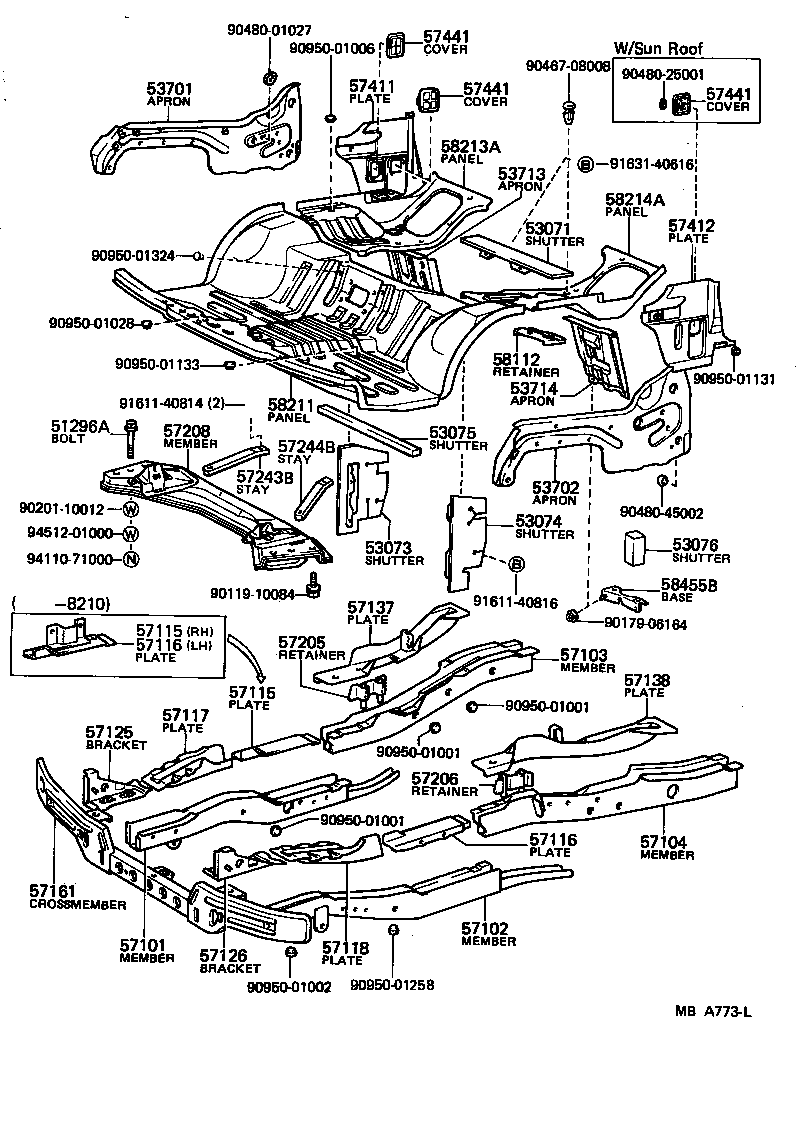

ILLUST NO. 1 OF 2(7910-8508)V,WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51296A - BOLT, ENGINE FRONT SUPPORT MEMBER | ||||
| 51296-95700 |
CM20,KM2#,TM20,YM20,21..V,WG |
4 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-95706 |
KM21..V..ST |
1 | ||
| 53701-95704 |
CM20,YM20,21..(V,WG)..ST |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-95706 |
KM21..V..ST |
1 | ||
| 53702-95707 |
YM20,21..ST |
1 | ||
| 53713 - APRON, FENDER SIDE, RH | ||||
| 53703-95703 |
CM20,KM21,YM20,21..V,WG |
1 | ||
| 53714 - APRON, FENDER SIDE, LH | ||||
| 53704-95706 |
KM21..V |
1 | ||
| 53704-95707 |
YM20,21 |
1 | ||
| 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH | ||||
| 57031-95705 |
CM20,KM21,YM20,21..V,WG |
1 | ||
| 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH | ||||
| 57032-95705 |
CM20,KM21,YM20,21..V,WG |
1 | ||
| 57103 - MEMBER SUB-ASSY, FRONT SIDE, NO.2 RH | ||||
| 57033-95709 |
CM20,KM21..V4D..ST |
1 | ||
| 57104 - MEMBER SUB-ASSY, FRONT SIDE, NO.2 LH | ||||
| 57034-95706 |
CM20,KM21,YM20..V..ST |
1 | ||
| 57115 - PLATE SUB-ASSY, FRONT SIDE MEMBER, CENTER RH | ||||
| 57115-95701 |
CM20,KM21,YM20,21..V,WG |
1 | ||
| 57115 - PLATE SUB-ASSY, FRONT SIDE MEMBER, CENTER RH | ||||
| 57115-95701 |
CM20,KM21,YM20,21..V,WG |
1 | ||
| 57116 - PLATE SUB-ASSY, FRONT SIDE MEMBER, CENTER LH | ||||
| 57116-95701 |
CM20,KM21,YM20,21..V,WG |
1 | ||
| 57116 - PLATE SUB-ASSY, FRONT SIDE MEMBER, CENTER LH | ||||
| 57116-95701 |
CM20,KM21,YM20,21..V,WG |
1 | ||
| 57117 - PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT RH | ||||
| 57113-95701 |
CM20,KM2#,TM20,YM20,21..V,WG |
1 | ||
| 57118 - PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT LH | ||||
| 57114-95701 |
CM20,KM2#,TM20,YM20,21..V,WG |
1 | ||
| 57125 - BRACKET, FRONT SIDE MEMBER, RH | ||||
| 57101-95705 |
CM20,KM21,YM20..V |
1 | ||
| 57126 - BRACKET, FRONT SIDE MEMBER, LH | ||||
| 57126-95701 |
CM20,KM2#,TM20,YM20,21..V,WG |
1 | ||
| 57137 - PLATE SUB-ASSY, FRONT SIDE MEMBER, REAR RH | ||||
| 57037-95700 |
CM20,KM21,YM20,21..(V,WG)..MTM..ST |
1 | ||
| 57138 - PLATE SUB-ASSY, FRONT SIDE MEMBER, REAR LH | ||||
| 57038-95705 |
CM20,KM21..(V,WG)..ST |
1 | ||
| 57038-95703 |
YM20,21..ST |
1 | ||
| 57161 - CROSSMEMBER, FRONT | ||||
| 57103-95705 |
CM20,KM21,YM20..V |
1 | ||
| 57205 - RETAINER SUB-ASSY, ENGINE FRONT SUPPORT, RH | ||||
| 57205-95700 |
CM20,KM2#,TM20,YM20,21..V,WG |
1 | ||
| 57206 - RETAINER SUB-ASSY, ENGINE FRONT SUPPORT, LH | ||||
| 57206-95701 |
CM20,KM2#,TM20,YM20,21..V,WG |
1 | ||
| 57411 - PLATE, FLOOR SIDE RAIL, RH | ||||
| 57403-95711 |
KM21..V4D |
1 | ||
| 57412 - PLATE, FLOOR SIDE RAIL, LH | ||||
| 57404-95705 |
KM21,YM20,21..V,WG |
1 | ||
| 57441 - COVER, PLATE FLOOR SIDE RAIL | ||||
| 57441-95705 |
CM20,KM21,YM20,21..V,WG LH |
1 | ||
| 57441-95703 |
CM20,KM21,YM20..V4D;CM20,YM21..WG..(DLX,STD,SW) RH |
1 | ||
| 57441 - COVER, PLATE FLOOR SIDE RAIL | ||||
| 57441-95705 |
CM20,KM21,YM20,21..V,WG LH |
1 | ||
| 57441-95703 |
CM20,KM21,YM20..V4D;CM20,YM21..WG..(DLX,STD,SW) RH |
1 | ||
| 57441 - COVER, PLATE FLOOR SIDE RAIL | ||||
| 57441-95705 |
CM20,KM21,YM20,21..V,WG LH |
1 | ||
| 57441-95703 |
CM20,KM21,YM20..V4D;CM20,YM21..WG..(DLX,STD,SW) RH |
1 | ||
| 58112 - RETAINER, SEAT RAIL, REAR | ||||
| 58113-95700 |
CM20,KM21,YM20,21..V,WG |
1 | ||
| 58211 - PANEL, FRONT FLOOR | ||||
| 58101-95730 |
KM21..V |
1 | ||
| 58213A - PANEL, SEAT FLOOR, RH | ||||
| 58204-95701 |
KM2#..V |
1 | ||
| 58214A - PANEL, SEAT FLOOR, LH | ||||
| 58205-95708 |
KM2#..V |
1 | ||
| 58205-95712 |
YM20,21 |
1 | ||
| Common parts | ||||
| 90119-10084 | ||||
| 90179-06164 | ||||
| 90201-10012 | ||||
| 90467-08008 | ||||
| 90480-01027 | ||||
| 90480-25001 | ||||
| 90480-45002 | ||||
| 90950-01001 | ||||
| 90950-01002 | ||||
| 90950-01006 | ||||
| 90950-01028 | ||||
| 90950-01131 | ||||
| 90950-01133 | ||||
| 90950-01258 | ||||
| 90950-01324 | ||||
| 91611-40814 | ||||
| 91611-40816 | ||||
| 91631-40616 | ||||
| 94110-71000 | ||||
| 94512-01000 | ||||

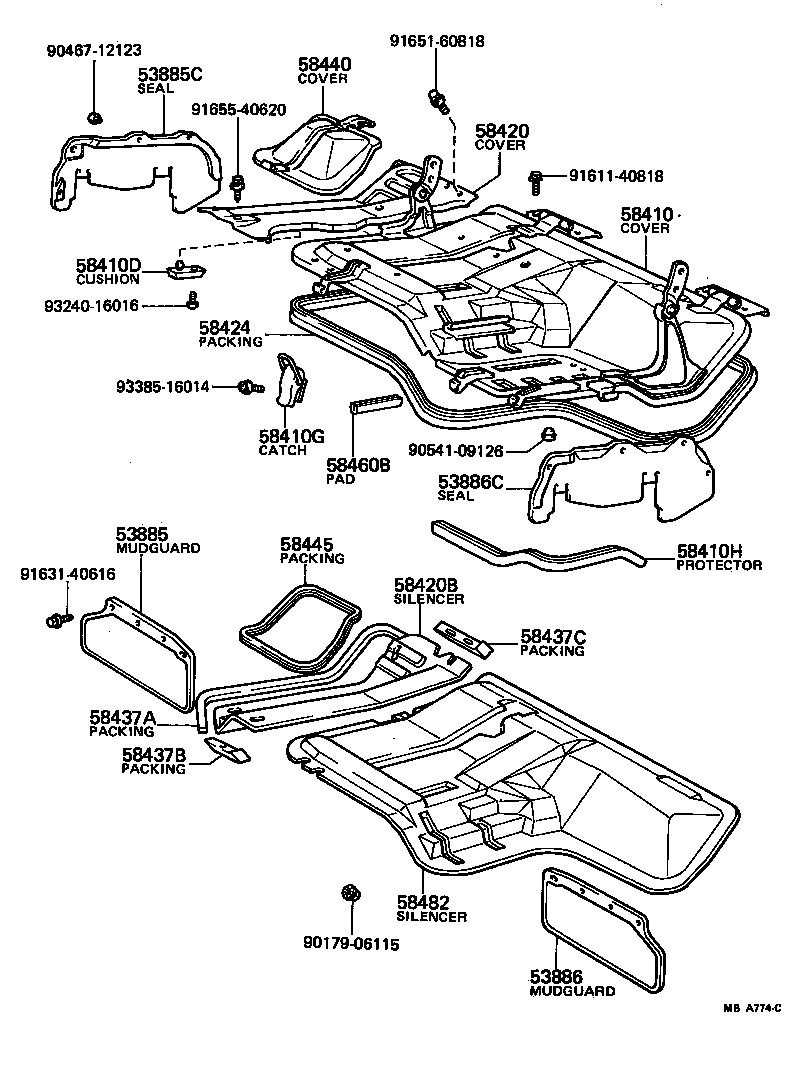

ILLUST NO. 2 OF 2(7910-8508)KM2#..V
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53885 - MUDGUARD, FRONT RH | ||||
| 53881-95700 |
CM20,KM2#,TM20,YM20,21..(V,WG)..(CS7,DLX,GXL,MTP,S,STD,SUP,SW,XL) |
1 | ||
| 53885C - SEAL, FENDER APRON MUDGUARD, RH | ||||
| 53885-95700 |
CM20,KM2#,TM20,YM20,21..V,WG |
1 | ||
| 53886 - MUDGUARD, FRONT LH | ||||
| 53881-95700 |
CM20,KM2#,TM20,YM20,21..(V,WG)..(CS7,DLX,GXL,MTP,S,STD,SUP,SW,XL) |
1 | ||
| 53886C - SEAL, FENDER APRON MUDGUARD, LH | ||||
| 53886-95700 |
CM20,KM2#,TM20,YM20,21..V,WG |
1 | ||
| 58410 - COVER, ENGINE SERVICE HOLE | ||||
| 58401-95721 |
KM21..V |
1 | ||
| 58410D - CUSHION, NO.1 | ||||
| 58445-95400 |
CM2#,KM2#,TM20,YM2# |
2 | ||
| 58410G - CATCH, ENGINE SERVICE HOLE COVER | ||||
| 71901-95706 |
CM20,TM20,YM20,21..V,WG LH |
1 | ||
| 58410H - PROTECTOR, ENGINE SERVICE HOLE COVER | ||||
| 58439-95700 |
CM25,KM2#,YM2# |
1 | ||
| 58420 - COVER ASSY, ENGINE SERVICE HOLE, NO.2 | ||||
| 58402-95708 |
KM21..V |
1 | ||
| 58402-95713 |
CM20,YM20,21..V,WG |
1 | ||
| 58420B - SILENCER, ENGINE SERVICE HOLE COVER, NO.2 | ||||
| 58472-95704 |
CM20,YM20,21..V,WG |
1 | ||
| 58472-95700 |
KM20;KM21..V |
1 | ||
| 58424 - PACKING, ENGINE SERVICE HOLE COVER, NO.1 | ||||
| 58435-95705 |
CM20,YM20,21..V,WG |
1 | ||
| 58435-95704 |
KM21..V |
1 | ||
| 58437A - PACKING, ENGINE SERVICE HOLE COVER SUB, NO.1 | ||||
| 58436-95701 |
CM2#,KM2#,TM20,YM2# |
1 | ||
| 58437B - PACKING, ENGINE SERVICE HOLE COVER SUB, NO.2 | ||||
| 58478-95700 |
CM25,26,KM2#,TM20,YM25 |
1 | ||
| 58478-95701 |
CM20,YM20,21..V,WG |
1 | ||
| 58437C - PACKING, ENGINE SERVICE HOLE COVER SUB, NO.3 | ||||
| 58479-95700 |
CM20,KM21,YM20,21..V,WG |
1 | ||
| 58440 - COVER ASSY, BATTERY SERVICE HOLE | ||||
| 58201-95703 |
KM2#..V |
1 | ||
| 58460B - PAD, ENGINE COVER | ||||
| 58426-95700 |
KM2#,TM20..V,WG |
2 | ||
| 58411-95A00 |
CM20,YM20,21..V,WG |
2 | ||
| 58482 - SILENCER, ENGINE COVER | ||||
| 58471-95700 |
KM2#..V |
1 | ||
| 58471-95704 |
YM20,21 |
1 | ||
| Common parts | ||||
| 90179-06115 | ||||
| 90467-12123 | ||||
| 90541-09126 | ||||
| 91611-40818 | ||||
| 91631-40616 | ||||
| 91651-60818 | ||||
| 91655-40620 | ||||
| 93240-16016 | ||||
| 93385-16014 | ||||

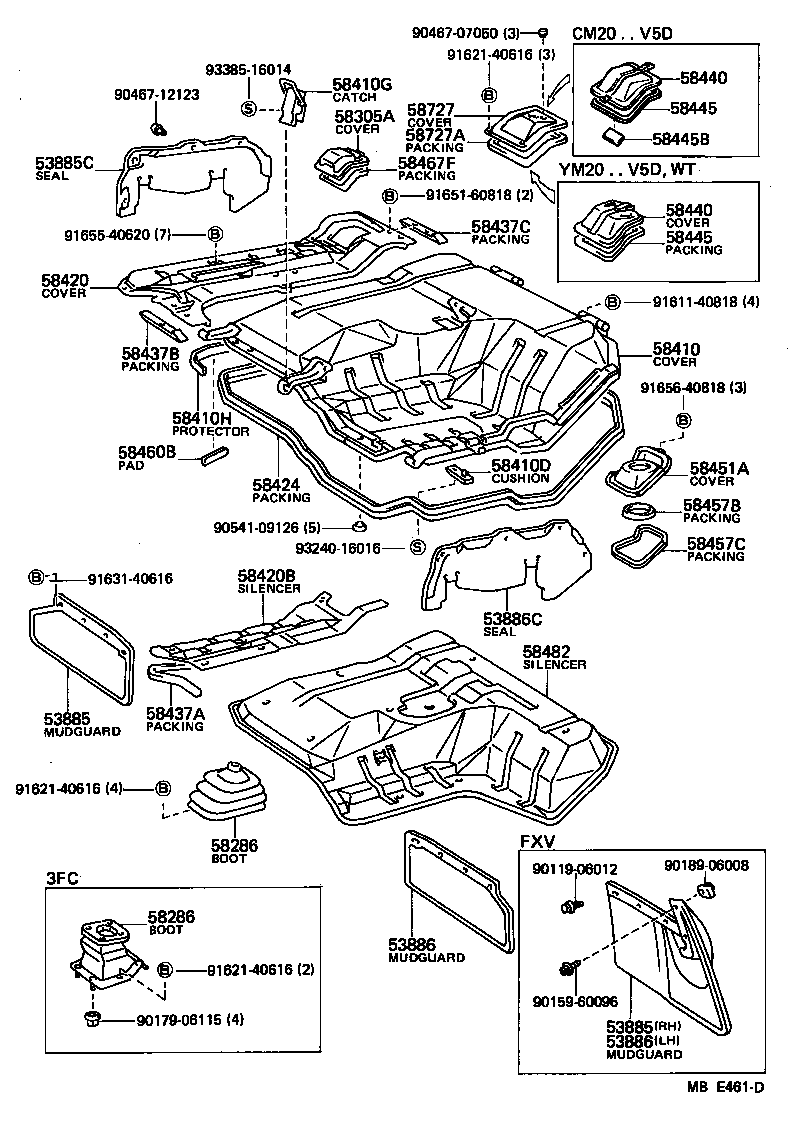

ILLUST NO. 2 OF 2(8210-8508)CM20,YM20,21..V,WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53885 - MUDGUARD, FRONT RH | ||||
| 53881-95700 |
CM20,KM2#,TM20,YM20,21..(V,WG)..(CS7,DLX,GXL,MTP,S,STD,SUP,SW,XL) |
1 | ||
| 53885 - MUDGUARD, FRONT RH | ||||
| 53881-95700 |
CM20,KM2#,TM20,YM20,21..(V,WG)..(CS7,DLX,GXL,MTP,S,STD,SUP,SW,XL) |
1 | ||
| 53885C - SEAL, FENDER APRON MUDGUARD, RH | ||||
| 53885-95700 |
CM20,KM2#,TM20,YM20,21..V,WG |
1 | ||
| 53886 - MUDGUARD, FRONT LH | ||||
| 53881-95700 |
CM20,KM2#,TM20,YM20,21..(V,WG)..(CS7,DLX,GXL,MTP,S,STD,SUP,SW,XL) |
1 | ||
| 53886 - MUDGUARD, FRONT LH | ||||
| 53881-95700 |
CM20,KM2#,TM20,YM20,21..(V,WG)..(CS7,DLX,GXL,MTP,S,STD,SUP,SW,XL) |
1 | ||
| 53886C - SEAL, FENDER APRON MUDGUARD, LH | ||||
| 53886-95700 |
CM20,KM2#,TM20,YM20,21..V,WG |
1 | ||
| 58305A - COVER SUB-ASSY, INSPECTION HOLE | ||||
| 58407-95701 |
CM20,YM20,21..V,WG |
1 | ||
| 58410 - COVER, ENGINE SERVICE HOLE | ||||
| 58401-95721 |
KM21..V |
1 | ||
| 58410D - CUSHION, NO.1 | ||||
| 58445-95400 |
CM2#,KM2#,TM20,YM2# |
2 | ||
| 58410G - CATCH, ENGINE SERVICE HOLE COVER | ||||
| 71901-95706 |
CM20,TM20,YM20,21..V,WG LH |
1 | ||
| 58410H - PROTECTOR, ENGINE SERVICE HOLE COVER | ||||
| 58439-95700 |
CM25,KM2#,YM2# |
1 | ||
| 58420 - COVER ASSY, ENGINE SERVICE HOLE, NO.2 | ||||
| 58402-95708 |
KM21..V |
1 | ||
| 58402-95713 |
CM20,YM20,21..V,WG |
1 | ||
| 58420B - SILENCER, ENGINE SERVICE HOLE COVER, NO.2 | ||||
| 58472-95704 |
CM20,YM20,21..V,WG |
1 | ||
| 58472-95700 |
KM20;KM21..V |
1 | ||
| 58424 - PACKING, ENGINE SERVICE HOLE COVER, NO.1 | ||||
| 58435-95705 |
CM20,YM20,21..V,WG |
1 | ||
| 58435-95704 |
KM21..V |
1 | ||
| 58437A - PACKING, ENGINE SERVICE HOLE COVER SUB, NO.1 | ||||
| 58436-95701 |
CM2#,KM2#,TM20,YM2# |
1 | ||
| 58437B - PACKING, ENGINE SERVICE HOLE COVER SUB, NO.2 | ||||
| 58478-95700 |
CM25,26,KM2#,TM20,YM25 |
1 | ||
| 58478-95701 |
CM20,YM20,21..V,WG |
1 | ||
| 58437C - PACKING, ENGINE SERVICE HOLE COVER SUB, NO.3 | ||||
| 58479-95700 |
CM20,KM21,YM20,21..V,WG |
1 | ||
| 58440 - COVER ASSY, BATTERY SERVICE HOLE | ||||
| 58201-95703 |
KM2#..V |
1 | ||
| 58440 - COVER ASSY, BATTERY SERVICE HOLE | ||||
| 58201-95703 |
KM2#..V |
1 | ||
| 58460B - PAD, ENGINE COVER | ||||
| 58426-95700 |
KM2#,TM20..V,WG |
2 | ||
| 58411-95A00 |
CM20,YM20,21..V,WG |
2 | ||
| 58467F - PACKING, INSPECTION HOLE | ||||
| 58467-95700 |
CM20,YM20,21..V,WG |
1 | ||
| 58482 - SILENCER, ENGINE COVER | ||||
| 58471-95700 |
KM2#..V |
1 | ||
| 58471-95704 |
YM20,21 |
1 | ||
| Common parts | ||||
| 90119-06012 | ||||
| 90159-60096 | ||||
| 90179-06115 | ||||
| 90189-06008 | ||||
| 90467-07050 | ||||
| 90467-12123 | ||||
| 90541-09126 | ||||
| 91611-40818 | ||||
| 91621-40616 | ||||
| 91631-40616 | ||||
| 91651-60818 | ||||
| 91655-40620 | ||||
| 91656-40818 | ||||
| 93240-16016 | ||||
| 93385-16014 | ||||
