KM21-JR (1982)

Toyota Lite/Townace Truck

Production Oct 1982 - Sep 1986
Engine 4KJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8210- )YM25 ; (8210- )YM20,21..CS7,FXV,GXL,MTP,S,SUP,SW,XL

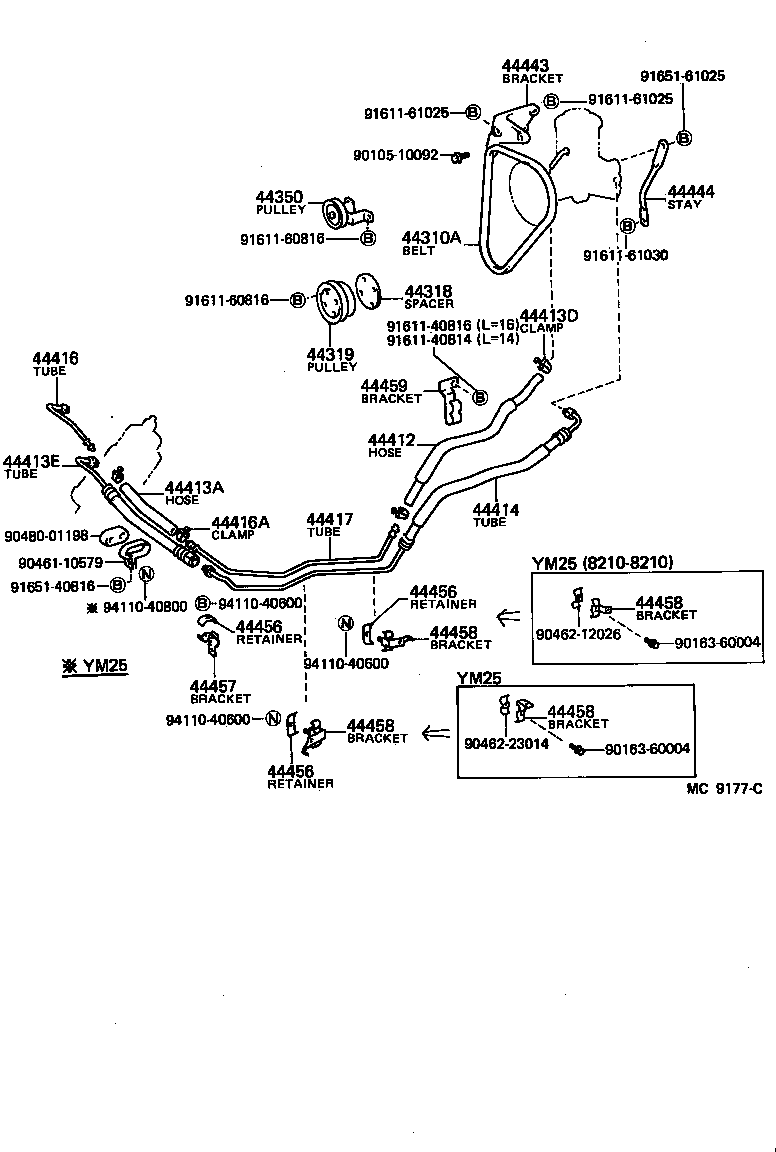

Click highlighted areas on diagram

diagram 44310A 44318 44319 44350 44412 44413A 44413D 44413E 44414 44416 44416A 44417 44443 44444 44456 44456 44456 44457 44458 44458 44458 44458 44459 9010510092 9016360004 9016360004 9046110579 9046212026 9046223014 9048001198 9161140814 9161140816 9161160816 9161160816 9161161025 9161161025 9161161030 9165140816 9165161025 9411040600 9411040600 9411040600 9411040800
Part # Description Qty Price
44310A - BELT, V(FOR VANE PUMP)
99332-01040

YM25;YM20,21..CS7,FXV,GXL,MTP,S,SUP,SW,XL

長さ=1040

 1
44318 - SPACER, VANE PUMP DRIVE PULLEY
44318-28012

YM25;YM20,21..CS7,FXV,GXL,MTP,S,SUP,SW,XL

 1
44319 - PULLEY, VANE PUMP DRIVE
44319-28013

YM25;YM20,21..CS7,FXV,GXL,MTP,S,SUP,SW,XL

 1
44350 - PULLEY ASSY, POWER STEERING IDLE
44350-28011

YM25;YM20,21..CS7,FXV,GXL,MTP,S,SUP,SW,XL

 1
44412 - HOSE, RETURN
44412-27010

YM25;YM20,21..CS7,FXV,GXL,MTP,S,SUP,SW,XL

 1
44413A - HOSE(FOR RETURN TUBE OUTLET)
90445-18089

YM25;YM20,21..CS7,FXV,GXL,MTP,S,SUP,SW,XL

 1
44413D - CLAMP(FOR RESERVOIR TANK INLET HOSE)
90460-01001

YM25;YM20,21..CS7,FXV,GXL,MTP,S,SUP,SW,XL

 2
44413E - TUBE, PRESSURE FEED, NO.1
44413-27010

YM25;YM20,21..CS7,FXV,GXL,MTP,S,SUP,SW,XL

 1
44414 - TUBE, PRESSURE FEED, NO.2
44414-27010

YM20,21..CS7,FXV,GXL,MTP,S,SUP,SW,XL

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-27010

YM25;YM20,21..FXV,GXL,MTP,S,SUP,XL

UNION SEAT(RETURN PORT)ID=6

 1
44416-27011

YM25;YM20,21..CS7,FXV,GXL,MTP,S,SUP,SW,XL

UNION SEAT(RETURN PORT)ID=3

 1
44416A - CLAMP(FOR RETURN HOSE)
90460-01001

YM25;YM20,21..CS7,FXV,GXL,MTP,S,SUP,SW,XL

 2
44417 - TUBE, RETURN, NO.2
44417-27010

YM20,21..CS7,FXV,GXL,MTP,S,SUP,SW,XL

 1
44443 - BRACKET, PUMP
44443-28011

YM25;YM20,21..CS7,FXV,GXL,MTP,S,SUP,SW,XL

 1
44444 - STAY, PUMP, REAR
44444-27010

YM25;YM20,21..CS7,FXV,GXL,MTP,S,SUP,SW,XL

 1
44456 - RETAINER, POWER STEERING TUBE SUPPORT, NO.1
44456-27010

YM20,21..CS7,FXV,GXL,MTP,S,SUP,SW,XL

 3
44456 - RETAINER, POWER STEERING TUBE SUPPORT, NO.1
44456-27010

YM20,21..CS7,FXV,GXL,MTP,S,SUP,SW,XL

 3
44456 - RETAINER, POWER STEERING TUBE SUPPORT, NO.1
44456-27010

YM20,21..CS7,FXV,GXL,MTP,S,SUP,SW,XL

 3
44457 - BRACKET, TUBE SUPPORT, NO.1
44457-27010

YM25;YM20,21..CS7,FXV,GXL,MTP,S,SUP,SW,XL

 1
44458 - BRACKET, TUBE SUPPORT, NO.2
44458-27010

YM20,21..CS7,FXV,GXL,MTP,S,SUP,SW,XL

 2
44458 - BRACKET, TUBE SUPPORT, NO.2
44458-27010

YM20,21..CS7,FXV,GXL,MTP,S,SUP,SW,XL

 2
44458 - BRACKET, TUBE SUPPORT, NO.2
44458-27010

YM20,21..CS7,FXV,GXL,MTP,S,SUP,SW,XL

 2
44458 - BRACKET, TUBE SUPPORT, NO.2
44458-27010

YM20,21..CS7,FXV,GXL,MTP,S,SUP,SW,XL

 2
44459 - BRACKET, TUBE SUPPORT, NO.3
44459-27030

YM25;YM20,21..CS7,FXV,GXL,MTP,S,SUP,SW,XL

 1
Common parts
90105-10092
90163-60004
90461-10579
90462-12026
90462-23014
90480-01198
91611-40814
91611-40816
91611-60816
91611-61025
91611-61030
91651-40816
91651-61025
94110-40600
94110-40800
