KM21-JDLT3 (1982)

Toyota Lite/Townace Truck

Production Oct 1982 - Sep 1986
Engine 4KJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

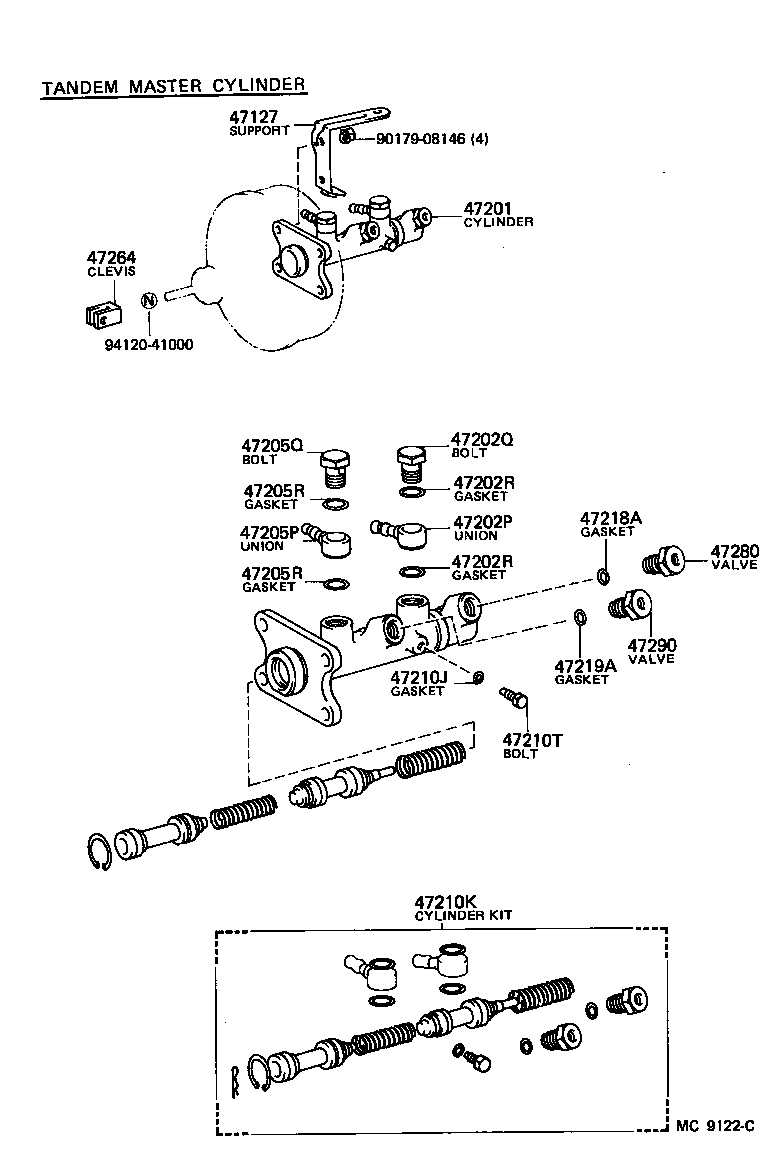

ILLUST NO. 1 OF 2(8210- )

Click highlighted areas on diagram

diagram 47127 47201 47202P 47202Q 47202R 47202R 47205P 47205Q 47205R 47205R 47210J 47210K 47210T 47218A 47219A 47264 47280 47290 9017908146 9412041000
Part # Description Qty Price
47127 - SUPPORT SUB-ASSY, BRAKE MASTER CYLINDER
55175-95708

CM2#,KM21,YM2#

 1
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-27080

CM2#,KM21,YM2#

 1
47202P - UNION, RESERVOIR(FOR BRAKE MASTER CYLINDER SIDE)
90405-10003

CM2#,KM2#,TM20,YM2#

 1
47202Q - BOLT, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE)
90401-16002

CM2#,KM2#,TM20,YM2#

 1
47202R - GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE)
90430-16242

CM2#,KM2#,TM20,YM2#

 2
47202R - GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE)
90430-16242

CM2#,KM2#,TM20,YM2#

 2
47205P - UNION, RESERVOIR(FOR BRAKE MASTER CYLINDER REAR SIDE)
90405-10003

CM2#,KM2#,TM20,YM2#

 1
47205Q - BOLT, RSVR UNION, NO.2(FOR BRAKE MASTER CYLINDER RR SID
90401-16002

CM2#,KM2#,TM20,YM2#

 1
47205R - GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER REAR
90430-16242

CM2#,KM2#,TM20,YM2#

 2
47205R - GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER REAR
90430-16242

CM2#,KM2#,TM20,YM2#

 2
47210J - GASKET(FOR MASTER CYLINDER)
90430-06104

CM2#,KM2#,TM20,YM2#

 1
47210K - CYLINDER KIT, BRAKE MASTER
04493-27060

CM2#,KM21,YM2#

 1
47210T - BOLT(FOR BRAKE MASTER CYLINDER)
90109-06008

CM2#,KM2#,TM20,YM2#

 1
47218A - GASKET(FOR FLUID OUTLET PLUG)
90430-09253

CM2#,KM2#,TM20,YM2#

 1
47219A - GASKET(FOR FLUID OUTLET PLUG REAR SIDE)
90430-09253

CM2#,KM2#,TM20,YM2#

 1
47264 - CLEVIS, MASTER CYLINDER PUSH ROD
47264-10080

CM2#,KM2#,TM20,YM2#

 1
47280 - VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK
47280-26030

CM2#,KM2#,TM20,YM2#

 1
47290 - VALVE ASSY, MASTER CYLINDER OUTLET(FOR REAR SIDE)
47280-26030

CM2#,KM2#,TM20,YM2#

 1
Common parts
90179-08146
94120-41000
