KM21-JDLT (1982)

Toyota Lite/Townace Truck

Production Oct 1982 - Sep 1986
Engine 4KJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8210- )CM2#,YM20,21..MTM

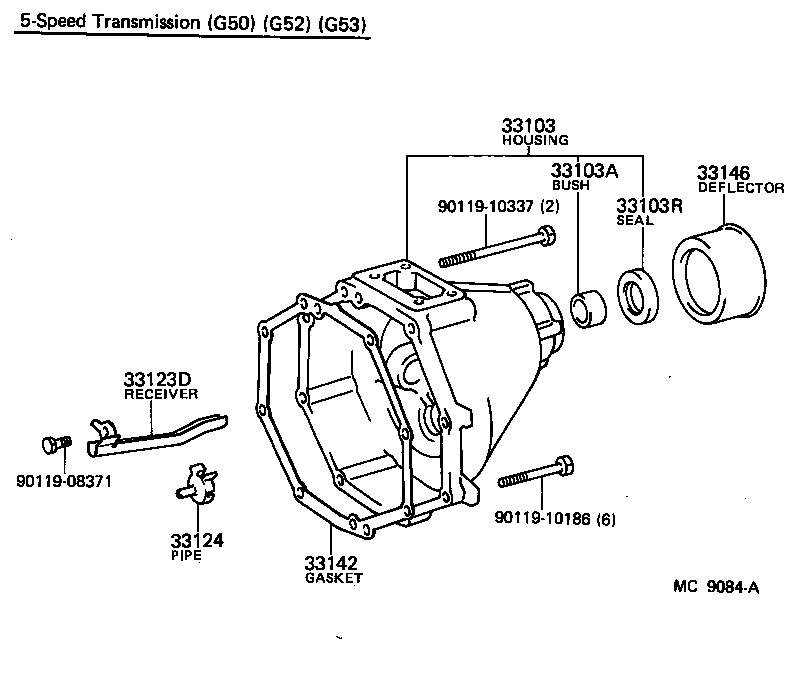

Click highlighted areas on diagram

diagram 33103 33103A 33103R 33123D 33124 33142 33146 9011908371 9011910186 9011910337
Part # Description Qty Price
33103 - HOUSING SUB-ASSY, EXTENSION(MTM)
33103-27010

KM2#

 1
33103-28010

CM2#,YM20,21..MTM

 1
33103A - BUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
90999-72023

CM2#,KM2#,TM20,YM2#..MTM

 1
33103R - SEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
90311-38043

CM2#,KM2#,TM20,YM2#..MTM

 1
33123D - RECEIVER, CASE COVER OIL(MTM)
33124-28010

CM2#,YM20,21..MTM

 1
33124 - PIPE, OIL RECEIVER(MTM)
33124-36010

CM2#,YM20,21..MTM

 1
33142 - GASKET, EXTENSION HOUSING(MTM)
33138-28020

CM2#,YM20,21..MTM

 1
33142-26010

KM2#,TM20,YM25..4F,4H

 1
33146 - DEFLECTOR, EXTENSION HOUSING DUST(MTM)
33146-30010

CM2#,KM2#,TM20,YM2#..MTM

 1
Common parts
90119-08371
90119-10186
90119-10337
