KM21-JDB (1982)

Toyota Lite/Townace Truck

Production Oct 1982 - Sep 1986
Engine 4KJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8210- )TR

Click highlighted areas on diagram

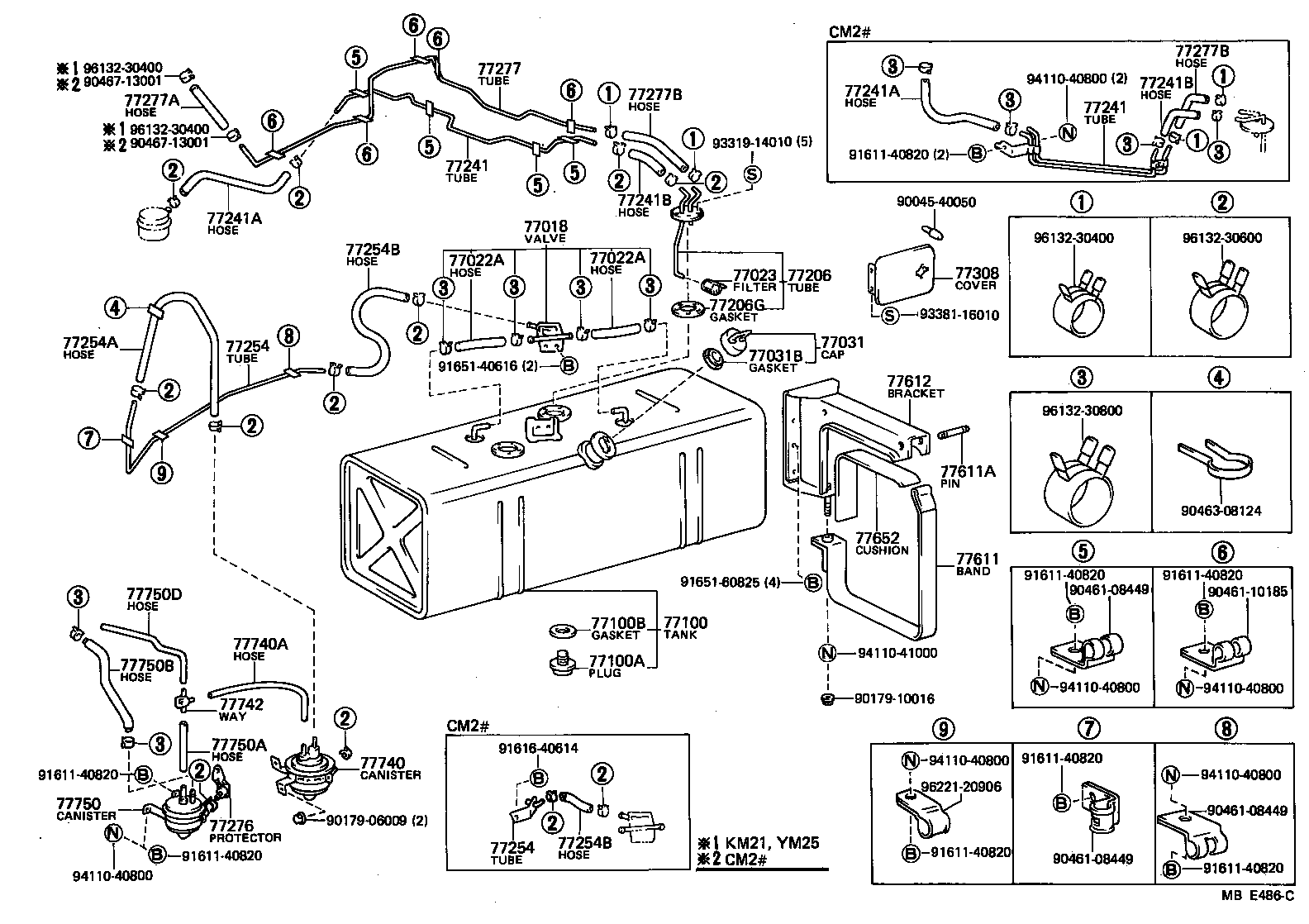

diagram 77018 77022A 77022A 77023 77031 77031B 77100 77100A 77100B 77206 77206G 77241 77241 77241A 77241A 77241B 77241B 77254 77254 77254A 77254B 77254B 77276 77277 77277A 77277B 77277B 77308 77611 77611A 77612 77652 77740 77740A 77742 77750 77750A 77750B 77750D 9004540050 9017906009 9017910016 9046108449 9046108449 9046108449 9046110185 9046308124 9046713001 9046713001 9161140820 9161140820 9161140820 9161140820 9161140820 9161140820 9161140820 9161140820 9161640614 9165140616 9165160825 9331914010 9338116010 9411040800 9411040800 9411040800 9411040800 9411040800 9411040800 9411041000 9613230400 9613230400 9613230400 9613230600 9613230800 9622120906
Part # Description Qty Price
77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE
77018-27010

CM2#,KM2#,YM25..TR

 1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
77259-27110

YM20,21

L=600

 1
95332-08020

CM2#,KM2#,YM25..TR

*H,L=130,内径=7.6

 2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
77259-27110

YM20,21

L=600

 1
95332-08020

CM2#,KM2#,YM25..TR

*H,L=130,内径=7.6

 2
77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE
77023-12050

KM21,YM2#

 1
77100A - PLUG(FOR FUEL TANK)
90341-20003

CM2#,KM21,YM25..TR

 1
77100B - GASKET(FOR FUEL TANK)
90430-20006

CM2#,KM21,YM25..TR

 1
77206 - TUBE SUB-ASSY, FUEL TANK SUCTION
77017-27070

KM21,YM25..TR

 1
77206G - GASKET (FOR FUEL TANK SUCTION TUBE)
77169-14020

CM2#,KM21,YM2#

 1
77241 - TUBE, FUEL MAIN, NO.1
77251-27031

KM21,YM25..TR

 1
77241 - TUBE, FUEL MAIN, NO.1
77251-27031

KM21,YM25..TR

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95332-06030

KM21,YM25..TR

*H,L=260

 1
95332-06020

YM20,21

*H,L=180

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95332-06030

KM21,YM25..TR

*H,L=260

 1
95332-06020

YM20,21

*H,L=180

 1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95332-06020

KM21..T3

*H,L=180

 1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95332-06020

KM21..T3

*H,L=180

 1
77254 - TUBE, FUEL EMISSION, NO.1
77263-27012

KM21,YM25..TR

 1
77254 - TUBE, FUEL EMISSION, NO.1
77263-27012

KM21,YM25..TR

 1
77254B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1)
95332-06040

KM2#,YM25..TR

*H,L=380

 1
77209-27010

KM21,YM25

 1
77254B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1)
95332-06040

KM2#,YM25..TR

*H,L=380

 1
77209-27010

KM21,YM25

 1
77276 - PROTECTOR, FUEL HOSE
77276-27030

KM21,YM25..TR

 1
77277 - TUBE, FUEL RETURN, NO.1
77255-27090

KM21,YM25..TR

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
95332-04040

YM20,21

*H,L=320

 1
95332-04040

KM21..TR

*H,L=380

 1
77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)
95332-04030

KM21..T3

*H,L=260

 1
77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)
95332-04030

KM21..T3

*H,L=260

 1
77611 - BAND, FUEL TANK
77601-27011

CM2#,KM21,YM25..TR

 2
77611A - PIN (FOR FUEL TANK BAND)
77629-25010

CM2#,KM2#,TM20,YM2#

 2
77612 - BRACKET SUB-ASSY, FUEL TANK
77501-27020

CM20,KM2#..T3

 2
77652 - CUSHION, FUEL TANK, NO.1
77651-27010

CM2#,KM2#,YM25..TR

 2
77651-27110

CM2#,KM21,YM25..TR

 2
77740 - CANISTER ASSY, CHARCOAL
77740-27140

KM21..TR

 1
77740-27070

YM20,21

 1
77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
95411-19930

KM21..TR

*H,L=100,ﾏｰｸ=#*

 1
95411-10630

YM20,21

*H,L=300,ﾏｰｸ=#6

 1
77750 - CANISTER ASSY, CHARCOAL
77740-27060

YM20,21

 1
77740-27100

KM21..TR

 1
77750A - HOSE, FUEL, NO.1 (FOR CHARCOAL CANISTER)
95411-19930

KM21..TR

*H,L=300,ﾏｰｸ=#*

 1
77750D - HOSE, FUEL, NO.4 (FOR CHARCOAL CANISTER)
95411-19930

KM21

*H,L=300,ﾏｰｸ=#*

 1
Common parts
90045-40050
90179-06009
90179-10016
90461-08449
90461-10185
90463-08124
90467-13001
91611-40820
91616-40614
91651-40616
91651-60825
93319-14010
93381-16010
94110-40800
94110-41000
96132-30400
96132-30600
96132-30800
96221-20906
