KM21-JDB (1982)

Toyota Lite/Townace Truck

Production Oct 1982 - Sep 1986

Engine 4KJ

Transmission 4H MTM

Displacement 2500cc

Power 168 HP (125 kW)

(8210- )T2,T3

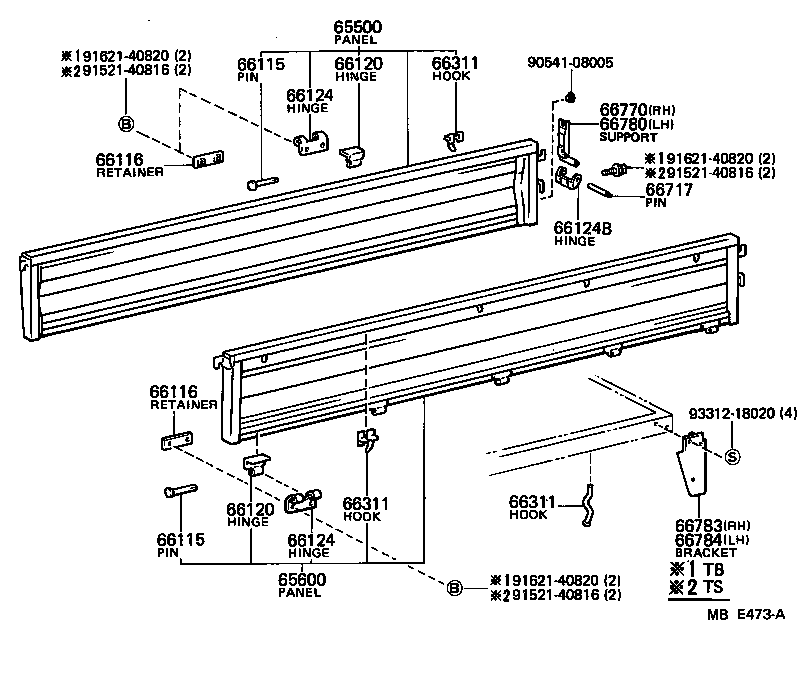

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
65500 - PANEL ASSY, REAR BODY SIDE, RH
65500-95701	KM21..T2,T3	10/1982 - 09/1986	1
65600 - PANEL ASSY, REAR BODY SIDE, LH
65600-95701	KM21..T2,T3	10/1982 - 09/1986	1
66115 - PIN, GATE HINGE
66119-95700	CM2#,KM21,YM25..T2,T3	09/1983 - 09/1986	10
66113-87402	CM2#,KM2#,YM25..T2,T3	10/1979 - 09/1983	10
66115 - PIN, GATE HINGE
66119-95700	CM2#,KM21,YM25..T2,T3	09/1983 - 09/1986	10
66113-87402	CM2#,KM2#,YM25..T2,T3	10/1979 - 09/1983	10
66116 - RETAINER, GATE HINGE, LOWER
66115-95700	CM2#,KM21,YM25..(T2,T3)..TS	01/1984 - 09/1986	10
66115-95701	CM2#,KM21,YM25..(T2,T3)..TS	10/1982 - 01/1984	10
66116 - RETAINER, GATE HINGE, LOWER
66115-95700	CM2#,KM21,YM25..(T2,T3)..TS	01/1984 - 09/1986	10
66115-95701	CM2#,KM21,YM25..(T2,T3)..TS	10/1982 - 01/1984	10
66120 - HINGE ASSY, SIDE GATE
65535-87401	CM2#,KM2#,YM25..T2,T3	10/1979 - 09/1986	10
66120 - HINGE ASSY, SIDE GATE
65535-87401	CM2#,KM2#,YM25..T2,T3	10/1979 - 09/1986	10
66124 - HINGE, SIDE GATE, FEMALE
66112-95700	CM2#,KM21,YM25..T2,T3	10/1982 - 09/1986	10
66124 - HINGE, SIDE GATE, FEMALE
66112-95700	CM2#,KM21,YM25..T2,T3	10/1982 - 09/1986	10
66311 - HOOK, ROPE
66311-87401	CM2#,KM2#,YM25..TR	10/1979 - 09/1986	10
66311 - HOOK, ROPE
66311-87401	CM2#,KM2#,YM25..TR	10/1979 - 09/1986	10
66311 - HOOK, ROPE
66311-87401	CM2#,KM2#,YM25..TR	10/1979 - 09/1986	10
Common parts
90541-08005
91521-40816
91621-40820
93312-18020
