KM21-JDB (1982)

Toyota Lite/Townace Truck

Production Oct 1982 - Sep 1986
Engine 4KJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8210- )TS

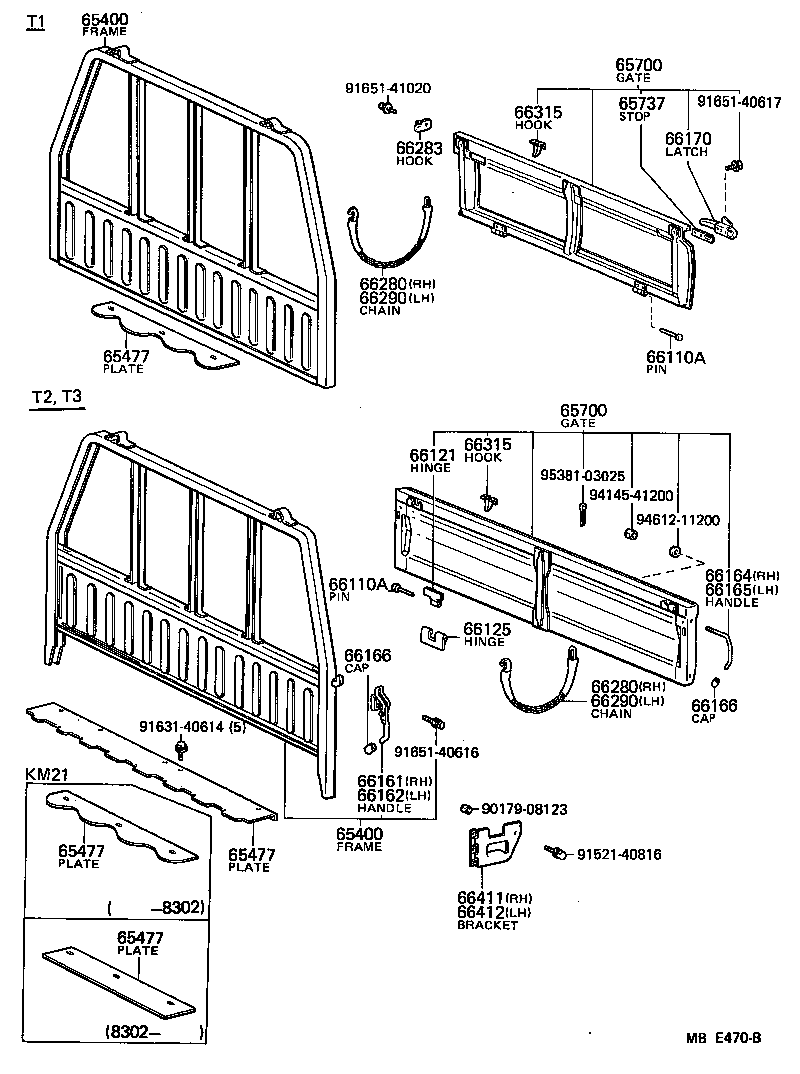

Click highlighted areas on diagram

diagram 65400 65400 65477 65477 65477 65477 65700 65700 65737 66110A 66110A 66121 66125 66161 66162 66164 66165 66166 66166 66170 66280 66280 66283 66290 66290 66315 66315 66411 66412 9017908123 9152140816 9163140614 9165140616 9165140617 9165141020 9414541200 9461211200 9538103025
Part # Description Qty Price
65400 - FRAME ASSY, REAR BODY GUARD
65400-95701

KM21..T3

 1
65400 - FRAME ASSY, REAR BODY GUARD
65400-95701

KM21..T3

 1
65477 - PLATE, BAFFLE
65477-87402

KM21..TS

 1
65457-95700

KM21..TS

 1
65477 - PLATE, BAFFLE
65477-87402

KM21..TS

 1
65457-95700

KM21..TS

 1
65477 - PLATE, BAFFLE
65477-87402

KM21..TS

 1
65457-95700

KM21..TS

 1
65477 - PLATE, BAFFLE
65477-87402

KM21..TS

 1
65457-95700

KM21..TS

 1
65700 - GATE ASSY, REAR BODY TAIL
65700-95702

CM2#,KM21,YM25..(T2,T3)..TS

 1
65700 - GATE ASSY, REAR BODY TAIL
65700-95702

CM2#,KM21,YM25..(T2,T3)..TS

 1
66110A - PIN, TAIL GATE HINGE
66113-87402

CM2#,KM2#,YM25..T2,T3

 3
66113-87402

CM2#,KM21,YM25..(T2,T3)..TS

 3
66110A - PIN, TAIL GATE HINGE
66113-87402

CM2#,KM2#,YM25..T2,T3

 3
66113-87402

CM2#,KM21,YM25..(T2,T3)..TS

 3
66121 - HINGE, TAIL GATE, MALE
66111-87404

CM2#,KM21,YM25..(T2,T3)..TS

 3
66125 - HINGE, TAIL GATE, FEMALE
66112-87402

CM2#,KM21,YM25..(T2,T3)..TS

 3
66164 - HANDLE, TAIL GATE LATCH, RH
66163-95700

CM2#,KM21,YM25..T2,T3

 1
66165 - HANDLE, TAIL GATE LATCH, LH
66164-95700

CM2#,KM21,YM25..T2,T3

 1
66166 - CAP, GATE LATCH HANDLE
66165-87402

CM2#,KM2#,YM25..T2,T3

 4
66166 - CAP, GATE LATCH HANDLE
66165-87402

CM2#,KM2#,YM25..T2,T3

 4
66280 - CHAIN ASSY, TAIL GATE, RH
66280-95700

CM2#,KM21,YM25..TR

 1
66280 - CHAIN ASSY, TAIL GATE, RH
66280-95700

CM2#,KM21,YM25..TR

 1
66290 - CHAIN ASSY, TAIL GATE, LH
66280-95700

CM2#,KM21,YM25..TR

 1
66290 - CHAIN ASSY, TAIL GATE, LH
66280-95700

CM2#,KM21,YM25..TR

 1
66315 - HOOK, ROPE
66311-87401

CM2#,KM2#,YM25..TR

 3
66315 - HOOK, ROPE
66311-87401

CM2#,KM2#,YM25..TR

 3
66411 - BRACKET, GUARD FRAME, RH
66411-95700

CM2#,KM21,YM25..T2,T3

 1
66412 - BRACKET, GUARD FRAME, LH
66412-95700

CM2#,KM21,YM25..T2,T3

 1
Common parts
90179-08123
91521-40816
91631-40614
91651-40616
91651-40617
91651-41020
94145-41200
94612-11200
95381-03025
