KM21-JDB (1982)
Toyota Lite/Townace Truck
(7910-8608)4KJ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-22022 |
4KJ..KM2# 12V 0.6KW |
1 | ||
| 28011-15010 |
13TU,4KJ..KM2#,TM20 12V 0.8KW |
1 | ||
| 28011-13060 |
4KJ..KM21 12V 0.6KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-13020 |
4KJ..KM2# 12V 0.8KW,12V 0.8KW |
1 | ||
| 28100-24031 |
4KJ..KM2# 12V 0.6KW,12V 0.6KW |
1 | ||
| 28100-13060 |
4KJ..KM21 12V 0.6KW,12V 0.6KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-13060 |
4KJ..KM21 12V 0.6KW |
1 | ||
| 28110-13020 |
4KJ..KM2# 12V 0.8KW |
1 | ||
| 28110-24010 |
4KJ..KM2# 12V 0.6KW |
1 | ||
| 28111 - BUSH(FOR STARTER HOUSING) | ||||
| 90099-10158 |
4KJ..KM21 12V 0.6KW |
1 | ||
| 28111-51011 |
4KJ..KM21 12V 0.8KW |
1 | ||
| 28113 - LEVER, STARTER PINION DRIVE | ||||
| 28113-15011 |
13TU,4KJ..KM2#,TM20 12V 0.8KW |
1 | ||
| 28113-13060 |
4KJ..KM21 12V 0.6KW |
1 | ||
| 28113-41011 |
4KJ..KM2# 12V 0.6KW |
1 | ||
| 28114 - PIN, STARTER DRIVE LEVER SET | ||||
| 28114-25010 |
4KJ..KM2# 12V 0.6KW |
1 | ||
| 28117 - RUBBER(FOR STARTER YOKE) | ||||
| 28117-15050 |
4KJ..KM2# 12V 0.6KW |
1 | ||
| 28118 - PLATE(FOR STARTER YOKE) | ||||
| 28118-41013 |
4KJ..KM2# 12V 0.6KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-24030 |
4KJ..KM2# 12V 0.6KW |
1 | ||
| 28120-26140 |
13TU,4KJ..KM2#,TM20 12V 0.8KW |
1 | ||
| 28120-13060 |
4KJ..KM21 12V 0.6KW |
1 | ||
| 28121 - COIL, STARTER FIELD | ||||
| 28121-22011 |
4KJ..KM2# 12V 0.6KW |
1 | ||
| 28123 - CORE, STARTER POLE | ||||
| 28123-10011 |
4KJ..KM2# 12V 0.6KW |
4 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-13060 |
4KJ..KM21 12V 0.6KW |
1 | ||
| 28130-21011 |
4KJ..KM2# 12V 0.6KW |
1 | ||
| 28130-13020 |
4KJ..KM2# 12V 0.8KW |
1 | ||
| 28131 - BUSH, COMMUTATOR END FRAME | ||||
| 90099-00157 |
4KJ..KM21 12V 0.6KW |
1 | ||
| 90099-10040 |
4KJ..KM2# U/S 0.5,12V 0.6KW |
1 | ||
| 90099-10039 |
4KJ..KM2# U/S 0.3,12V 0.6KW |
1 | ||
| 28131-20010 |
4KJ..KM2# STD,12V 0.6KW |
1 | ||
| 28133 - COVER, BEARING(FOR END FRAME) | ||||
| 28132-41011 |
4KJ..KM2# 12V 0.6KW |
1 | ||
| 28132-15010 |
13TU,4KJ..KM2#,TM20 12V 0.8KW |
1 | ||
| 28136 - PLATE, STARTER LOCK | ||||
| 28136-15010 |
13TU,4KJ..KM2#,TM20 12V 0.8KW |
1 | ||
| 28136-41011 |
4KJ..KM2# 12V 0.6KW |
1 | ||
| 28138 - RUBBER(FOR STARTER BEARING COVER) | ||||
| 28138-15010 |
13TU,4KJ..KM2#,TM20 12V 0.8KW |
1 | ||
| 28138-41011 |
4KJ..KM2# 12V 0.6KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-15010 |
13TU,4KJ..KM2#,TM20 12V 0.8KW |
1 | ||
| 28140-22011 |
4KJ..KM2# 12V 0.6KW |
1 | ||
| 28142 - BRUSH, STARTER | ||||
| 28142-10011 |
4KJ..KM2# 12V 0.6KW |
2 | ||
| 28142-10020 |
4KJ..KM21 12V 0.6KW |
4 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 28143-40010 |
4KJ..KM2# 12V 0.6KW |
4 | ||
| 28143-10020 |
4KJ..KM21 12V 0.6KW |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-37010 |
4KJ..KM21 12V 0.8KW |
1 | ||
| 28150-24060 |
4KJ..KM2# 12V 0.6KW |
1 | ||
| 28150-10020 |
4KJ..KM21 12V 0.6KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-22011 |
4KJ..KM2# 12V 0.6KW |
1 | ||
| 28160-10020 |
4KJ..KM21 12V 0.6KW |
1 | ||
| 28160-15010 |
13TU,4KJ..KM2#,TM20 12V 0.8KW |
1 | ||
| 28162 - SPRING, STARTER BRAKE | ||||
| 28162-15010 |
13TU,4KJ..KM2#,TM20 12V 0.8KW |
1 | ||
| 28162-41011 |
4KJ..KM2# 12V 0.6KW |
1 | ||
| 28163 - NUT OR COLLAR, PINION STOP, STARTER | ||||
| 28163-40011 |
13TU,4KJ..KM2#,TM20 12V 0.6KW,0.8KW |
1 | ||
| 28163-10020 |
4KJ..KM21 12V 0.6KW |
2 | ||
| 28163-40011 |
4KJ..KM21 12V 0.8KW |
1 | ||
| 28163A - RING, SNAP(FOR STARTER PINION STOP NUT) | ||||
| 90099-07124 |
4KJ..KM21 12V 0.6KW |
1 | ||
| 90099-07047 |
4KJ..KM21 12V 0.8KW |
1 | ||
| 90099-07047 |
13TU,4KJ..KM2#,TM20 12V 0.6KW,0.8KW |
1 | ||
| 28199 - COVER, STARTER | ||||
| 28199-26131 |
13TU,4KJ..KM2#,TM20 12V 0.8KW |
1 | ||
| 28199-24030 |
4KJ..KM2# 12V 0.6KW |
1 | ||
| 28159-13060 |
4KJ..KM21 12V 0.6KW |
1 | ||
| 28199-15110 |
4KJ..KM21 12V 0.8KW |
1 | ||
| Common parts | ||||
| 90093-00518 | ||||
| 90094-00502 | ||||
| 90094-00602 | ||||
| 90099-00102 | ||||
| 90099-00111 | ||||
| 90099-00902 | ||||
| 90099-01090 | ||||
| 90099-02169 | ||||
| 90099-04269 | ||||
| 90099-04272 | ||||
| 90099-05129 | ||||
| 90179-08146 | ||||
| 91611-41035 | ||||
| 91611-61035 | ||||
| 94110-40800 | ||||
| 94115-40500 | ||||
| 94511-00800 | ||||

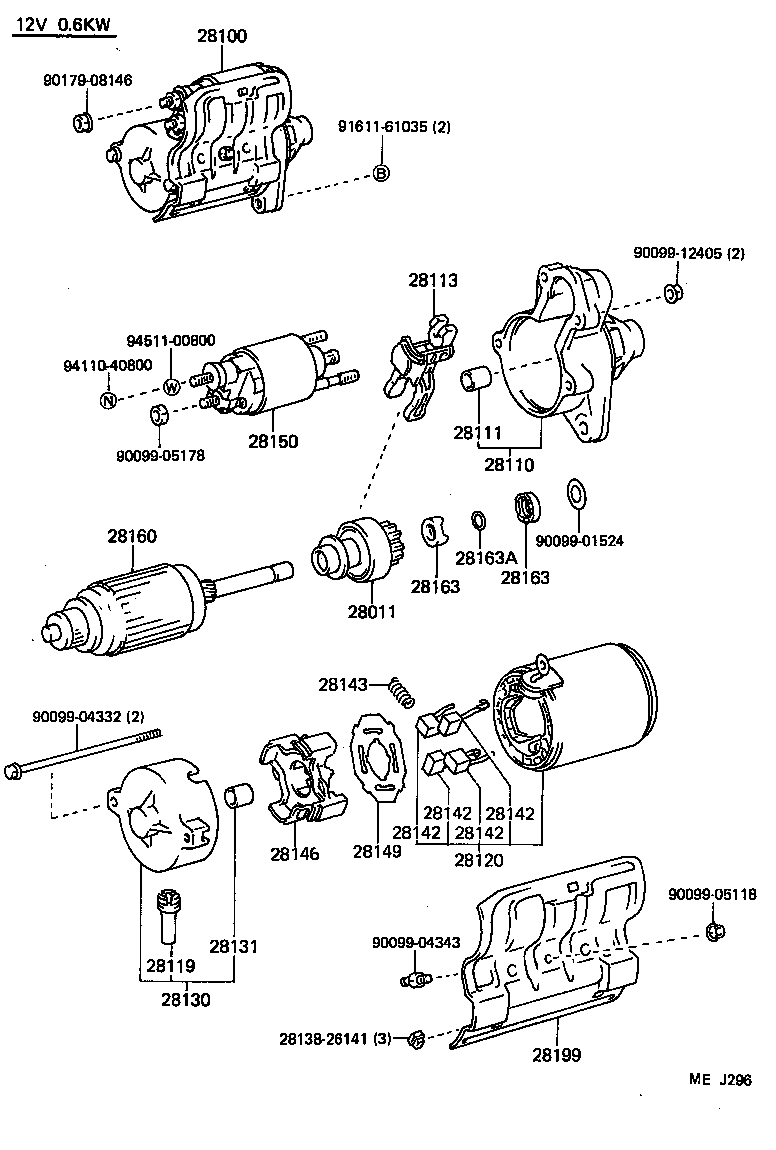

(8608- )4KJ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-22022 |
4KJ..KM2# 12V 0.6KW |
1 | ||
| 28011-15010 |
13TU,4KJ..KM2#,TM20 12V 0.8KW |
1 | ||
| 28011-13060 |
4KJ..KM21 12V 0.6KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-13020 |
4KJ..KM2# 12V 0.8KW,12V 0.8KW |
1 | ||
| 28100-24031 |
4KJ..KM2# 12V 0.6KW,12V 0.6KW |
1 | ||
| 28100-13060 |
4KJ..KM21 12V 0.6KW,12V 0.6KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-13060 |
4KJ..KM21 12V 0.6KW |
1 | ||
| 28110-13020 |
4KJ..KM2# 12V 0.8KW |
1 | ||
| 28110-24010 |
4KJ..KM2# 12V 0.6KW |
1 | ||
| 28111 - BUSH(FOR STARTER HOUSING) | ||||
| 90099-10158 |
4KJ..KM21 12V 0.6KW |
1 | ||
| 28111-51011 |
4KJ..KM21 12V 0.8KW |
1 | ||
| 28113 - LEVER, STARTER PINION DRIVE | ||||
| 28113-15011 |
13TU,4KJ..KM2#,TM20 12V 0.8KW |
1 | ||
| 28113-13060 |
4KJ..KM21 12V 0.6KW |
1 | ||
| 28113-41011 |
4KJ..KM2# 12V 0.6KW |
1 | ||
| 28119 - COVER, STARTER END FRAME | ||||
| 28199-77090 |
13TU,4KJ..KM2#,TM20 12V 0.8KW |
1 | ||
| 28199-15090 |
4KJ..KM21 12V 0.6KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-24030 |
4KJ..KM2# 12V 0.6KW |
1 | ||
| 28120-26140 |
13TU,4KJ..KM2#,TM20 12V 0.8KW |
1 | ||
| 28120-13060 |
4KJ..KM21 12V 0.6KW |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-13060 |
4KJ..KM21 12V 0.6KW |
1 | ||
| 28130-21011 |
4KJ..KM2# 12V 0.6KW |
1 | ||
| 28130-13020 |
4KJ..KM2# 12V 0.8KW |
1 | ||
| 28131 - BUSH, COMMUTATOR END FRAME | ||||
| 90099-00157 |
4KJ..KM21 12V 0.6KW |
1 | ||
| 90099-10040 |
4KJ..KM2# U/S 0.5,12V 0.6KW |
1 | ||
| 90099-10039 |
4KJ..KM2# U/S 0.3,12V 0.6KW |
1 | ||
| 28131-20010 |
4KJ..KM2# STD,12V 0.6KW |
1 | ||
| 28142 - BRUSH, STARTER | ||||
| 28142-10011 |
4KJ..KM2# 12V 0.6KW |
2 | ||
| 28142-10020 |
4KJ..KM21 12V 0.6KW |
4 | ||
| 28142 - BRUSH, STARTER | ||||
| 28142-10011 |
4KJ..KM2# 12V 0.6KW |
2 | ||
| 28142-10020 |
4KJ..KM21 12V 0.6KW |
4 | ||
| 28142 - BRUSH, STARTER | ||||
| 28142-10011 |
4KJ..KM2# 12V 0.6KW |
2 | ||
| 28142-10020 |
4KJ..KM21 12V 0.6KW |
4 | ||
| 28142 - BRUSH, STARTER | ||||
| 28142-10011 |
4KJ..KM2# 12V 0.6KW |
2 | ||
| 28142-10020 |
4KJ..KM21 12V 0.6KW |
4 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 28143-40010 |
4KJ..KM2# 12V 0.6KW |
4 | ||
| 28143-10020 |
4KJ..KM21 12V 0.6KW |
4 | ||
| 28146 - HOLDER, STARTER BRUSH | ||||
| 28149-10020 |
4KJ..KM21 12V 0.6KW |
1 | ||
| 28149 - PLATE, STARTER | ||||
| 28141-10020 |
4KJ..KM21 12V 0.6KW |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-37010 |
4KJ..KM21 12V 0.8KW |
1 | ||
| 28150-24060 |
4KJ..KM2# 12V 0.6KW |
1 | ||
| 28150-10020 |
4KJ..KM21 12V 0.6KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-22011 |
4KJ..KM2# 12V 0.6KW |
1 | ||
| 28160-10020 |
4KJ..KM21 12V 0.6KW |
1 | ||
| 28160-15010 |
13TU,4KJ..KM2#,TM20 12V 0.8KW |
1 | ||
| 28163 - NUT OR COLLAR, PINION STOP, STARTER | ||||
| 28163-40011 |
13TU,4KJ..KM2#,TM20 12V 0.6KW,0.8KW |
1 | ||
| 28163-10020 |
4KJ..KM21 12V 0.6KW |
2 | ||
| 28163-40011 |
4KJ..KM21 12V 0.8KW |
1 | ||
| 28163 - NUT OR COLLAR, PINION STOP, STARTER | ||||
| 28163-40011 |
13TU,4KJ..KM2#,TM20 12V 0.6KW,0.8KW |
1 | ||
| 28163-10020 |
4KJ..KM21 12V 0.6KW |
2 | ||
| 28163-40011 |
4KJ..KM21 12V 0.8KW |
1 | ||
| 28163A - RING, SNAP(FOR STARTER PINION STOP NUT) | ||||
| 90099-07124 |
4KJ..KM21 12V 0.6KW |
1 | ||
| 90099-07047 |
4KJ..KM21 12V 0.8KW |
1 | ||
| 90099-07047 |
13TU,4KJ..KM2#,TM20 12V 0.6KW,0.8KW |
1 | ||
| 28199 - COVER, STARTER | ||||
| 28199-26131 |
13TU,4KJ..KM2#,TM20 12V 0.8KW |
1 | ||
| 28199-24030 |
4KJ..KM2# 12V 0.6KW |
1 | ||
| 28159-13060 |
4KJ..KM21 12V 0.6KW |
1 | ||
| 28199-15110 |
4KJ..KM21 12V 0.8KW |
1 | ||
| Common parts | ||||
| 28138-26141 | ||||
| 90099-01524 | ||||
| 90099-04332 | ||||
| 90099-04343 | ||||
| 90099-05118 | ||||
| 90099-05178 | ||||
| 90099-12405 | ||||
| 90179-08146 | ||||
| 91611-61035 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
