KM21-JDB (1982)
Toyota Lite/Townace Truck
Production
Oct 1982
-
Sep 1986
Engine
4KJ
Transmission
4H MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8210-8508)4KJ

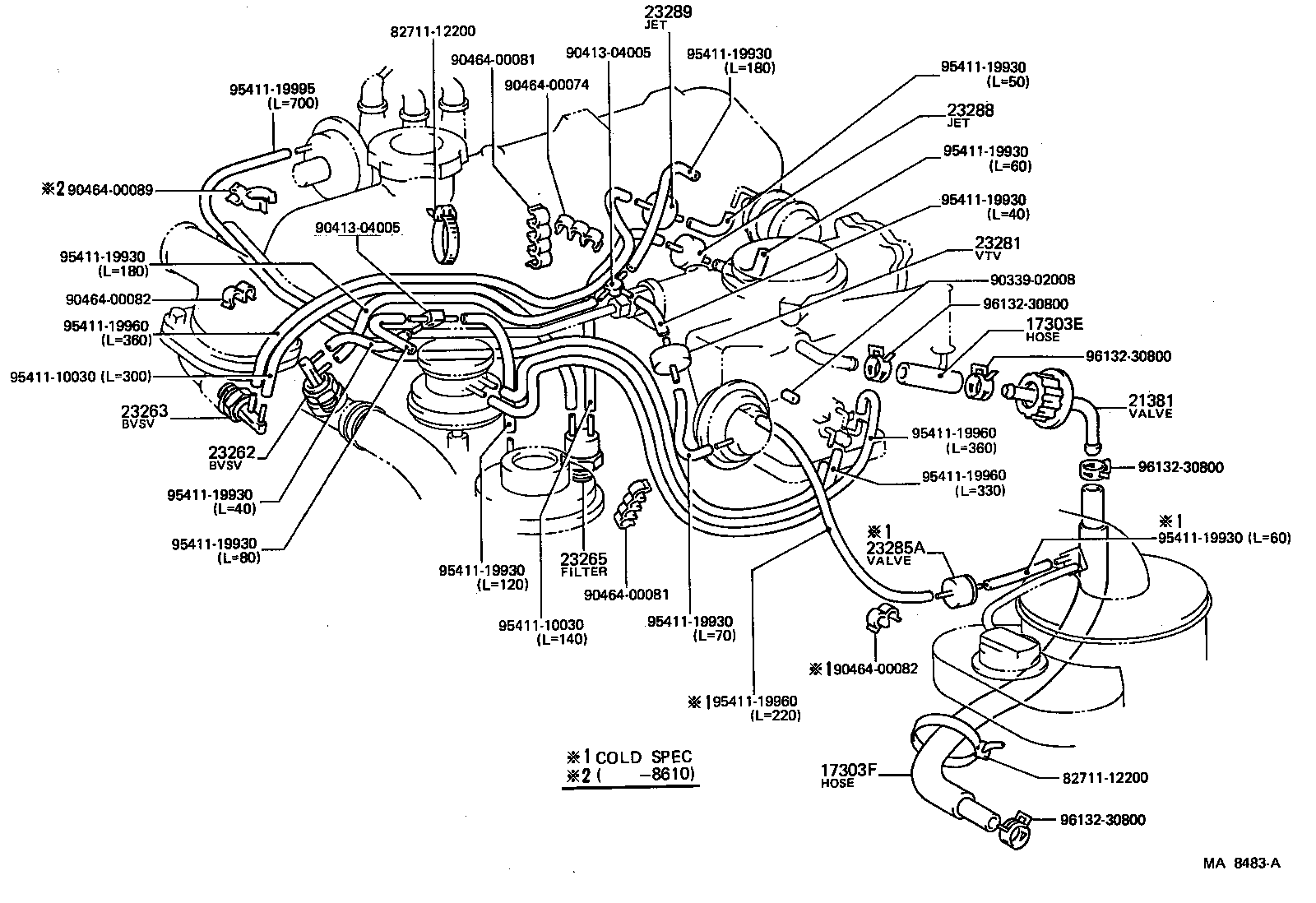

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303E - HOSE, NO.1(FOR AIR PIPE) | ||||
| 90445-14079 |
4KJ..KM21 |
1 | ||
| 17303F - HOSE, NO.2(FOR AIR PIPE) | ||||
| 90447-14003 |
4KJ..KM21..TR |
1 | ||
| 21381 - BIMETAL, THERMOSTATIC | ||||
| 21381-13030 |
4KJ..KM21 |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-05051 |
4KJ..KM21 |
1 | ||
| 23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2 | ||||
| 25820-13010 |
4KJ..KM21 |
1 | ||
| 90925-05074 |
4KJ..KM21 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11023 |
4KJ..KM21 |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01094 |
4KJ..KM21 |
1 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
4KJ..KM21 COLD SPEC,W/HOT AIR INTAKE |
1 | ||
| 23288 - JET, NO.1 | ||||
| 90925-04006 |
4KJ..KM2# YELLOW |
2 | ||
| 23289 - JET, NO.2 | ||||
| 90925-04005 |
4KJ..KM21 BLUE |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 90339-02008 | ||||
| 90413-04005 | ||||
| 90464-00074 | ||||
| 90464-00081 | ||||
| 90464-00082 | ||||
| 90464-00089 | ||||
| 90467-13007 | ||||
| 95411-10030 | ||||
| 95411-10195 | ||||
| 95411-10230 | ||||
| 95411-10360 | ||||
| 95411-10460 | ||||
| 95411-10530 | ||||
| 95411-10630 | ||||
| 95411-10730 | ||||
| 95411-10830 | ||||
| 95411-19930 | ||||
| 95411-19960 | ||||
| 96132-30800 | ||||
(8508- )4KJ
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303E - HOSE, NO.1(FOR AIR PIPE) | ||||
| 90445-14079 |
4KJ..KM21 |
1 | ||
| 17303F - HOSE, NO.2(FOR AIR PIPE) | ||||
| 90447-14003 |
4KJ..KM21..TR |
1 | ||
| 21381 - BIMETAL, THERMOSTATIC | ||||
| 21381-13030 |
4KJ..KM21 |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-05051 |
4KJ..KM21 |
1 | ||
| 23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2 | ||||
| 25820-13010 |
4KJ..KM21 |
1 | ||
| 90925-05074 |
4KJ..KM21 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11023 |
4KJ..KM21 |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01094 |
4KJ..KM21 |
1 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
4KJ..KM21 COLD SPEC,W/HOT AIR INTAKE |
1 | ||
| 23288 - JET, NO.1 | ||||
| 90925-04006 |
4KJ..KM2# YELLOW |
2 | ||
| 23289 - JET, NO.2 | ||||
| 90925-04005 |
4KJ..KM21 BLUE |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 90339-02008 | ||||
| 90413-04005 | ||||
| 90464-00074 | ||||
| 90464-00081 | ||||
| 90464-00082 | ||||
| 90464-00089 | ||||
| 95411-10030 | ||||
| 95411-19930 | ||||
| 95411-19960 | ||||
| 95411-19995 | ||||
| 96132-30800 | ||||
