KM21-JD3 (1982)
Toyota Lite/Townace Truck

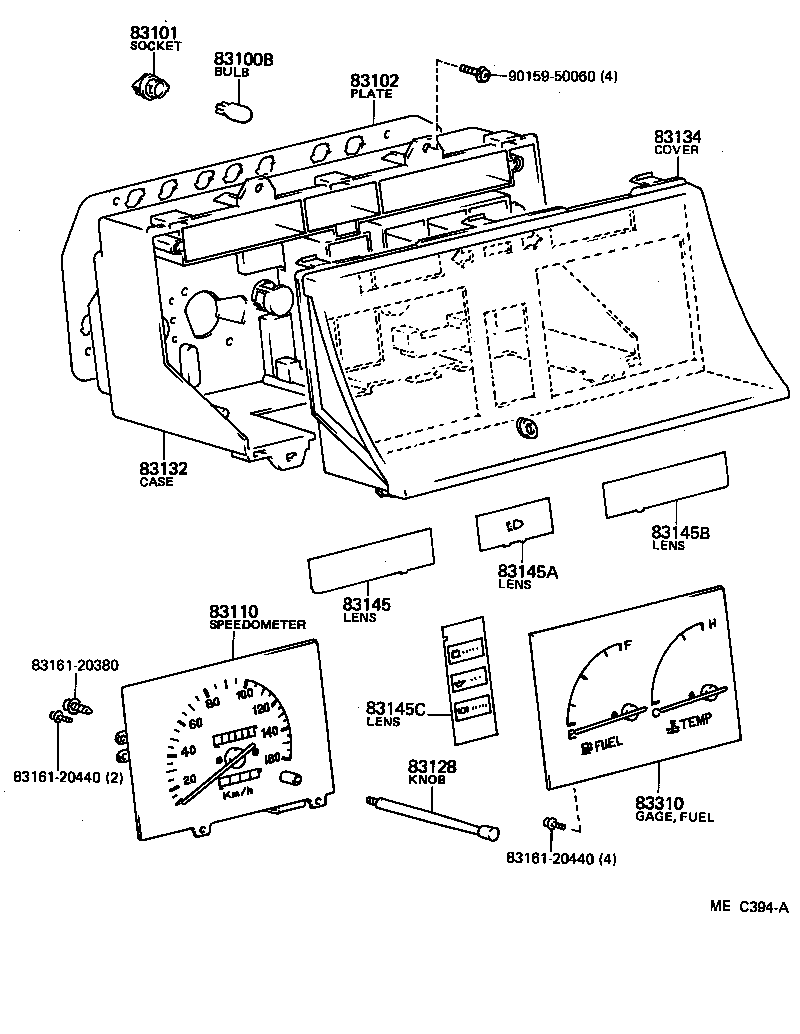

ILLUST NO. 1 OF 3(8210- )DLX,STD,SW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
CM2#,KM2#,TM20,YM2# 12V 3.4W,12V 3.4W |
16 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
CM2#,KM2#,TM20,YM2# 12V 3.4W |
16 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-95704 |
KM21,YM20,21..CS7,MTP,S,SUP,XL |
1 | ||
| 83247-95703 |
KM21,YM21,25..DLX,STD,SW |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-95705 |
CM20,KM21,YM20,21..CS7,FXV,GXL,MTP,S,SUP,XL |
1 | ||
| 83110-95704 |
CM2#,KM21,YM21,25..DLX,STD,SW |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-95J00 |
CM2#,KM21,YM2# |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-95J00 |
CM2#,KM21,YM21,25..DLX,STD,SW |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-95735 |
CM2#,KM21,YM21,25..DLX,STD,SW W/METER GLASS |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-95700 |
KM21,YM25..DLX,STD |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-95701 |
CM2#,KM21,YM21,25..DLX,STD,SW |
1 | ||
| 83145-95707 |
CM20,KM21,YM20,21..CS7,FXV,GXL,MTP,S,SUP,XL |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83145-95702 |
CM2#,KM21,YM21,25..DLX,STD,SW |
1 | ||
| 83145-95708 |
CM20,KM21,YM20,21..CS7,MTP,S,SUP,XL |
1 | ||
| 83145C - LENS, METER, NO.4 | ||||
| 83145-95703 |
CM2#,KM21,YM21,25..DLX,STD,SW |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-95705 |
CM20,KM21,YM20,21..CS7,MTP,S,SUP,XL |
1 | ||
| 83243-95705 |
CM20,KM21,YM20,21..MTP,S,SUP,XL |
1 | ||
| 83243-95704 |
CM2#,KM21,YM25..DLX,STD |
1 | ||
| 83243-95704 |
CM2#,KM21,YM21,25..DLX,STD |
1 | ||
| 83243-95704 |
CM2#,KM21,YM21,25..DLX,STD,SW |
1 | ||
| Common parts | ||||
| 83161-20380 | ||||
| 83161-20440 | ||||
| 90159-50060 | ||||

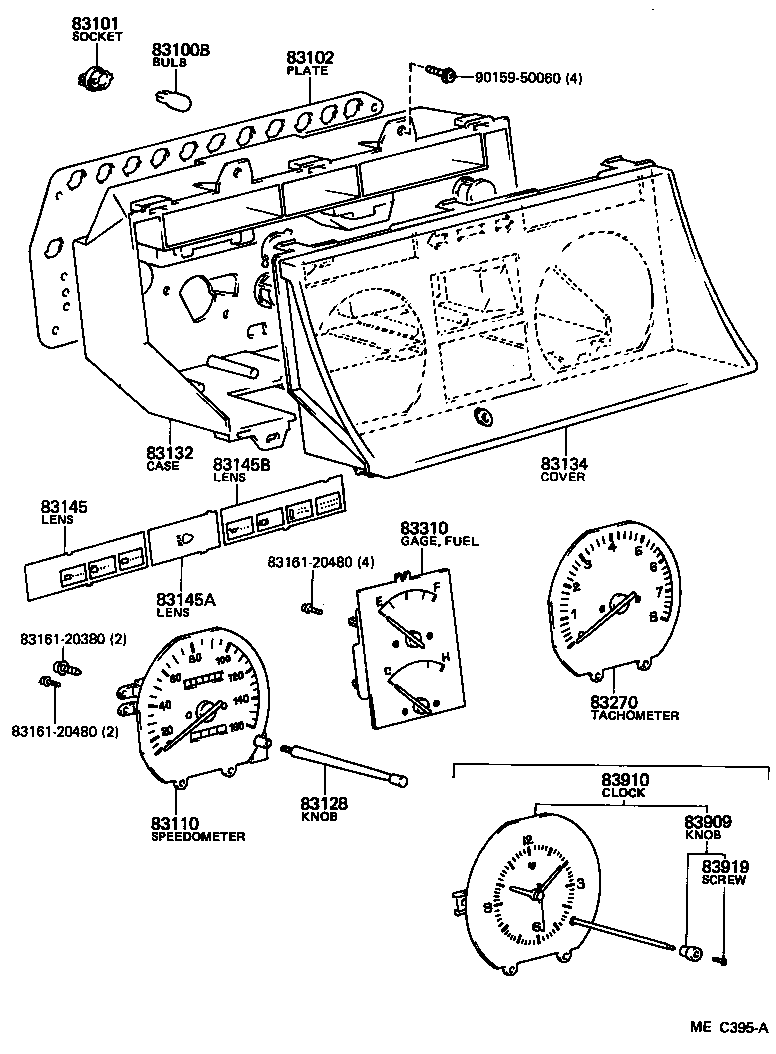

ILLUST NO. 1 OF 3(8210-8508)CS7,FXV,GXL,MTP,S,SUP,XL ; (8402-8403)SW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
CM2#,KM2#,TM20,YM2# 12V 3.4W,12V 3.4W |
16 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
CM2#,KM2#,TM20,YM2# 12V 3.4W |
16 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-95704 |
KM21,YM20,21..CS7,MTP,S,SUP,XL |
1 | ||
| 83247-95703 |
KM21,YM21,25..DLX,STD,SW |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-95705 |
CM20,KM21,YM20,21..CS7,FXV,GXL,MTP,S,SUP,XL |
1 | ||
| 83110-95704 |
CM2#,KM21,YM21,25..DLX,STD,SW |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-95J00 |
CM2#,KM21,YM2# |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-95J00 |
CM2#,KM21,YM21,25..DLX,STD,SW |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-95735 |
CM2#,KM21,YM21,25..DLX,STD,SW W/METER GLASS |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-95700 |
KM21,YM25..DLX,STD |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-95701 |
CM2#,KM21,YM21,25..DLX,STD,SW |
1 | ||
| 83145-95707 |
CM20,KM21,YM20,21..CS7,FXV,GXL,MTP,S,SUP,XL |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83145-95702 |
CM2#,KM21,YM21,25..DLX,STD,SW |
1 | ||
| 83145-95708 |
CM20,KM21,YM20,21..CS7,MTP,S,SUP,XL |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-95705 |
CM20,KM21,YM20,21..CS7,MTP,S,SUP,XL |
1 | ||
| 83243-95705 |
CM20,KM21,YM20,21..MTP,S,SUP,XL |
1 | ||
| 83243-95704 |
CM2#,KM21,YM25..DLX,STD |
1 | ||
| 83243-95704 |
CM2#,KM21,YM21,25..DLX,STD |
1 | ||
| 83243-95704 |
CM2#,KM21,YM21,25..DLX,STD,SW |
1 | ||
| 83909 - KNOB, CLOCK | ||||
| 83909-12230 |
YM21..DLX,FXV,S,STD,SW;CM2#,KM21,YM25..DLX,STD |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-95701 |
YM21..DLX,FXV,S,STD,SW;CM2#,KM21,YM25..DLX,STD DIGITAL |
1 | ||
| 83919 - SCREW, CLOCK | ||||
| 83919-12230 |
YM21..DLX,FXV,S,STD,SW;CM2#,KM21,YM25..DLX,STD |
1 | ||
| Common parts | ||||
| 83161-20380 | ||||
| 83161-20480 | ||||
| 90159-50060 | ||||
ILLUST NO. 2 OF 3(8210- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83901 - CLOCK AND SETTING PARTS SET | ||||
| 83901-95702 |
CM2#,KM21,YM21,25..(3FC,4H,5H)..(DLX,STD,SW) |
1 | ||
| 83909 - KNOB, CLOCK | ||||
| 83909-12230 |
YM21..DLX,FXV,S,STD,SW;CM2#,KM21,YM25..DLX,STD |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-95701 |
YM21..DLX,FXV,S,STD,SW;CM2#,KM21,YM25..DLX,STD DIGITAL |
1 | ||
| 83919 - SCREW, CLOCK | ||||
| 83919-12230 |
YM21..DLX,FXV,S,STD,SW;CM2#,KM21,YM25..DLX,STD |
1 | ||
| Common parts | ||||
| 93540-15014 | ||||
| Linked diagrams | ||||
| 8202 | ||||
