KM21-JD (1982)
Toyota Lite/Townace Truck
(8210- )4KJ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 21015 - HOUSING SUB-ASSY, COIL | ||||
| 21015-13390 |
4KJ..KM21 |
1 | ||
| 21015-13392 |
4KJ..KM21 |
1 | ||
| 21015-13391 |
4KJ..KM21 |
1 | ||
| 21061 - VALVE SUB-ASSY, THERMOSTATIC | ||||
| 21061-13090 |
4KJ..KM2# |
1 | ||
| 21192 - BREAKER | ||||
| 21192-13390 |
4KJ..KM21 |
1 | ||
| 21205 - JET SUB-ASSY, SLOW | ||||
| 21205-13250 |
4KJ..KM21 |
1 | ||
| 21209 - FLOAT SUB-ASSY | ||||
| 21209-24480 |
4KJ..KM2# |
1 | ||
| 21232 - TUBE | ||||
| 21232-13050 |
4KJ..KM2# |
1 | ||
| 21234 - PIPE OR HOSE | ||||
| 21234-13031 |
4KJ..KM21 |
1 | ||
| 21235 - PIPE OR HOSE, CONNECTING | ||||
| 21235-13031 |
4KJ..KM21 |
1 | ||
| 21235A - PIPE OR HOSE, CONNECTING | ||||
| 21249-13090 |
4KJ..KM21 NO.2 |
1 | ||
| 21249-13031 |
4KJ..KM21 NO.1 |
1 | ||
| 21235A - PIPE OR HOSE, CONNECTING | ||||
| 21249-13090 |
4KJ..KM21 NO.2 |
1 | ||
| 21249-13031 |
4KJ..KM21 NO.1 |
1 | ||
| 21236A - HOSE, NO.1(FOR OPENER) | ||||
| 95411-19930 |
4KJ..KM2# *H,L=60 |
2 | ||
| 21251 - JET, 1ST MAIN | ||||
| 90999-41099 |
4KJ..KM21 ID=0.99 |
1 | ||
| 21253 - JET, 2ND MAIN | ||||
| 90999-42150 |
4KJ..KM21 ID=1.50 |
1 | ||
| 21255 - JET, POWER | ||||
| 90999-43047 |
4KJ..KM21 ID=0.47 |
1 | ||
| 21272 - SCREW, 1ST IDLE ADJUSTING | ||||
| 21814-33010 |
4KJ..KM21 |
1 | ||
| 21272-24100 |
4KJ..KM2# |
1 | ||
| 21273 - SCREW, THROTTLE ADJUSTING | ||||
| 21273-13390 |
4KJ..KM21 |
1 | ||
| 21275 - SCREW, ADJUSTING | ||||
| 21275-24360 |
4KJ..KM2# |
1 | ||
| 21301 - VALVE SUB-ASSY, NEEDLE | ||||
| 21301-24501 |
4KJ..KM2# |
1 | ||
| 21313 - BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT) | ||||
| 21313-11020 |
4KJ..KM2# |
1 | ||
| 21314 - BALL, STEEL, NO.2(FOR PUMP PLUNGER) | ||||
| 21314-60010 |
4KJ..KM2# |
1 | ||
| 21353 - PLUNGER, PUMP | ||||
| 21353-24010 |
4KJ..KM21 |
1 | ||
| 21414 - SHAFT, CHOKE | ||||
| 21054-13391 |
4KJ..KM21 |
1 | ||
| 21054-13390 |
4KJ..KM21 |
1 | ||
| 21538 - RETAINER, BALL CHECK | ||||
| 21538-31010 |
4KJ..KM2# |
1 | ||
| 21561 - WEIGHT, PUMP DISCHARGE | ||||
| 21561-22010 |
4KJ..KM2# |
1 | ||
| 21611 - GASKET, MAIN JET | ||||
| 21611-22010 |
4KJ..KM2# |
2 | ||
| 21611 - GASKET, MAIN JET | ||||
| 21611-22010 |
4KJ..KM2# |
2 | ||
| 21614 - GASKET, VENTURI | ||||
| 21614-24360 |
4KJ..KM2# 2ND |
1 | ||
| 21614-22010 |
4KJ..KM2# 1ST |
1 | ||
| 21614 - GASKET, VENTURI | ||||
| 21614-24360 |
4KJ..KM2# 2ND |
1 | ||
| 21614-22010 |
4KJ..KM2# 1ST |
1 | ||
| 21617 - GASKET, MAIN PASSAGE PLUG | ||||
| 21617-30010 |
4KJ..KM2# |
2 | ||
| 21617 - GASKET, MAIN PASSAGE PLUG | ||||
| 21617-30010 |
4KJ..KM2# |
2 | ||
| 21618 - GASKET, NEEDLE VALVE SEAT | ||||
| 21618-14010 |
4KJ..KM2# |
1 | ||
| 21621 - GASKET, UNION NIPPLE | ||||
| 21633-24030 |
4KJ..KM2# |
2 | ||
| 21622 - GASKET, AIR HORN | ||||
| 21622-24360 |
4KJ..KM2# |
1 | ||
| 21623 - GASKET, BODY FLANGE | ||||
| 21623-13080 |
4KJ..KM2# |
1 | ||
| 21627 - GASKET, COIL HOUSING | ||||
| 21627-28090 |
4KJ..KM21 |
1 | ||
| 21667 - DIAPHRAGM | ||||
| 21667-13390 |
4KJ..KM21 |
1 | ||
| 21679 - POSITIONER | ||||
| 21679-13090 |
4KJ..KM2# |
1 | ||
| 21697 - BOOT(FOR SLIDING ROD) | ||||
| 21699-24360 |
4KJ..KM2# |
1 | ||
| 21722 - SPRING, PUMP DAMPING | ||||
| 21722-22010 |
4KJ..KM2# |
1 | ||
| 21723 - SPRING, IDLE ADJUSTING | ||||
| 21723-21030 |
4KJ..KM2# |
1 | ||
| 21724 - SPRING, THROTTLE ADJUSTING | ||||
| 21864-24230 |
4KJ..KM2# |
1 | ||
| 21726 - SPRING, 1ST IDLE ADJUSTING | ||||
| 21726-40010 |
4KJ..KM2# |
1 | ||
| 21731 - SPRING, DASH POT OR POSITIONER ADJUSTING | ||||
| 21864-24010 |
4KJ..KM2# |
1 | ||
| 21735 - SPRING, PUMP ARM | ||||
| 21735-22010 |
4KJ..KM2# |
1 | ||
| 21751 - UNION, NIPPLE | ||||
| 21751-24034 |
4KJ..KM2# |
1 | ||
| 21756 - SPRING, BACK(FOR THROTTLE SHAFT) | ||||
| 90507-10003 |
4KJ..KM2# |
1 | ||
| 21763 - PIN, FLOAT LEVER | ||||
| 21763-38010 |
4KJ..KM2# |
1 | ||
| 21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET) | ||||
| 21781-15230 |
4KJ..KM21 |
2 | ||
| 21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET) | ||||
| 21781-15230 |
4KJ..KM21 |
2 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
4KJ..KM2# |
9 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
4KJ..KM2# |
9 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
4KJ..KM2# |
9 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
4KJ..KM2# |
9 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
4KJ..KM2# |
9 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
4KJ..KM2# |
9 | ||
| 21826 - SCREW, PUMP ARM SET | ||||
| 21826-24470 |
4KJ..KM21 |
1 | ||
| 21831 - SCREW, POWER PISTON STOP | ||||
| 21821-15060 |
4KJ..KM21 |
1 | ||
| 21832 - SCREW(FOR CHOKE LEVER ADAPTER SET) | ||||
| 21821-15010 |
4KJ..KM2# |
1 | ||
| 21834 - SCREW, SET, NO.2(FOR CARBURETOR BODY SET) | ||||
| 21834-31010 |
4KJ..KM2# |
1 | ||
| 21835 - SCREW, SET, NO.3(FOR CARBURETOR BODY SET) | ||||
| 21835-40010 |
4KJ..KM2# |
1 | ||
| 21852 - NUT, THROTTLE LEVER SET | ||||
| 21852-30010 |
4KJ..KM2# |
1 | ||
| 21865 - SPRING | ||||
| 21756-24300 |
4KJ..KM21 |
1 | ||
| 21881 - WASHER, LOCK(FOR THROTTLE SHAFT) | ||||
| 21881-60010 |
4KJ..KM2# |
1 | ||
| 21934 - SOLENOID, THROTTLE VALVE | ||||
| 21062-13391 |
4KJ..KM21 |
1 | ||
| 21062-13030 |
4KJ..KM2# |
1 | ||
| 21934E - RING, O(FOR SOLENOID VALVE) | ||||
| 21655-44101 |
4KJ..KM2# |
2 | ||
| 21934F - GASKET | ||||
| 21649-38010 |
4KJ..KM21 |
1 | ||
| 21617-10010 |
4KJ..KM2# |
2 | ||
| Common parts | ||||
| 21576-27010 | ||||
| 21821-13080 | ||||
| 21821-15320 | ||||
| 21821-25010 | ||||
| 21821-31140 | ||||
| 21821-34370 | ||||
| 21821-34380 | ||||
| 21842-13390 | ||||
| 90079-21001 | ||||
| 90523-07014 | ||||
| 93319-13010 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
| 94512-00600 | ||||
| 94611-10300 | ||||
| 94611-10400 | ||||
| 95411-10130 | ||||

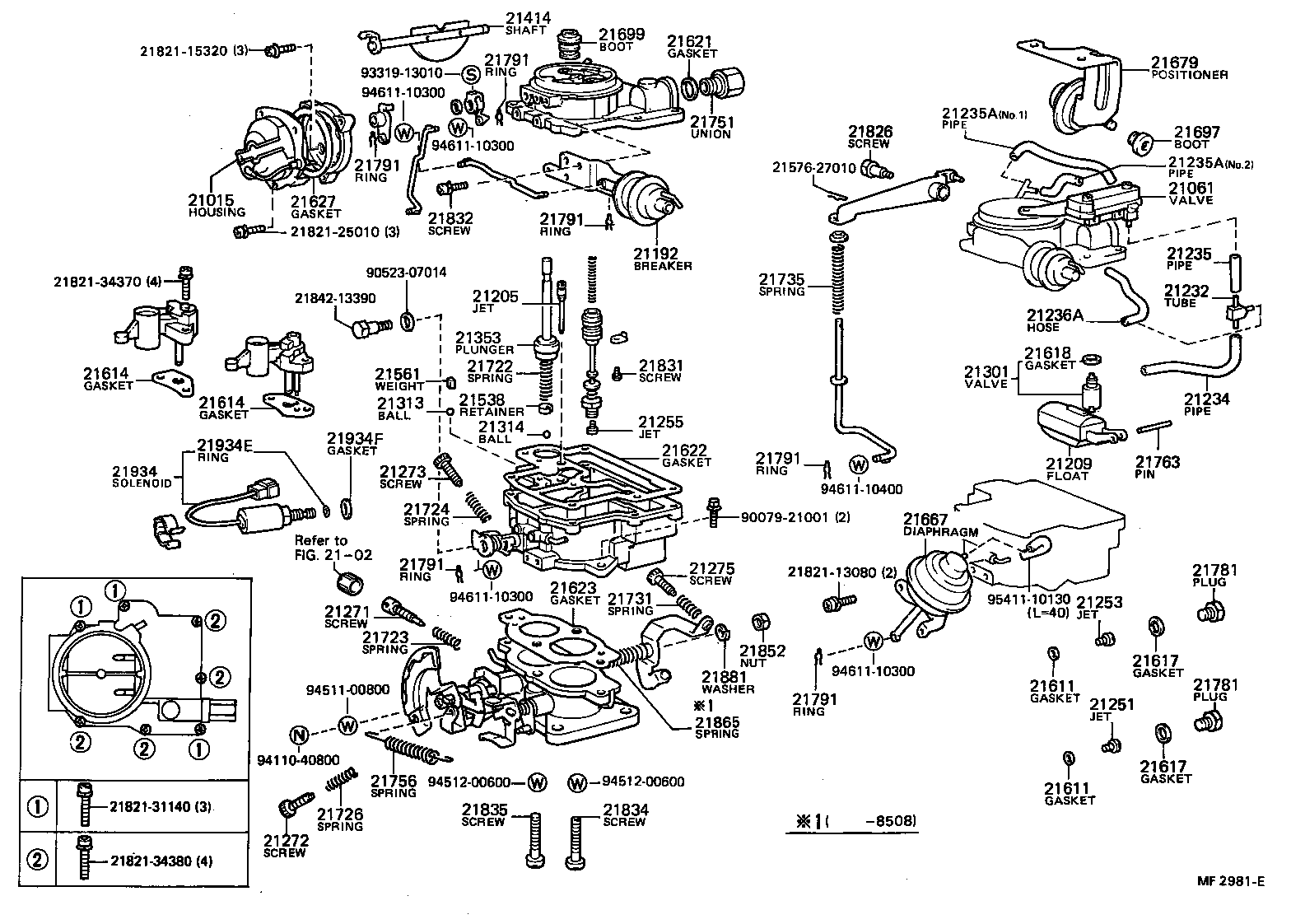

| Linked diagrams | ||||
| 2102 | ||||
