KM20V-JRBEW (1979)
Toyota Lite/Townace Truck
ILLUST NO. 1 OF 2(7910-8508)V,WG..ST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-27040 |
KM20,TM20..(V,WG)..ST |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90118-13152 |
KM20..V..ST |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48047-27040 |
KM20,TM20..(V,WG)..ST |
1 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-15001 |
CM20,KM2#,TM20,YM20,21..V,WG |
4 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-15001 |
CM20,KM2#,TM20,YM20,21..V,WG |
4 | ||
| 48210K - SHACKLE KIT, REAR SPRING | ||||
| 04483-27021 |
KM20,TM20..(HRF,SRF)..ST |
2 | ||
| 48341 - BUMPER, REAR SPRING | ||||
| 48341-27010 |
CM20,KM2#,TM20,YM20,21..V,WG |
2 | ||
| 48371 - RETAINER, REAR SPRING PAD | ||||
| 48371-27040 |
KM2#..V..ST |
2 | ||
| 48372 - PAD, REAR SPRING | ||||
| 48372-28010 |
CM20,KM2#,TM20,YM20,21..V,WG |
4 | ||
| 48372 - PAD, REAR SPRING | ||||
| 48372-28010 |
CM20,KM2#,TM20,YM20,21..V,WG |
4 | ||
| 48401 - BRACKET SUB-ASSY, REAR SPRING, FRONT RH | ||||
| 57701-95701 |
KM20,TM20..(V,WG)..ST |
1 | ||
| 48402 - BRACKET SUB-ASSY, REAR SPRING, FRONT LH | ||||
| 57701-95701 |
KM20,TM20..(V,WG)..ST |
1 | ||
| 48404 - BRACKET SUB-ASSY, REAR SPRING, REAR RH | ||||
| 57703-95702 |
KM20,TM20..(V,WG)..ST |
1 | ||
| 48405 - BRACKET SUB-ASSY, REAR SPRING, REAR LH | ||||
| 57705-95702 |
KM20,TM20..(V,WG)..ST |
1 | ||
| 48408 - PIN SUB-ASSY, SPRING BRACKET | ||||
| 48409-28010 |
KM20,TM20..V,WG |
2 | ||
| 48409-28010 |
KM20,TM20..(HRF,SRF)..ST |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-29665 |
KM2#..V..ST |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16007 |
CM2#,KM2#,TM20,YM2# |
8 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16007 |
CM2#,KM2#,TM20,YM2# |
8 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16007 |
CM2#,KM2#,TM20,YM2# |
8 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16007 |
CM2#,KM2#,TM20,YM2# |
8 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03004 |
CM2#,KM2#,TM20,YM2# |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03007 |
CM2#,KM2#,TM20,YM2# |
2 | ||
| 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 | ||||
| 90948-03004 |
CM2#,KM2#,TM20,YM2# |
2 | ||
| 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 | ||||
| 90948-03007 |
CM2#,KM2#,TM20,YM2# |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-29665 |
KM2#..V..ST |
1 | ||
| Common parts | ||||
| 90105-14014 | ||||
| 90170-13001 | ||||
| 90201-13028 | ||||
| 91611-40820 | ||||
| 91611-40825 | ||||
| 91611-41020 | ||||
| 94115-41200 | ||||
| 94115-41400 | ||||
| 94512-01200 | ||||
| 94512-01400 | ||||

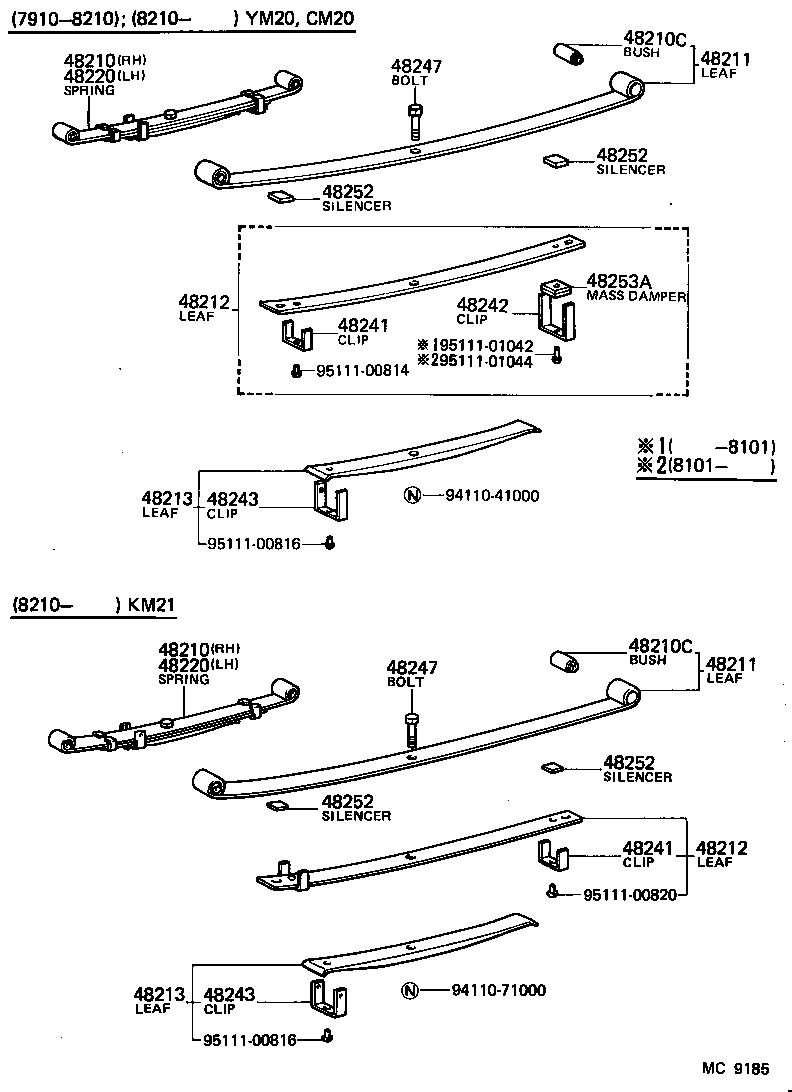

ILLUST NO. 2 OF 2(7910-8508)V..ST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-27100 |
KM20..V..ST |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-27100 |
KM20..V..ST |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-14004 |
KM20,TM20..(HRF,SRF)..ST |
4 | ||
| 90389-14004 |
KM20,TM20..V,WG |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-14004 |
KM20,TM20..(HRF,SRF)..ST |
4 | ||
| 90389-14004 |
KM20,TM20..V,WG |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-27100 |
KM2#..V..ST |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-27100 |
KM2#..V..ST |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-27100 |
KM20..V..ST |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-27100 |
KM20..V..ST |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-27100 |
KM2#..V..ST |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48203-27100 |
KM2#..V..ST |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-27100 |
KM20..V..ST |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-27100 |
KM20..V..ST |
1 | ||
| 48241 - CLIP, REAR SPRING, NO.1 | ||||
| 48241-28010 |
KM20,TM20..(V,WG)..ST |
2 | ||
| 48241 - CLIP, REAR SPRING, NO.1 | ||||
| 48241-28010 |
KM20,TM20..(V,WG)..ST |
2 | ||
| 48242 - CLIP, REAR SPRING, NO.2 | ||||
| 48243-27100 |
CM20,KM20,YM20..V..ST |
2 | ||
| 48243 - CLIP, REAR SPRING, NO.3 | ||||
| 48242-27100 |
CM20,KM2#,YM20..V..ST |
2 | ||
| 48243 - CLIP, REAR SPRING, NO.3 | ||||
| 48242-27100 |
CM20,KM2#,YM20..V..ST |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-28010 |
KM2#..V..ST |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-28010 |
KM2#..V..ST |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
CM20,KM2#,TM20,YM20,21..(V,WG)..ST |
4 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
CM20,KM2#,TM20,YM20,21..(V,WG)..ST |
4 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
CM20,KM2#,TM20,YM20,21..(V,WG)..ST |
4 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
CM20,KM2#,TM20,YM20,21..(V,WG)..ST |
4 | ||
| 48253A - MASS DAMPER, REAR SPRING, NO.1 | ||||
| 48255-26120 |
CM20,KM20,YM20..V..ST |
4 | ||
| Common parts | ||||
| 94110-41000 | ||||
| 94110-71000 | ||||
| 95111-00814 | ||||
| 95111-00816 | ||||
| 95111-00820 | ||||
| 95111-01042 | ||||
| 95111-01044 | ||||
