KM20V-JRBEW (1979)

Toyota Lite/Townace Truck

Production Oct 1979 - Oct 1982
Engine 4KJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910- )

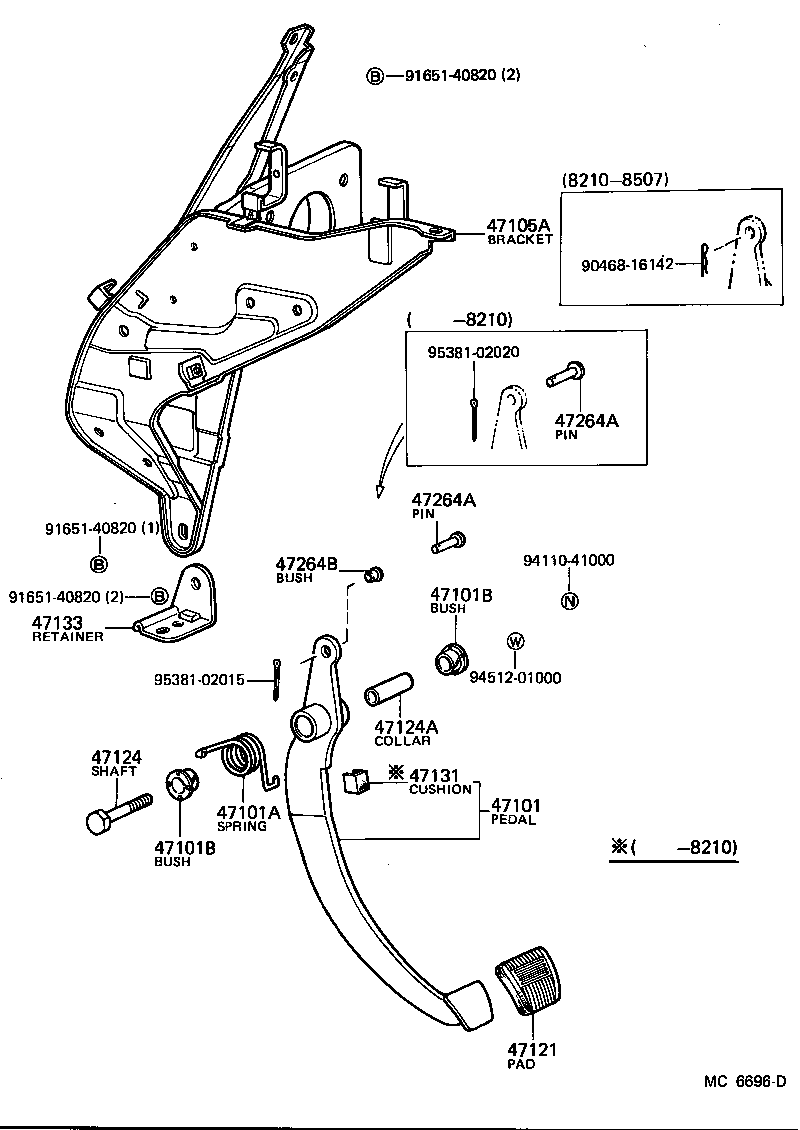

Click highlighted areas on diagram

diagram 47101 47101A 47101B 47101B 47105A 47121 47124 47124A 47131 47133 47264A 47264A 47264B 9046816142 9165140820 9165140820 9165140820 9411041000 9451201000 9538102015 9538102020
Part # Description Qty Price
47101 - PEDAL SUB-ASSY, BRAKE
47101-27070

KM20,TM20

 1
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90508-35386

CM2#,KM2#,TM20,YM2#

 1
47101B - BUSH(FOR BRAKE PEDAL)
90386-13007

CM2#,KM2#,TM20,YM2#

 2
47101B - BUSH(FOR BRAKE PEDAL)
90386-13007

CM2#,KM2#,TM20,YM2#

 2
47105A - SUPPORT SUB-ASSY, BRAKE PEDAL
55160-95705

KM20

 1
47121 - PAD, BRAKE PEDAL
31321-14020

CM2#,KM2#,TM20,YM2#

 1
47124 - SHAFT, BRAKE PEDAL
91111-51060

CM2#,KM2#,TM20,YM2#

 1
47124A - COLLAR(FOR BRAKE PEDAL SHAFT)
90387-10003

CM2#,KM2#,TM20,YM2#

 1
47131 - CUSHION(FOR STOP LAMP SWITCH)
47131-10010

KM20,TM20

 1
47133 - RETAINER, PEDAL BRACKET, LOWER
55702-95703

CM2#,KM2#,TM20,YM2#

 1
47264A - PIN(FOR PUSH ROD)
90240-08070

CM2#,KM2#,TM20,YM2#

 1
47264A - PIN(FOR PUSH ROD)
90240-08070

CM2#,KM2#,TM20,YM2#

 1
Common parts
90468-16142
91651-40820
94110-41000
94512-01000
95381-02015
95381-02020
