KM20V-JRBEW (1979)

Toyota Lite/Townace Truck

Production Oct 1979 - Oct 1982
Engine 4KJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910- )4KJ

Click highlighted areas on diagram

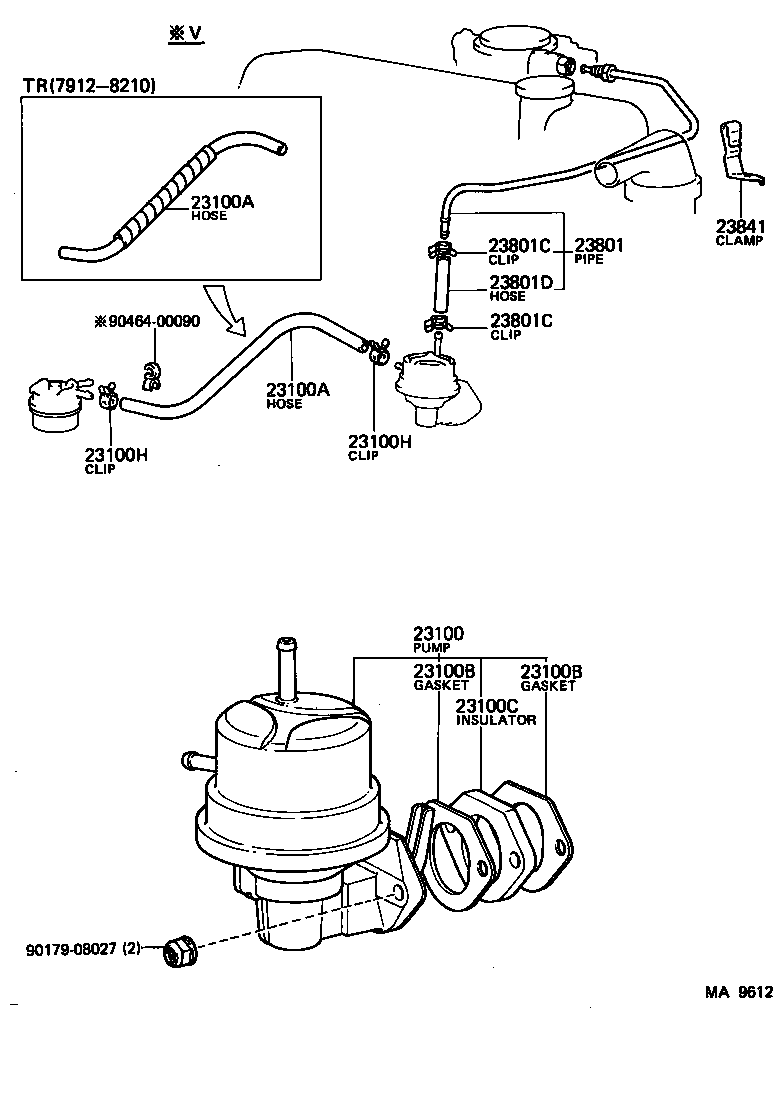

diagram 23100 23100A 23100A 23100B 23100B 23100C 23100H 23100H 23801 23801C 23801C 23801D 23841 9017908027 9046400090
Part # Description Qty Price
23100 - PUMP ASSY, FUEL
23100-29245

4KJ..KM20

 1
23100A - HOSE, FUEL
95332-06040

4KJ..KM20

*H,L=360

 1
95332-06040

4KJ..KM20..V

*H,L=380

 1
23100A - HOSE, FUEL
95332-06040

4KJ..KM20

*H,L=360

 1
95332-06040

4KJ..KM20..V

*H,L=380

 1
23100B - GASKET, FUEL PUMP
90923-05006

4KJ..KM2#

 2
23100B - GASKET, FUEL PUMP
90923-05006

4KJ..KM2#

 2
23100C - INSULATOR, FUEL PUMP
90923-06003

4KJ..KM2#

 1
23100H - CLIP(FOR FUEL HOSE)
96132-30600

4KJ..KM2#

 2
23100H - CLIP(FOR FUEL HOSE)
96132-30600

4KJ..KM2#

 2
23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1
23801-13050

4KJ..KM2#

 1
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30600

4KJ..KM2#

 2
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30600

4KJ..KM2#

 2
23801D - HOSE, FUEL PIPE, NO.1
95332-06010

4KJ..KM2#

*H,L=70

 1
23841 - CLAMP, FUEL PIPE(HOSE), NO.1
90461-08532

4KJ..KM2#

 1
Common parts
90179-08027
90464-00090
