KM20V-JNZW (1979)

Toyota Lite/Townace Truck

Production Oct 1979 - Oct 1982
Engine 4KJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910-8508)V,WG

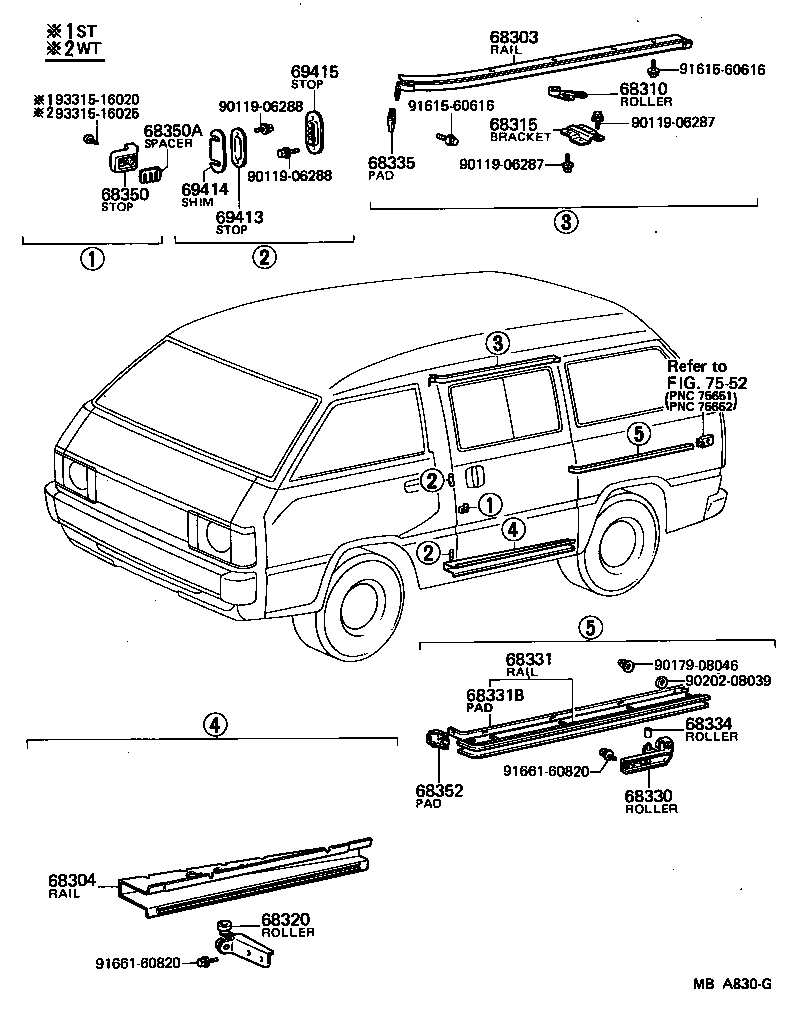

Click highlighted areas on diagram

diagram 68303 68304 68310 68315 68320 68330 68331 68331B 68334 68335 68350 68350A 68352 69413 69414 69415 7552 9011906287 9011906287 9011906288 9011906288 9017908046 9020208039 9161560616 9161560616 9166160820 9166160820 9331516020 9331516025
Part # Description Qty Price
68303 - RAIL SUB-ASSY, SLIDE DOOR, UPPER
68304-95701

CM20,KM2#,TM20,YM20,21..V,WG

LH

 1
68304 - RAIL SUB-ASSY, SLIDE DOOR LOWER ROLLER
68202-95700

CM20,KM2#,TM20,YM20,21..(V,WG)..ST

LH

 1
68310 - ROLLER ASSY, SLIDE DOOR, UPPER
68320-95701

CM20,KM2#,TM20,YM20,21..V,WG

LH

 1
68315 - BRACKET, SLIDE DOOR UPPER ROLLER
68316-95701

CM20,KM2#,TM20,YM20,21..V,WG

LH

 1
68320 - ROLLER ASSY, SLIDE DOOR, LOWER
68360-95701

CM20,KM2#,TM20,YM20,21..(V,WG)..ST

LH

 1
68330 - ROLLER ASSY, SLIDE DOOR, CENTER
68380-95701

CM20,KM2#,TM20,YM20,21..(V,WG)..ST

LH

 1
68331 - RAIL, SLIDE DOOR, CENTER
68302-95701

CM20,KM2#,TM20,YM20,21..V,WG

LH

 1
68334 - ROLLER, SLIDE DOOR CENTER, NO.2
68334-95700

CM20,KM2#,TM20,YM20,21..V,WG

 4
68335 - PAD, SLIDE DOOR UPPER RAIL
68335-95702

CM20,KM2#,TM20,YM20,21..V,WG

 2
68350 - STOPPER ASSY, SLIDE DOOR OPEN
69405-95A00

CM20,KM2#,TM20,YM20,21..(V,WG)..ST

 2
68350A - SPACER, SLIDE DOOR OPEN STOPPER
69411-95A00

CM20,KM2#,TM20,YM20,21..V,WG

 1
68352 - PAD, SLIDE DOOR CENTER RAIL
68352-95700

CM20,KM2#,TM20,YM20,21..V,WG

LH

 1
69413 - STOP, SLIDE DOOR DOWN MALE
69413-95700

CM20,KM2#,TM20,YM20,21..V,WG

 4
69414 - SHIM, SLIDE DOOR DOWN STOP MALE
69418-95700

CM20,KM2#,TM20,YM20,21..V,WG

 1
69415 - STOPPER, SLIDE DOOR DOWN FEMALE
69414-95701

CM20,KM2#,TM20,YM20,21..V,WG

 4
Common parts
90119-06287
90119-06288
90179-08046
90202-08039
91615-60616
91661-60820
93315-16020
93315-16025
Linked diagrams
7552
