KM20V-JNZW (1979)

Toyota Lite/Townace Truck

Production Oct 1979 - Oct 1982
Engine 4KJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910-8210)4KJ

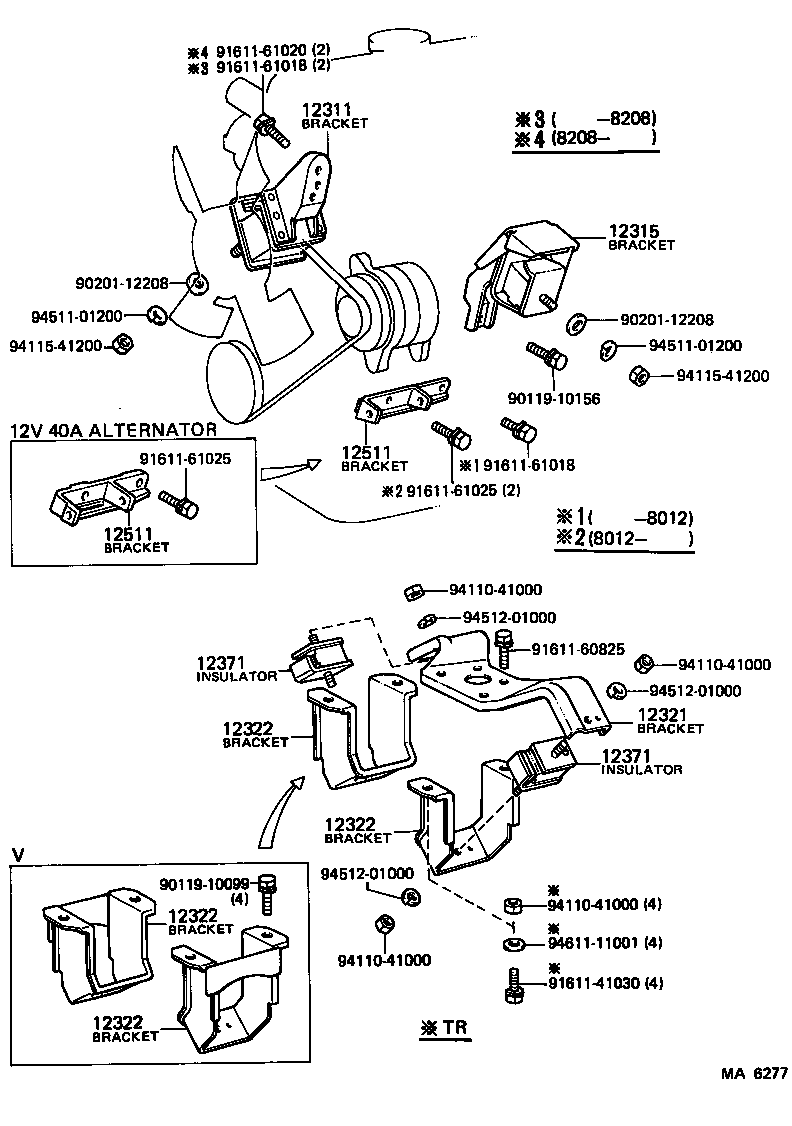

Click highlighted areas on diagram

diagram 12311 12315 12321 12322 12322 12322 12322 12371 12371 12511 12511 9011910099 9011910156 9020112208 9020112208 9161141030 9161160825 9161161018 9161161018 9161161020 9161161025 9161161025 9411041000 9411041000 9411041000 9411041000 9411541200 9411541200 9451101200 9451101200 9451201000 9451201000 9451201000 9461111001
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12301-13060

4KJ..KM20

 1
12301-13020

4KJ..KM20

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12302-13042

4KJ..KM20

 1
12302-13043

4KJ..KM20

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-13010

4KJ..KM2#

 1
12322 - BRACKET, ENGINE MOUNTING, REAR NO.2
12322-13010

4KJ..KM20..V

 2
12322 - BRACKET, ENGINE MOUNTING, REAR NO.2
12322-13010

4KJ..KM20..V

 2
12322 - BRACKET, ENGINE MOUNTING, REAR NO.2
12322-13010

4KJ..KM20..V

 2
12322 - BRACKET, ENGINE MOUNTING, REAR NO.2
12322-13010

4KJ..KM20..V

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-13050

4KJ..KM20

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-13050

4KJ..KM20

 2
12511 - BRACKET, ALTERNATOR, NO.1
12511-24011

4KJ..KM2#

40A ALTERNATOR

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-24011

4KJ..KM2#

40A ALTERNATOR

 1
Common parts
90119-10099
90119-10156
90201-12208
91611-41030
91611-60825
91611-61018
91611-61020
91611-61025
94110-41000
94115-41200
94511-01200
94512-01000
94611-11001
