KM20V-JNZTW (1979)

Toyota Lite/Townace Truck

Production Oct 1979 - Oct 1982
Engine 4KJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910-8101)TM20..DLX,GXL,XL ; (7910-8210)KM20..DLX,SUP ; (8101-8210)TM20

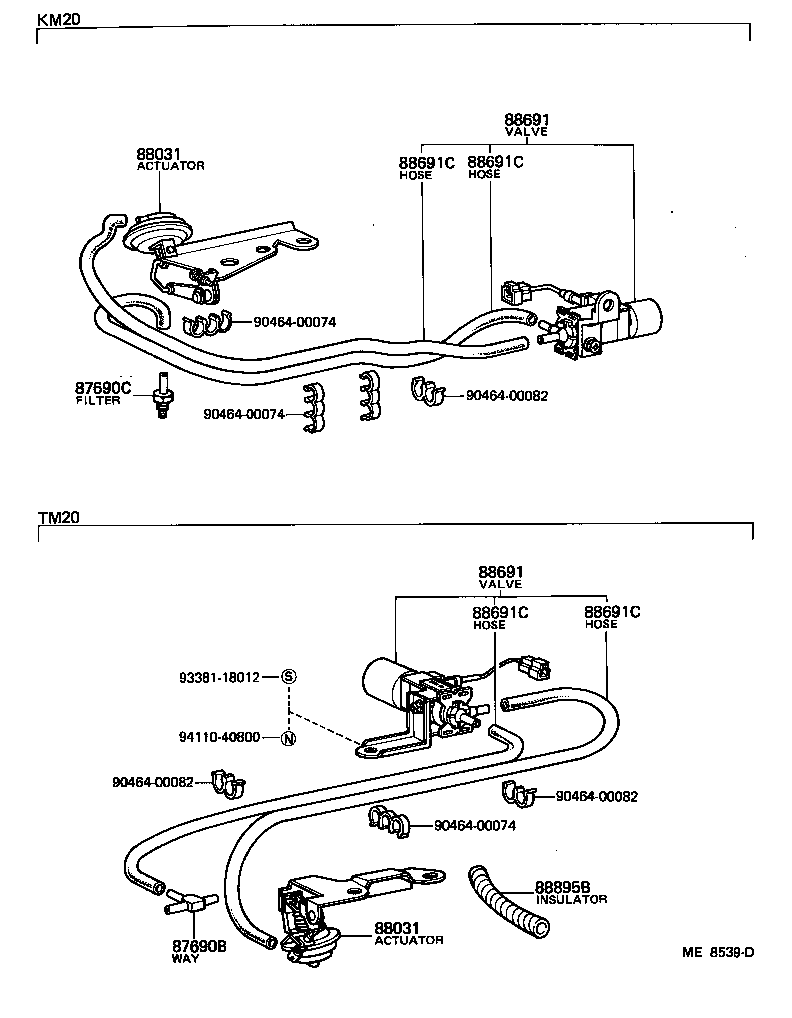

Click highlighted areas on diagram

diagram 87690B 87690C 88031 88031 88691 88691 88691C 88691C 88691C 88691C 88895B 9046400074 9046400074 9046400074 9046400082 9046400082 9046400082 9338118012 9411040800
Part # Description Qty Price
87690C - FILTER ASSY, GAS
90917-87002

KM20..DLX,SUP

 1
88031 - ACTUATOR SET, IDLE-UP
88031-87002

KM20..DLX,SUP

 1
88031-12081

KM2#..DLX,SUP

 1
88031 - ACTUATOR SET, IDLE-UP
88031-87002

KM20..DLX,SUP

 1
88031-12081

KM2#..DLX,SUP

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95710

KM20..DLX,SUP

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95710

KM20..DLX,SUP

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-19960

KM20..DLX,SUP

*H,L=480,ﾏｰｸ=#*

 1
95411-10060

KM20..DLX,SUP

*H,L=480,ﾏｰｸ=#0

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-19960

KM20..DLX,SUP

*H,L=480,ﾏｰｸ=#*

 1
95411-10060

KM20..DLX,SUP

*H,L=480,ﾏｰｸ=#0

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-19960

KM20..DLX,SUP

*H,L=480,ﾏｰｸ=#*

 1
95411-10060

KM20..DLX,SUP

*H,L=480,ﾏｰｸ=#0

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-19960

KM20..DLX,SUP

*H,L=480,ﾏｰｸ=#*

 1
95411-10060

KM20..DLX,SUP

*H,L=480,ﾏｰｸ=#0

 1
Common parts
90464-00074
90464-00082
93381-18012
94110-40800
