KM20V-JNZTW (1979)
Toyota Lite/Townace Truck
Production
Oct 1979
-
Oct 1982
Engine
4KJ
Transmission
4H MTM
Displacement
2500cc
Power
168 HP (125 kW)

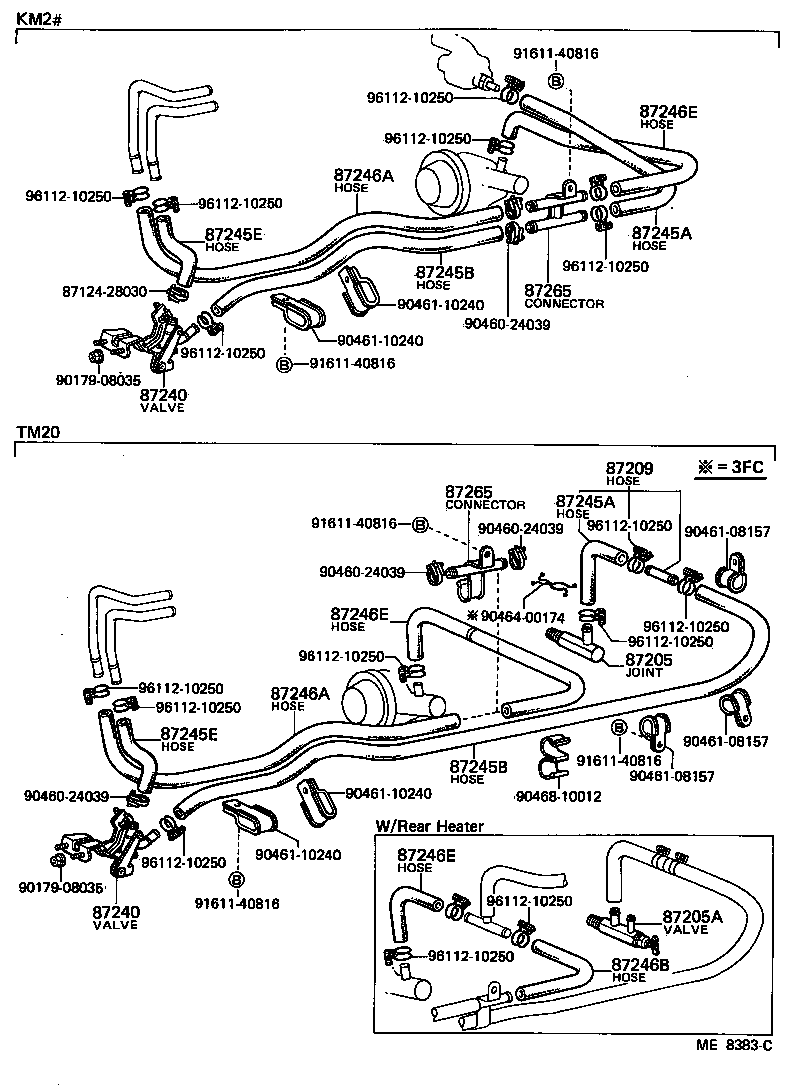

ILLUST NO. 1 OF 2(7910-8210)TM20 ; (7910- )KM2#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-95702 |
KM20,TM20 |
1 | ||
| 87240-95700 |
KM20,TM20 |
1 | ||
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-95702 |
KM20,TM20 |
1 | ||
| 87240-95700 |
KM20,TM20 |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-95706 |
KM2# |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-95706 |
KM2# |
1 | ||
| 87245B - HOSE, HEATER WATER, INLET B | ||||
| 99552-31000 |
KM20;KM21..V *H,L=820 |
1 | ||
| 87245B - HOSE, HEATER WATER, INLET B | ||||
| 99552-31000 |
KM20;KM21..V *H,L=820 |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 87245-95705 |
KM20,TM20 |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 87245-95705 |
KM20,TM20 |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 99552-31000 |
KM2#,TM20,YM20,21 *H,L=940 |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 99552-31000 |
KM2#,TM20,YM20,21 *H,L=940 |
1 | ||
| 87246E - HOSE, HEATER WATER, OUTLET E | ||||
| 87245-95700 |
KM2# |
1 | ||
| 87246E - HOSE, HEATER WATER, OUTLET E | ||||
| 87245-95700 |
KM2# |
1 | ||
| 87246E - HOSE, HEATER WATER, OUTLET E | ||||
| 87245-95700 |
KM2# |
1 | ||
| 87265 - CONNECTOR, HEATER WATER HOSE | ||||
| 87248-95700 |
KM2# |
1 | ||
| 87265 - CONNECTOR, HEATER WATER HOSE | ||||
| 87248-95700 |
KM2# |
1 | ||
| Common parts | ||||
| 87124-28030 | ||||
| 90179-08035 | ||||
| 90460-24039 | ||||
| 90461-08157 | ||||
| 90461-10240 | ||||
| 90464-00174 | ||||
| 90468-10012 | ||||
| 91611-40816 | ||||
| 96112-10250 | ||||
