KM20V-JNZTW (1979)

Toyota Lite/Townace Truck

Production Oct 1979 - Oct 1982
Engine 4KJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910- )V,WG

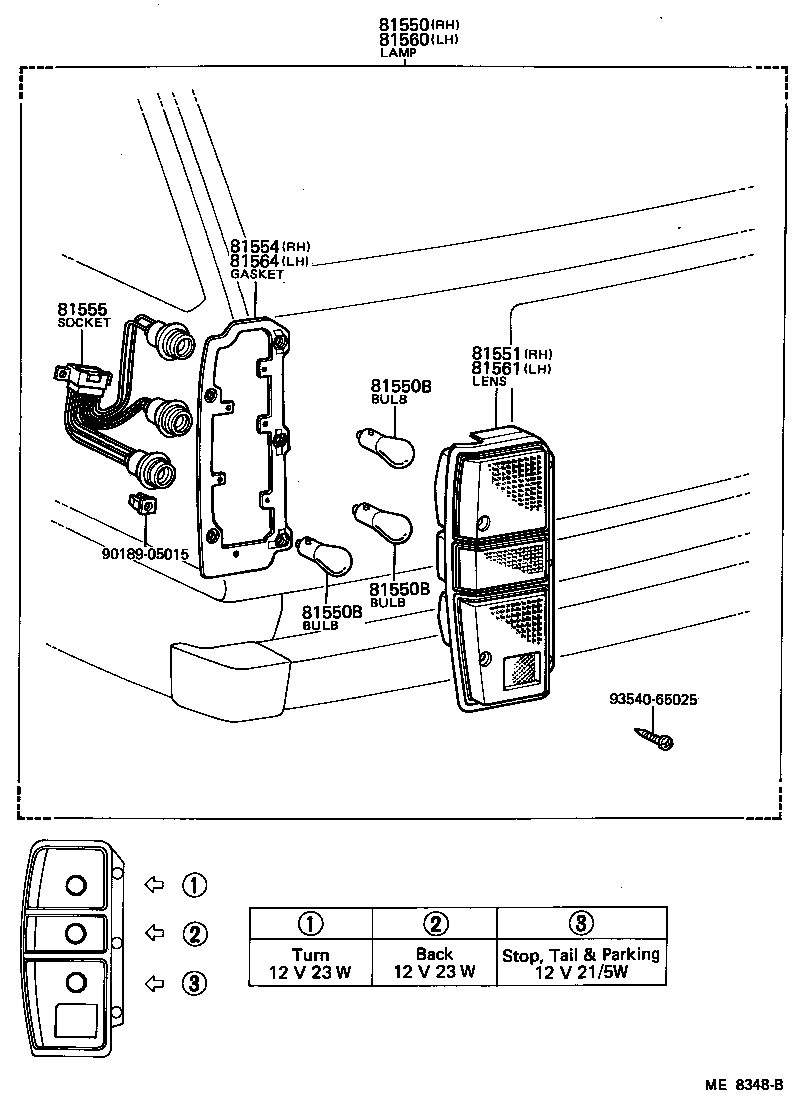

Click highlighted areas on diagram

diagram 81550 81550B 81550B 81550B 81551 81554 81555 81560 81561 81564 9018905015 9354065025
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-80067

KM20,TM20..(HRF,SRF)..(DLX,STD,SUP)

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11230

CM2#,KM2#,TM20,YM2#

12V 23W,12V 23W

 4
99132-21210

CM2#,KM2#,TM20,YM2#

12V 21/5W,12V 21/5W

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11230

CM2#,KM2#,TM20,YM2#

12V 23W,12V 23W

 4
99132-21210

CM2#,KM2#,TM20,YM2#

12V 21/5W,12V 21/5W

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11230

CM2#,KM2#,TM20,YM2#

12V 23W,12V 23W

 4
99132-21210

CM2#,KM2#,TM20,YM2#

12V 21/5W,12V 21/5W

 2
81551 - LENS, REAR COMBINATION LAMP, RH
81551-95700

KM20,TM20..(HRF,SRF)..(DLX,STD,SUP)

 1
81554 - GASKET, REAR COMBINATION LAMP BODY, RH
81554-95700

CM20,KM2#,TM20,YM20,21..V,WG

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-95700

CM20,KM2#,TM20,YM20,21..V,WG

 2
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-80069

KM20,TM20..(HRF,SRF)..(DLX,STD,SUP)

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-95700

KM20,TM20..(HRF,SRF)..(DLX,STD,SUP)

 1
81564 - GASKET, REAR COMBINATION LAMP BODY, LH
81564-95700

CM20,KM2#,TM20,YM20,21..V,WG

 1
Common parts
90189-05015
93540-65025
