KM20V-JNZFTW (1979)
Toyota Lite/Townace Truck
(7910- )WT

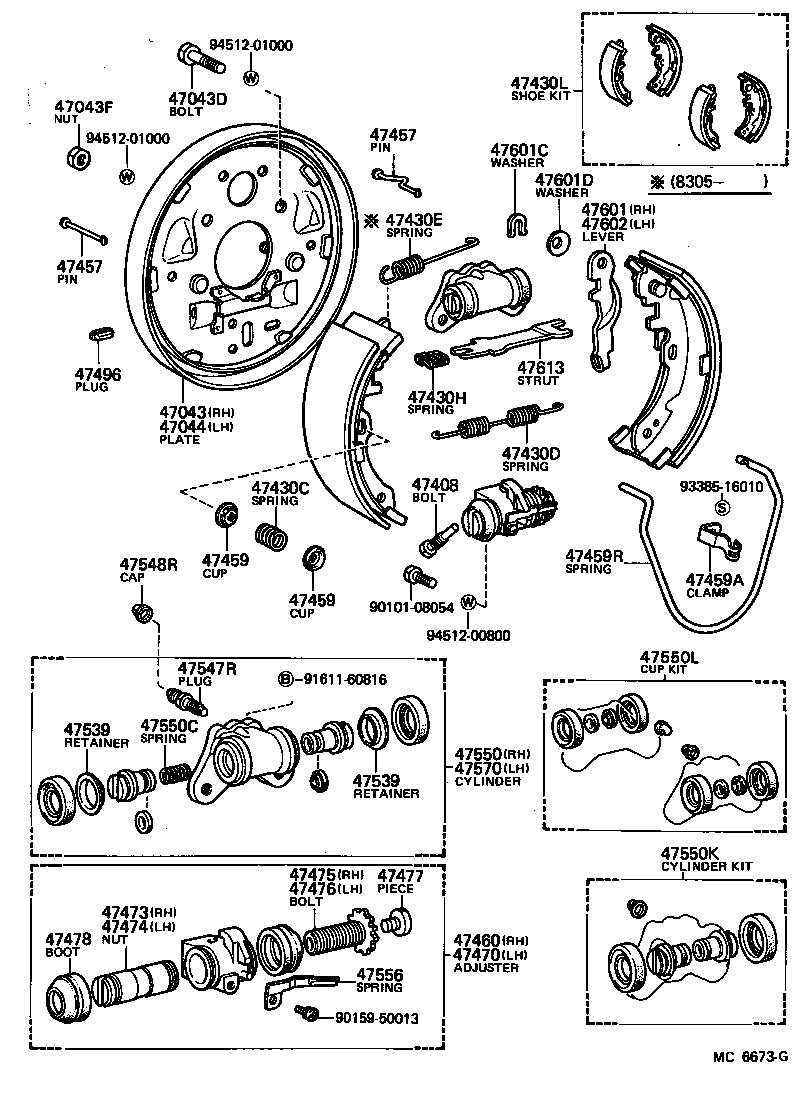

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-27010 |
CM2#,KM2#,YM20,25..WT |
1 | ||
| 47043D - BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90101-10069 |
CM2#,KM2#,YM20,25..WT |
4 | ||
| 47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90170-10191 |
CM2#,KM2#,YM20,25..WT |
4 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-27010 |
CM2#,KM2#,YM20,25..WT |
1 | ||
| 47408 - BOLT SUB-ASSY, RETRACTING SPRING CLAMP | ||||
| 47408-27010 |
CM2#,KM2#,YM20,25..WT |
2 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 90501-18017 |
CM2#,KM2#,TM20,YM2# |
4 | ||
| 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-23013 |
CM2#,KM2#,YM20,25..WT |
2 | ||
| 47430H - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| 90504-14003 |
CM2#,KM2#,YM20,25..WT |
2 | ||
| 47430L - SHOE KIT, REAR BRAKE | ||||
| 04495-27010 |
KM20..WT FR DRUM BRAKE |
1 | ||
| 04497-27020 |
KM20..WT..CBU REBUILT,FR DISC BRAKE |
1 | ||
| 04495-27020 |
KM20..WT..CBU FR DISC BRAKE |
1 | ||
| 04497-27010 |
KM20..WT REBUILT,FR DRUM BRAKE |
1 | ||
| 47457 - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-20010 |
CM2#,KM2#,YM20,25..WT FR |
2 | ||
| 47447-27010 |
CM2#,KM2#,YM20,25..WT RR |
2 | ||
| 47457 - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-20010 |
CM2#,KM2#,YM20,25..WT FR |
2 | ||
| 47447-27010 |
CM2#,KM2#,YM20,25..WT RR |
2 | ||
| 47459 - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
CM2#,KM2#,TM20,YM2# |
8 | ||
| 47459 - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
CM2#,KM2#,TM20,YM2# |
8 | ||
| 47459A - CLAMP(FOR SHOE RETURN SPRING) | ||||
| 90461-08464 |
CM2#,KM2#,YM20,25..WT LH |
1 | ||
| 90461-08451 |
CM2#,KM2#,YM20,25..WT RH |
1 | ||
| 47459R - SPRING, SHOE RETURN(FOR REAR BRAKE) | ||||
| 47459-27010 |
CM2#,KM2#,YM20,25..WT |
2 | ||
| 47460 - ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE) | ||||
| 47460-27010 |
CM2#,KM2#,YM20,25..WT |
1 | ||
| 47470 - ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE) | ||||
| 47470-27010 |
CM2#,KM2#,YM20,25..WT |
1 | ||
| 47473 - NUT, REAR WHEEL CYLINDER ADJUSTING, RH(FOR REAR BRAKE) | ||||
| 47473-27010 |
CM2#,KM2#,YM20,25..WT |
1 | ||
| 47474 - NUT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47474-27010 |
CM2#,KM2#,YM20,25..WT |
1 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47475-28010 |
CM2#,KM2#,YM20,25..WT |
1 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47476-28010 |
CM2#,KM2#,YM20,25..WT |
1 | ||
| 47477 - PIECE, SHOE SUPPORT (FOR REAR BRAKE) | ||||
| 47477-28010 |
CM2#,KM2#,YM20,25..WT |
2 | ||
| 47478 - BOOT, ADJUSTER CYLINDER(FOR REAR BRAKE) | ||||
| 47478-28010 |
CM2#,KM2#,YM20,25..WT |
4 | ||
| 47496 - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-20020 |
CM2#,KM2#,YM20,25..WT |
2 | ||
| 47539 - RETAINER, WHEEL CYLINDER BOOT | ||||
| 47539-27010 |
CM2#,KM2#,YM20,25..WT |
4 | ||
| 47539 - RETAINER, WHEEL CYLINDER BOOT | ||||
| 47539-27010 |
CM2#,KM2#,YM20,25..WT |
4 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-20010 |
CM2#,KM2#,TM20,YM2# |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
CM2#,KM2#,TM20,YM2# |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-29245 |
CM2#,KM2#,YM20,25..WT ID=15.87 |
1 | ||
| 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) | ||||
| 90501-06012 |
CM2#,KM2#,YM20,25..WT ID=15.87 W/C |
2 | ||
| 47550K - CYLINDER KIT, REAR WHEEL | ||||
| 04474-27010 |
CM2#,KM2#,YM20,25..WT ID=15.87 W/C |
2 | ||
| 47550L - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-27010 |
CM2#,KM2#,YM20,25..WT ID=15.87 W/C |
1 | ||
| 47556 - SPRING, ADJUSTER LOCK(FOR REAR BRAKE) | ||||
| 47556-27010 |
CM2#,KM2#,YM20,25..WT LH |
1 | ||
| 47555-27020 |
CM2#,KM2#,YM20,25..WT RH |
1 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47550-29245 |
CM2#,KM2#,YM20,25..WT ID=15.87 |
1 | ||
| 47601 - LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE) | ||||
| 47611-27010 |
CM2#,KM2#,YM20,25..WT |
1 | ||
| 47601C - WASHER, C(FOR REAR BRAKE) | ||||
| 90213-07010 |
CM2#,KM2#,YM20,25..WT 厚さ=1.6 |
2 | ||
| 47601D - WASHER, WAVE(FOR REAR BRAKE) | ||||
| 90206-10059 |
CM2#,KM2#,YM20,25..WT |
2 | ||
| 47602 - LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE) | ||||
| 47612-27010 |
CM2#,KM2#,YM20,25..WT |
1 | ||
| 47613 - STRUT, PARKING BRAKE SHOE (FOR REAR BRAKE) | ||||
| 47614-27010 |
CM2#,KM2#,YM20,25..WT LH |
1 | ||
| 47613-27010 |
CM2#,KM2#,YM20,25..WT RH |
1 | ||
| Common parts | ||||
| 90101-08054 | ||||
| 90159-50013 | ||||
| 91611-60816 | ||||
| 93385-16010 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
