KM20V-JNZBEW (1981)

Toyota Lite/Townace Truck

Production Jan 1981 - Oct 1982
Engine 4KJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

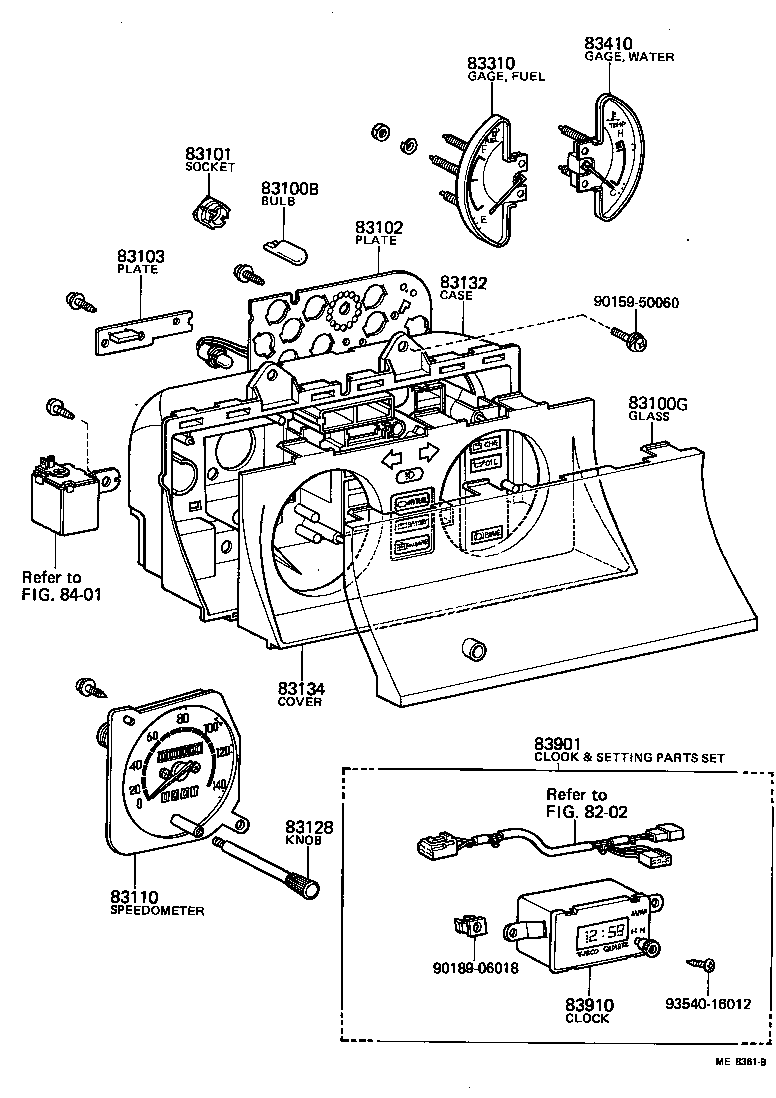

ILLUST NO. 1 OF 3(7910-8210)

Click highlighted areas on diagram

diagram 8202 83100B 83100G 83101 83102 83103 83110 83128 83132 83134 83310 83410 83901 83910 8401 9015950060 9018906018 9354016012
Part # Description Qty Price
83100B - BULB, COMBINATION METER, NO.1
99132-12034

CM2#,KM2#,TM20,YM2#

12V 3.4W,12V 3.4W

 16
83109-95700

KM20,TM20

W/GREEN CAP

 3
83100G - GLASS, COMBINATION METER
83138-95700

KM20,TM20

 1
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-20040

CM2#,KM2#,TM20,YM2#

12V 3.4W

 16
83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
83247-95701

KM20..SUP

 1
83247-95701

TM20;KM20..SUP

 1
83103 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2
83247-95020

KM20,TM20

 1
83110 - SPEEDOMETER ASSY
83110-95700

KM20,TM20

 1
83128 - KNOB, TRIP COUNTER
83128-95010

KM20,TM20

 1
83132 - CASE, COMBINATION METER
83132-95010

KM20,TM20

 1
83132-95722

KM20,TM20..DLX,STD,SUP,XL

 1
83134 - COVER, COMBINATION METER, NO.1
83134-95701

KM20..SUP

BROWN

 1
83310 - GAGE ASSY, FUEL RECEIVER
83243-95700

KM20,TM20..DLX,STD,SUP,XL

 1
83243-95700

KM20,TM20

 1
83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER
83244-95700

KM20,TM20

 1
83910 - CLOCK ASSY
83910-95700

KM20,TM20..DLX,GXL,SUP,XL

 1
83910-95700

KM20,TM20..V,WG

 1
Common parts
90159-50060
90189-06018
93540-16012
Linked diagrams
8202
8401
