KM20V-JNZBEW (1981)
Toyota Lite/Townace Truck
(7910-8210)DLX,GXL,STD,SUP,XL ; (8210- )CM2#,KM21,YM25..DLX,STD

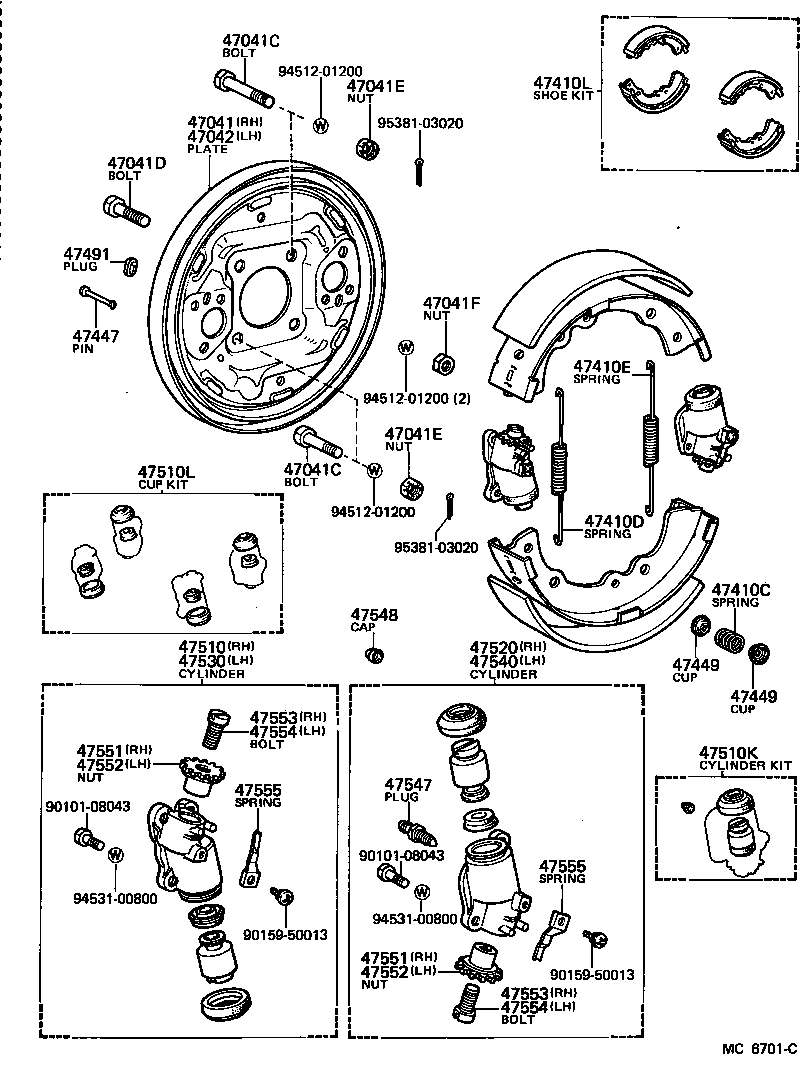

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47041 - PLATE SUB-ASSY, BRAKE BACKING, FRONT RH | ||||
| 47041-27020 |
KM20,TM20..DLX,GXL,STD,SUP,XL |
1 | ||
| 47041C - BOLT(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING) | ||||
| 90102-12044 |
KM20,TM20..DLX,GXL,STD,SUP,XL L=69.5 |
2 | ||
| 90102-12001 |
KM20,TM20..DLX,GXL,STD,SUP,XL *12−1.25PX58−23,L=65 |
2 | ||
| 47041C - BOLT(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING) | ||||
| 90102-12044 |
KM20,TM20..DLX,GXL,STD,SUP,XL L=69.5 |
2 | ||
| 90102-12001 |
KM20,TM20..DLX,GXL,STD,SUP,XL *12−1.25PX58−23,L=65 |
2 | ||
| 47041D - BOLT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING) | ||||
| 91171-71235 |
KM20,TM20..DLX,GXL,STD,SUP,XL |
4 | ||
| 47041E - NUT(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING) | ||||
| 94145-71200 |
KM20,TM20..DLX,GXL,STD,SUP,XL |
4 | ||
| 47041E - NUT(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING) | ||||
| 94145-71200 |
KM20,TM20..DLX,GXL,STD,SUP,XL |
4 | ||
| 47041F - NUT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING) | ||||
| 94115-51200 |
KM20,TM20..DLX,GXL,STD,SUP,XL |
4 | ||
| 47042 - PLATE SUB-ASSY, BRAKE BACKING, FRONT LH | ||||
| 47042-27020 |
KM20,TM20..DLX,GXL,STD,SUP,XL |
1 | ||
| 47410C - SPRING(FOR FRONT BRAKE SHOE HOLD DOWN) | ||||
| 90501-18017 |
KM20,TM20..DLX,GXL,STD,SUP,XL |
4 | ||
| 47410D - SPRING, TENSION(FOR FRONT BRAKE SHOE RETURN) | ||||
| 90506-20014 |
KM20,TM20..DLX,GXL,STD,SUP,XL |
2 | ||
| 47410E - SPRING, TENSION(FOR FRONT BRAKE SHOE RETURN) | ||||
| 90506-20014 |
KM20,TM20..DLX,GXL,STD,SUP,XL |
2 | ||
| 47410L - SHOE KIT, FRONT BRAKE | ||||
| 04496-20110 |
KM20,TM20..DLX,GXL,STD,SUP,XL REBUILT |
1 | ||
| 04494-20110 |
KM20,TM20..DLX,GXL,STD,SUP,XL |
1 | ||
| 47447 - PIN, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE) | ||||
| 47447-30020 |
KM20,TM20..DLX,GXL,STD,SUP,XL |
4 | ||
| 47449 - CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE) | ||||
| 47449-30020 |
KM20,TM20..DLX,GXL,STD,SUP,XL |
8 | ||
| 47449 - CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE) | ||||
| 47449-30020 |
KM20,TM20..DLX,GXL,STD,SUP,XL |
8 | ||
| 47491 - PLUG, HOLE(FOR FRONT BRAKE) | ||||
| 47491-20020 |
KM20,TM20..DLX,GXL,STD,SUP,XL |
4 | ||
| 47510 - CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER | ||||
| 47520-29125 |
KM20,TM20..DLX,GXL,STD,SUP,XL ID=23.81 |
1 | ||
| 47510K - CYLINDER KIT, FRONT WHEEL | ||||
| 04473-27010 |
KM20,TM20..DLX,GXL,STD,SUP,XL |
4 | ||
| 47510L - CUP KIT, FRONT WHEEL CYLINDER | ||||
| 04905-20040 |
KM20,TM20..DLX,GXL,STD,SUP,XL |
1 | ||
| 47520 - CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER) | ||||
| 47510-29205 |
KM20,TM20..DLX,GXL,STD,SUP,XL ID=23.81 |
1 | ||
| 47530 - CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER | ||||
| 47540-29125 |
KM20,TM20..DLX,GXL,STD,SUP,XL ID=23.81 |
1 | ||
| 47540 - CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER) | ||||
| 47530-29205 |
KM20,TM20..DLX,GXL,STD,SUP,XL ID=23.81 |
1 | ||
| 47547 - PLUG, BLEEDER(FOR FRONT DRUM BRAKE) | ||||
| 47547-12010 |
KM20,TM20..DLX,GXL,STD,SUP,XL |
2 | ||
| 47548 - CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT) | ||||
| 31478-30010 |
KM20,TM20..DLX,GXL,STD,SUP,XL |
2 | ||
| 47551 - NUT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE | ||||
| 47551-20010 |
KM20,TM20..DLX,GXL,STD,SUP,XL LH SCREW |
2 | ||
| 47551 - NUT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE | ||||
| 47551-20010 |
KM20,TM20..DLX,GXL,STD,SUP,XL LH SCREW |
2 | ||
| 47552 - NUT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE | ||||
| 47552-20010 |
KM20,TM20..DLX,GXL,STD,SUP,XL RH SCREW |
2 | ||
| 47552 - NUT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE | ||||
| 47552-20010 |
KM20,TM20..DLX,GXL,STD,SUP,XL RH SCREW |
2 | ||
| 47553 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAK | ||||
| 47553-20010 |
KM20,TM20..DLX,GXL,STD,SUP,XL LH SCREW |
2 | ||
| 47553 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAK | ||||
| 47553-20010 |
KM20,TM20..DLX,GXL,STD,SUP,XL LH SCREW |
2 | ||
| 47554 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAK | ||||
| 47554-20010 |
KM20,TM20..DLX,GXL,STD,SUP,XL RH SCREW |
2 | ||
| 47554 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAK | ||||
| 47554-20010 |
KM20,TM20..DLX,GXL,STD,SUP,XL RH SCREW |
2 | ||
| 47555 - SPRING, ADJUSTER LOCK(FOR FRONT BRAKE) | ||||
| 47555-20011 |
KM20,TM20..DLX,GXL,STD,SUP,XL |
4 | ||
| 47555 - SPRING, ADJUSTER LOCK(FOR FRONT BRAKE) | ||||
| 47555-20011 |
KM20,TM20..DLX,GXL,STD,SUP,XL |
4 | ||
| Common parts | ||||
| 90101-08043 | ||||
| 90159-50013 | ||||
| 94512-01200 | ||||
| 94531-00800 | ||||
| 95381-03020 | ||||
