KM20V-JNZBEW (1981)

Toyota Lite/Townace Truck

Production Jan 1981 - Oct 1982
Engine 4KJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910-8210)4KJ

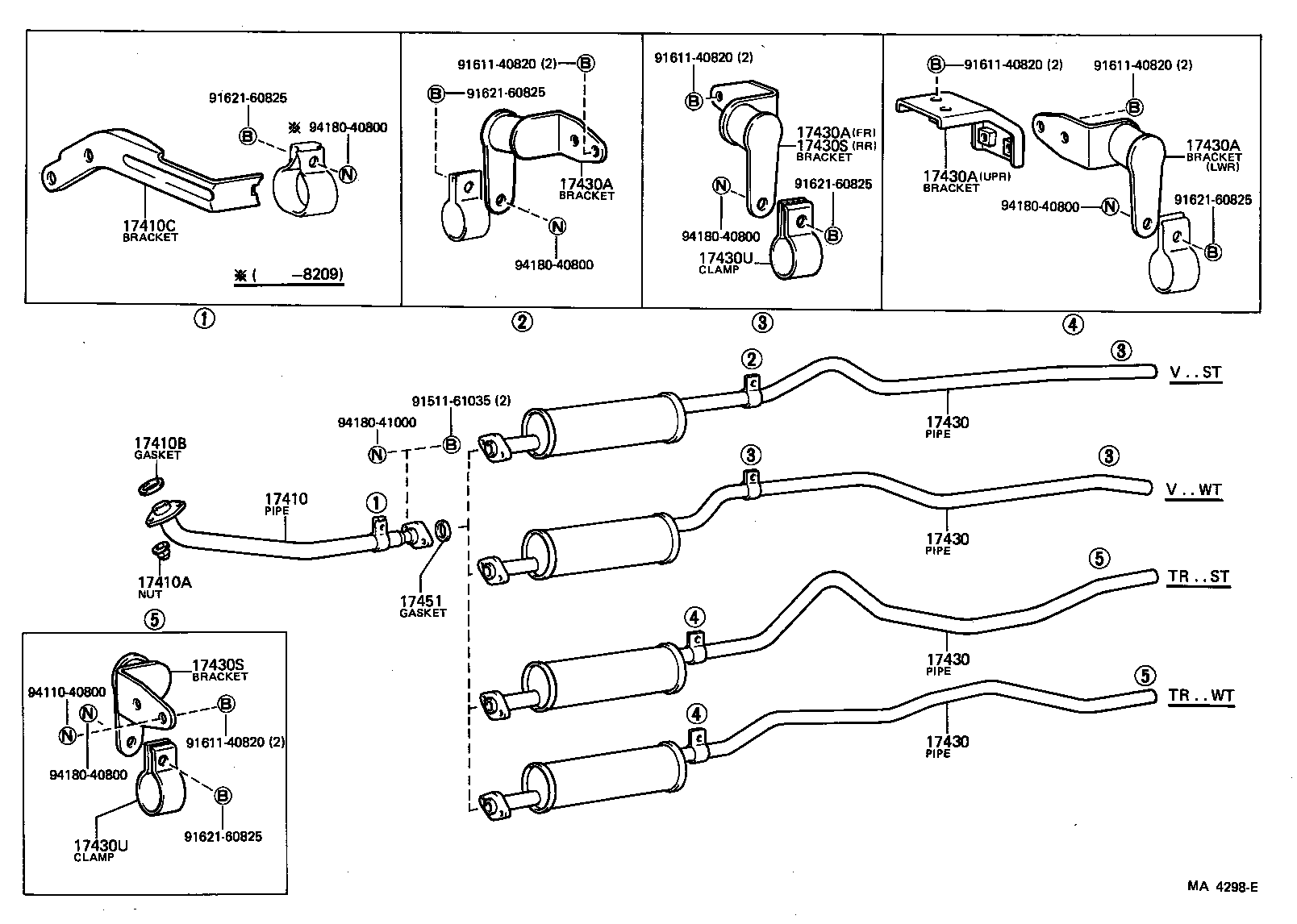

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17410C 17430 17430 17430 17430 17430A 17430A 17430A 17430A 17430S 17430S 17430U 17430U 17451 9151161035 9161140820 9161140820 9161140820 9161140820 9161140820 9162160825 9162160825 9162160825 9162160825 9162160825 9411040800 9418040800 9418040800 9418040800 9418040800 9418040800 9418041000
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17401-24070

4KJ..KM2#

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10010

13TU,1C,4KJ,1YJ,2YU..CM2#,KM2#,TM20,YM2#

 3
17410B - GASKET, EXHAUST PIPE
90917-06012

4KJ..KM2#

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-24130

4KJ..KM20

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17405-24080

4KJ..KM20..V..ST

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17405-24080

4KJ..KM20..V..ST

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17405-24080

4KJ..KM20..V..ST

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17405-24080

4KJ..KM20..V..ST

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17562-24121

4KJ..KM20..V..ST

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17562-24121

4KJ..KM20..V..ST

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17562-24121

4KJ..KM20..V..ST

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17562-24121

4KJ..KM20..V..ST

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17563-24120

4KJ..KM20

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17563-24120

4KJ..KM20

 1
17430U - CLAMP NO.1, EXHAUST TAIL PIPE (FOR REAR)
90461-23072

4KJ..KM20

 1
17430U - CLAMP NO.1, EXHAUST TAIL PIPE (FOR REAR)
90461-23072

4KJ..KM20

 1
17451 - GASKET, EXHAUST PIPE
90917-06001

1C,4KJ,1YJ..CM2#,KM2#,YM20,25

 1
Common parts
91511-61035
91611-40820
91621-60825
94110-40800
94180-40800
94180-41000
