KM20V-JNZBETW (1981)
Toyota Lite/Townace Truck

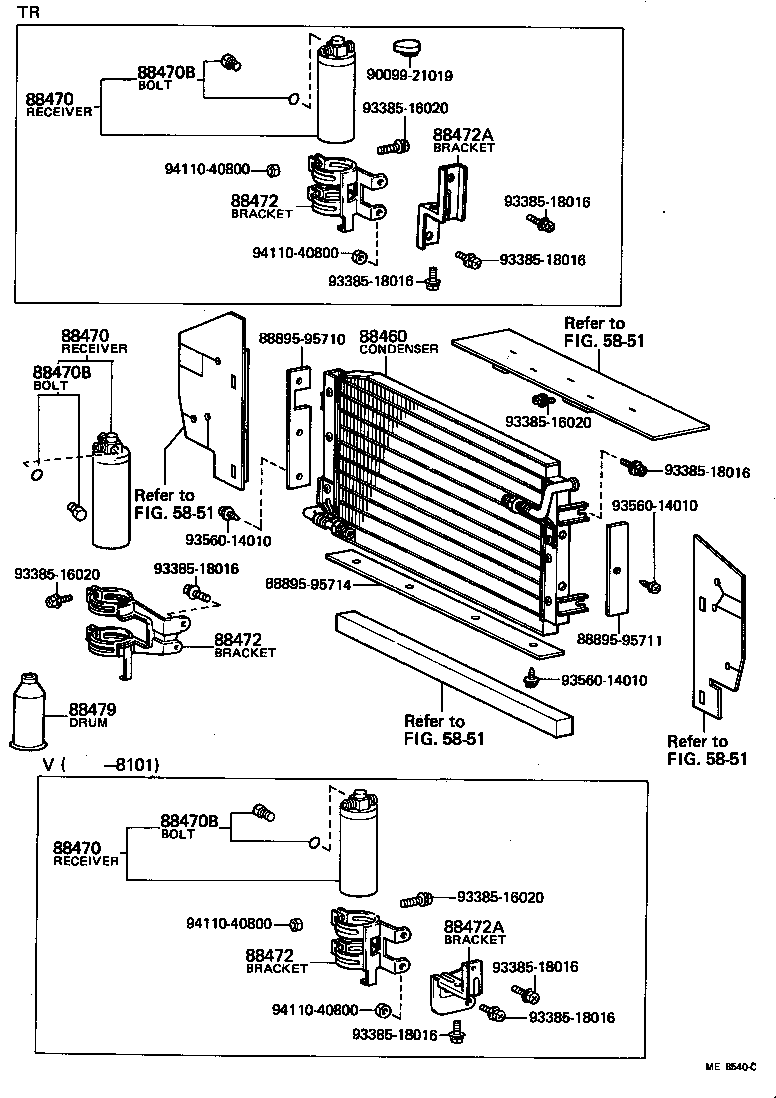

ILLUST NO. 1 OF 3(7910-8210)KM20..DLX,SUP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-95706 |
KM20..V..(DLX,SUP) |
1 | ||
| 88460-95700 |
KM20..DLX,SUP |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-20070 |
KM20,TM20..DLX,GXL,SUP,XL |
1 | ||
| 88471-16010 |
KM20,TM20..(V,WG)..(DLX,FXV,GXL,SUP,XL) |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-20070 |
KM20,TM20..DLX,GXL,SUP,XL |
1 | ||
| 88471-16010 |
KM20,TM20..(V,WG)..(DLX,FXV,GXL,SUP,XL) |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-20070 |
KM20,TM20..DLX,GXL,SUP,XL |
1 | ||
| 88471-16010 |
KM20,TM20..(V,WG)..(DLX,FXV,GXL,SUP,XL) |
1 | ||
| 88470B - BOLT, FUSE | ||||
| 90099-04579 |
CM2#,KM2#,TM20,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL |
1 | ||
| 88470B - BOLT, FUSE | ||||
| 90099-04579 |
CM2#,KM2#,TM20,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL |
1 | ||
| 88470B - BOLT, FUSE | ||||
| 90099-04579 |
CM2#,KM2#,TM20,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-95700 |
KM20,TM20..(HRF,SRF)..(DLX,GXL,SUP,XL) |
1 | ||
| 88472-95701 |
KM20,TM20..(V,WG)..(DLX,FXV,GXL,SUP,XL) |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-95701 |
KM20,TM20..(V,WG)..(DLX,FXV,GXL,SUP,XL) |
1 | ||
| 88472-95700 |
KM20,TM20..(HRF,SRF)..(DLX,GXL,SUP,XL) |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-95701 |
KM20,TM20..(V,WG)..(DLX,FXV,GXL,SUP,XL) |
1 | ||
| 88472-95700 |
KM20,TM20..(HRF,SRF)..(DLX,GXL,SUP,XL) |
1 | ||
| 88472A - BRACKET, RECEIVER TANK, NO.2 | ||||
| 88688-95701 |
KM20..V..(DLX,SUP) |
1 | ||
| 88472A - BRACKET, RECEIVER TANK, NO.2 | ||||
| 88688-95701 |
KM20..V..(DLX,SUP) |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02001 |
CM2#,KM2#,TM20,YM2#..CS7,DLX,FXV,GXL,MTP,S,SUP,SW,XL 400G |
4 | ||
| Common parts | ||||
| 88895-95710 | ||||
| 88895-95711 | ||||
| 88895-95714 | ||||
| 90099-21019 | ||||
| 93385-16020 | ||||
| 93385-18016 | ||||
| 93560-14010 | ||||
| 94110-40800 | ||||
| Linked diagrams | ||||
| 5851 | ||||

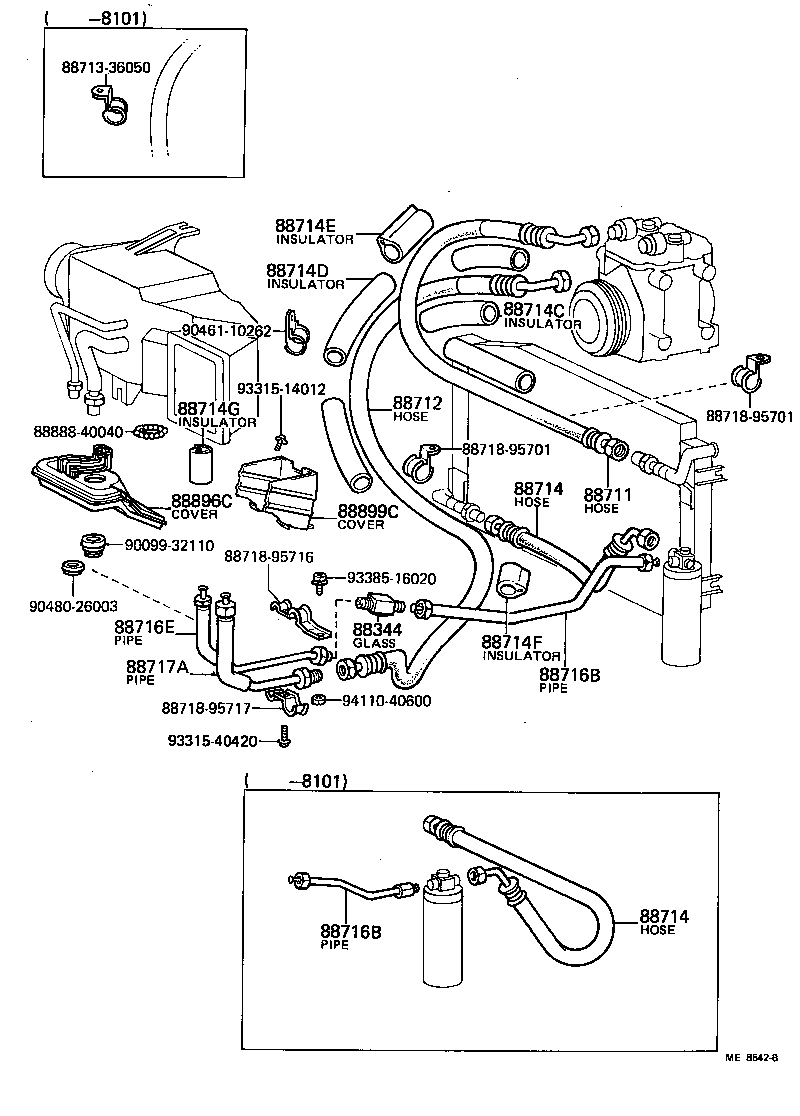

ILLUST NO. 3 OF 3(7910-8210)V..DLX,SUP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88344 - GLASS SUB-ASSY, SIGHT | ||||
| 88344-30011 |
KM20,TM20..(HRF,SRF)..(DLX,GXL,SUP,XL) |
1 | ||
| 88407-95701 |
KM20,TM20..(V,WG)..(DLX,FXV,GXL,SUP,XL) |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-95703 |
KM20..DLX,SUP |
1 | ||
| 88711-95708 |
KM20..V..(DLX,SUP) |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-95706 |
KM20..V..(DLX,SUP) |
1 | ||
| 88712-95702 |
KM20..V..(DLX,SUP) |
1 | ||
| 88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1 | ||||
| 88721-95700 |
KM20,TM20..(HRF,SRF)..(DLX,GXL,SUP,XL) |
1 | ||
| 88721-95701 |
KM20,TM20..(V,WG)..(DLX,FXV,GXL,SUP,XL) |
1 | ||
| 88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1 | ||||
| 88721-95700 |
KM20,TM20..(HRF,SRF)..(DLX,GXL,SUP,XL) |
1 | ||
| 88721-95701 |
KM20,TM20..(V,WG)..(DLX,FXV,GXL,SUP,XL) |
1 | ||
| 88714C - INSULATOR, COOLER REFRIGERANT HOSE, NO.1 | ||||
| 88714-14010 |
KM20,TM20..DLX,FXV,GXL,SUP,XL L=130,OD=32 |
5 | ||
| 88714D - INSULATOR, COOLER REFRIGERANT HOSE, NO.2 | ||||
| 88714-20030 |
KM20,TM20..DLX,FXV,GXL,SUP,XL L=180,OD=38 |
5 | ||
| 88714E - INSULATOR, COOLER REFRIGERANT HOSE, NO.3 | ||||
| 88714-95700 |
KM20,TM20..DLX,FXV,GXL,SUP,XL |
2 | ||
| 88714F - INSULATOR, COOLER REFRIGERANT HOSE, NO.4 | ||||
| 88714-14020 |
KM20,TM20..DLX,GXL,SUP,XL |
5 | ||
| 88714-14020 |
KM20..DLX,SUP |
5 | ||
| 88714G - INSULATOR, COOLER REFRIGERANT PIPE, NO.1 | ||||
| 88592-30190 |
KM20,TM20..DLX,FXV,GXL,SUP,XL |
2 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-95712 |
KM20,TM20..(V,WG)..(DLX,FXV,GXL,SUP,XL) |
1 | ||
| 88716-95703 |
KM20,TM20..(HRF,SRF)..(DLX,GXL,SUP,XL) |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-95712 |
KM20,TM20..(V,WG)..(DLX,FXV,GXL,SUP,XL) |
1 | ||
| 88716-95703 |
KM20,TM20..(HRF,SRF)..(DLX,GXL,SUP,XL) |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-95717 |
KM20,TM20..(V,WG)..(DLX,FXV,GXL,SUP,XL) |
1 | ||
| 88716-95708 |
KM20,TM20..(HRF,SRF)..(DLX,GXL,SUP,XL) |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-95700 |
KM20,TM20..(HRF,SRF)..(DLX,GXL,SUP,XL) |
1 | ||
| 88717-95711 |
KM20,TM20..(V,WG)..(DLX,FXV,GXL,SUP,XL) |
1 | ||
| 88896C - COVER, COOLER REFRIGERANT PIPE, NO.1 | ||||
| 88896-95700 |
KM20,TM20..DLX,FXV,GXL,SUP,XL |
1 | ||
| 88899C - COVER, COOLER REFRIGERANT PIPE, NO.2 | ||||
| 88899-95702 |
KM20,TM20..DLX,FXV,GXL,SUP,XL |
1 | ||
| Common parts | ||||
| 88713-36050 | ||||
| 88718-95701 | ||||
| 88718-95716 | ||||
| 88718-95717 | ||||
| 88888-40040 | ||||
| 90099-32110 | ||||
| 90461-10262 | ||||
| 90480-26003 | ||||
| 93315-14012 | ||||
| 93315-40420 | ||||
| 93385-16020 | ||||
| 94110-40600 | ||||
