KM20V-JNW (1979)

Toyota Lite/Townace Truck

Production Oct 1979 - Oct 1982
Engine 4KJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910- )

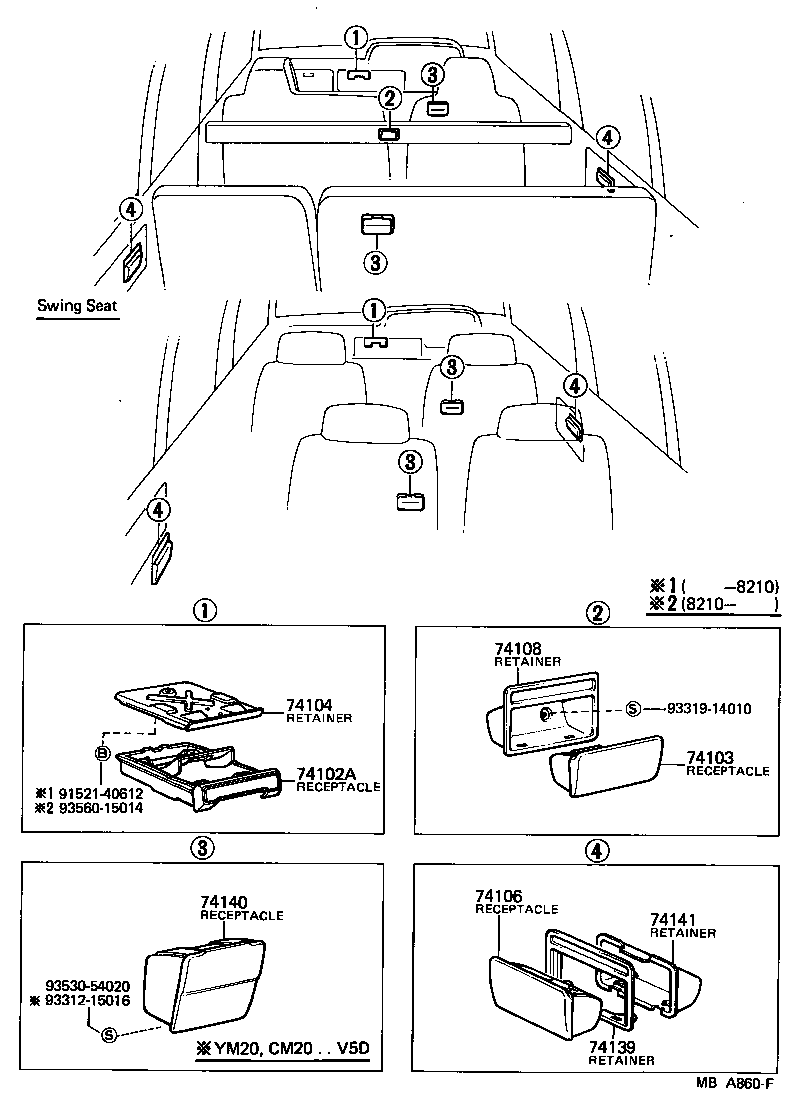

Click highlighted areas on diagram

diagram 74102A 74103 74104 74106 74108 74139 74140 74141 9152140612 9331215016 9331914010 9353054020 9356015014
Part # Description Qty Price
74102A - RECEPTACLE ASSY, FRONT ASH
74101-9570506

KM20,TM20

BROWN,BROWN

 1
74101-9570503

KM20,TM20

GRAY,GRAY

 1
74103 - RECEPTACLE SUB-ASSY, ASH, NO.1
74105-1001001

KM20..06S

SEPARATOR,BLACK,BLACK

 1
74105-1001006

KM20..06S

SEPARATOR,BROWN,BROWN

 1
74105-1001036

KM20..06S

SEPARATOR,BROWN,BROWN

 1
74104 - RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1
74104-95702

KM20,TM20

 1
74104-95702

KM20,TM20..DLX,STD,SUP,XL

 1
74108 - RETAINER SUB-ASSY, REAR ASH RECEPTACLE
74141-95550

KM2#..06S

 1
Common parts
91521-40612
93312-15016
93319-14010
93530-54020
93560-15014
