KM20V-JDZTW (1979)

Toyota Lite/Townace Truck

Production Oct 1979 - Oct 1982
Engine 4KJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910-8210)KM20

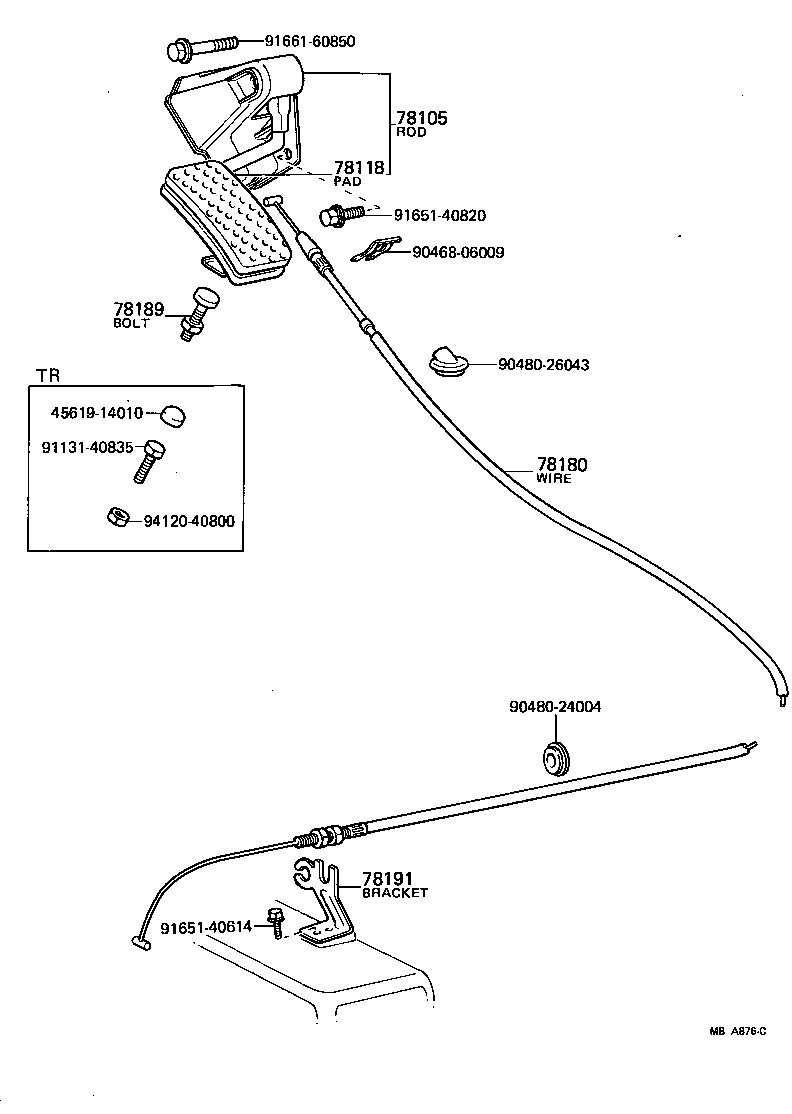

Click highlighted areas on diagram

diagram 4561914010 78105 78118 78180 78189 78191 9046806009 9048024004 9048026043 9113140835 9165140614 9165140820 9166160850 9412040800
Part # Description Qty Price
78105 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.3
78105-95700

KM20,TM20

 1
78105-95700

KM20

 1
78118 - PAD, ACCELERATOR PEDAL
78119-95700

CM2#,KM2#,TM20,YM2#

 1
78180 - WIRE ASSY, ACCELERATOR
78150-95710

KM20..V

 1
78189 - BOLT, ACCELERATOR PEDAL STOPPER
78107-95A00

CM20,KM2#,TM20,YM20,21..V,WG

 1
78191 - BRACKET, ACCELERATOR WIRE SUPPORT
78184-95700

KM2#

 1
Common parts
45619-14010
90468-06009
90480-24004
90480-26043
91131-40835
91651-40614
91651-40820
91661-60850
94120-40800
