KM20V-JDZTW (1979)

Toyota Lite/Townace Truck

Production Oct 1979 - Oct 1982
Engine 4KJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910- )

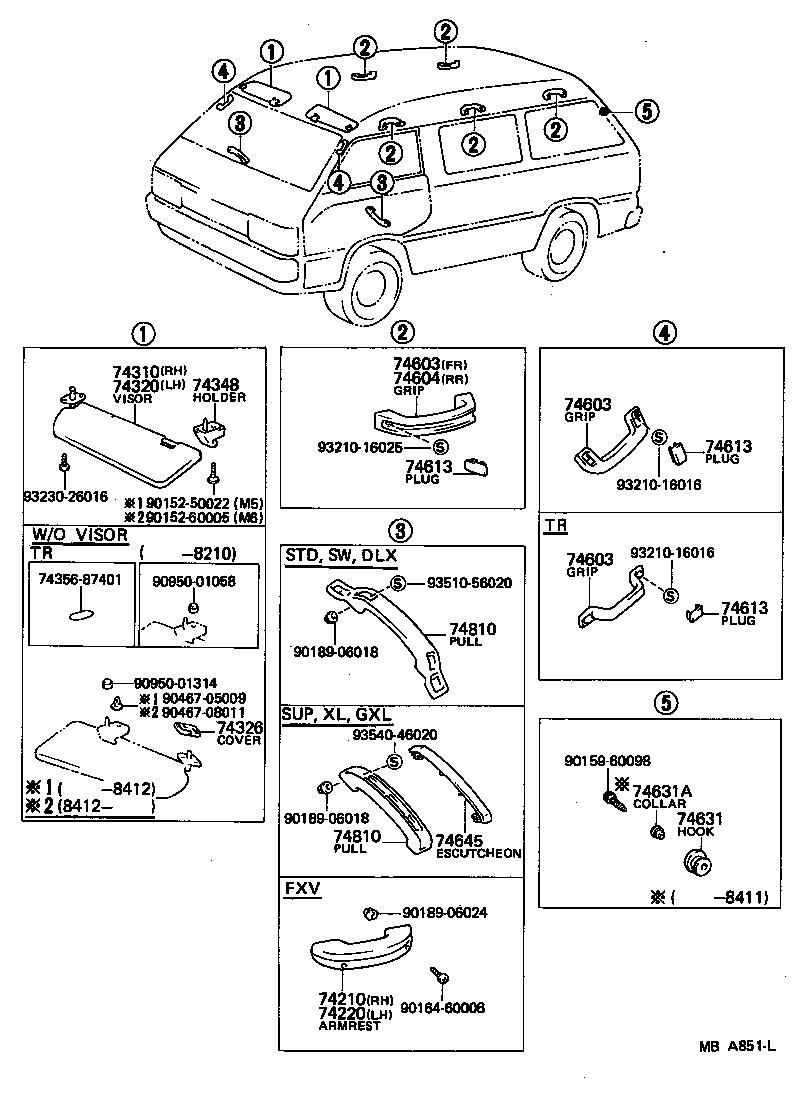

Click highlighted areas on diagram

diagram 74210 74220 74310 74320 74326 74348 7435687401 74603 74603 74603 74604 74613 74613 74613 74631 74631A 74645 74810 74810 9015250022 9015260005 9015960098 9016460006 9018906018 9018906018 9018906024 9046705009 9046708011 9095001058 9095001314 9321016016 9321016016 9321016025 9323026016 9351056020 9354046020
Part # Description Qty Price
74310 - VISOR ASSY, RH
74310-95703

KM20

 1
74310-9570808

KM20..HRF

IVORY,IVORY

 1
74320 - VISOR ASSY, LH
74310-95703

KM20,TM20..DLX,SUP,XL

 1
74310-9570808

KM20,TM20..HRF..(DLX,SUP,XL)

IVORY,IVORY

 1
74348 - HOLDER, VISOR
74348-95700

KM20,TM20

 2
74348-95701

KM20,TM20..V,WG

 2
74603 - GRIP SUB-ASSY, ASSIST, FRONT
74603-1401018

KM20,TM20

LH,IVORY

 1
74610-1002008

KM20,TM20

LH,IVORY

 1
74603 - GRIP SUB-ASSY, ASSIST, FRONT
74603-1401018

KM20,TM20

LH,IVORY

 1
74610-1002008

KM20,TM20

LH,IVORY

 1
74603 - GRIP SUB-ASSY, ASSIST, FRONT
74603-1401018

KM20,TM20

LH,IVORY

 1
74610-1002008

KM20,TM20

LH,IVORY

 1
74613 - PLUG, ASSIST GRIP
74617-1401008

KM20,TM20

FR LH,RR,IVORY

 10
74613-1401018

KM20,TM20

FR LH,RR,IVORY

 10
74613 - PLUG, ASSIST GRIP
74617-1401008

KM20,TM20

FR LH,RR,IVORY

 10
74613-1401018

KM20,TM20

FR LH,RR,IVORY

 10
74613 - PLUG, ASSIST GRIP
74617-1401008

KM20,TM20

FR LH,RR,IVORY

 10
74613-1401018

KM20,TM20

FR LH,RR,IVORY

 10
74810 - PULL ASSY, DOOR, INSIDE
69285-9540306

KM20,TM20..DLX,STD

BROWN,BROWN

 2
69151-95700

KM20,TM20..DLX,STD

 2
74810 - PULL ASSY, DOOR, INSIDE
69285-9540306

KM20,TM20..DLX,STD

BROWN,BROWN

 2
69151-95700

KM20,TM20..DLX,STD

 2
Common parts
74356-87401
90152-50022
90152-60005
90159-60098
90164-60006
90189-06018
90189-06024
90467-05009
90467-08011
90950-01058
90950-01314
93210-16016
93210-16025
93230-26016
93510-56020
93540-46020
