KM20V-JDZTW (1979)

Toyota Lite/Townace Truck

Production Oct 1979 - Oct 1982
Engine 4KJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8011-8011)KM20

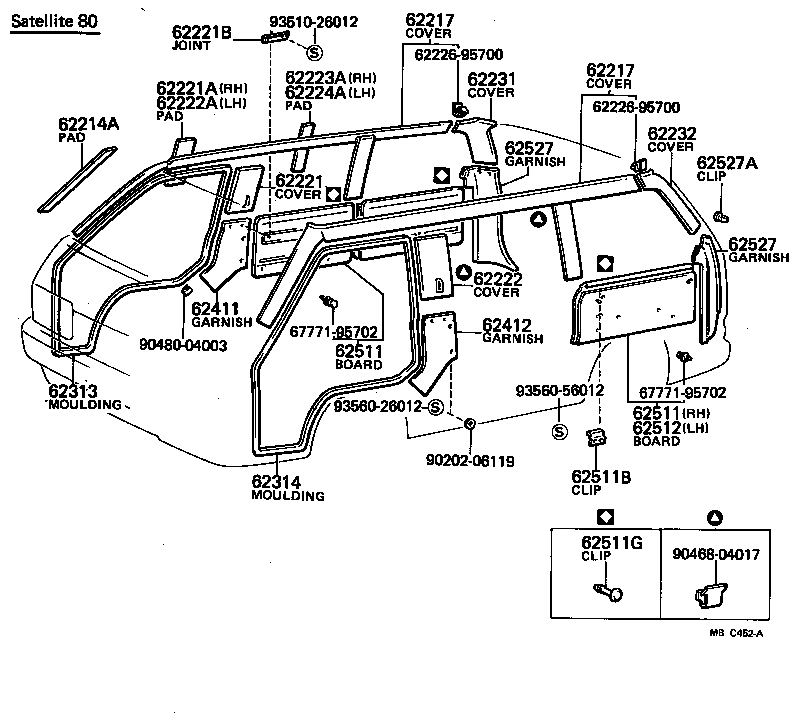

Click highlighted areas on diagram

diagram 62214A 62217 62217 62221 62221A 62221B 62222 62222A 62223A 62224A 6222695700 6222695700 62231 62232 62313 62314 62411 62412 62511 62511 62511B 62511G 62512 62527 62527 62527A 6777195702 6777195702 9020206119 9046804017 9048004003 9351026012 9356026012 9356056012
Part # Description Qty Price
62313 - MOULDING, FRONT DOOR OPENING TRIM, RH
62313-95703

KM20,TM20..(HRF,SRF)..(DLX,STD,SUP)

 1
62314 - MOULDING, FRONT DOOR OPENING TRIM, LH
62313-95703

KM20,TM20..(HRF,SRF)..(DLX,STD,SUP)

 1
62511 - BOARD, QUARTER INSIDE TRIM, RH
62130-95700

KM20..V4D..VSG;KM20..SRF..VSP

FR

 1
62140-95705

KM20..VSG..WT

RR

 1
62511 - BOARD, QUARTER INSIDE TRIM, RH
62130-95700

KM20..V4D..VSG;KM20..SRF..VSP

FR

 1
62140-95705

KM20..VSG..WT

RR

 1
62512 - BOARD, QUARTER INSIDE TRIM, LH
62150-95711

KM20..06S..WT

W/*RW

 1
62150-95710

KM20..06S..WT

 1
62150-95711

KM20..06S..(DLX,SUP)..WT

W/*RW

 1
62150-95710

KM20..06S..WT

 1
Common parts
62226-95700
67771-95702
90202-06119
90468-04017
90480-04003
93510-26012
93560-26012
93560-56012

(7910-8210)V ; (8210-8508)SUP ; (8308-8508)SW

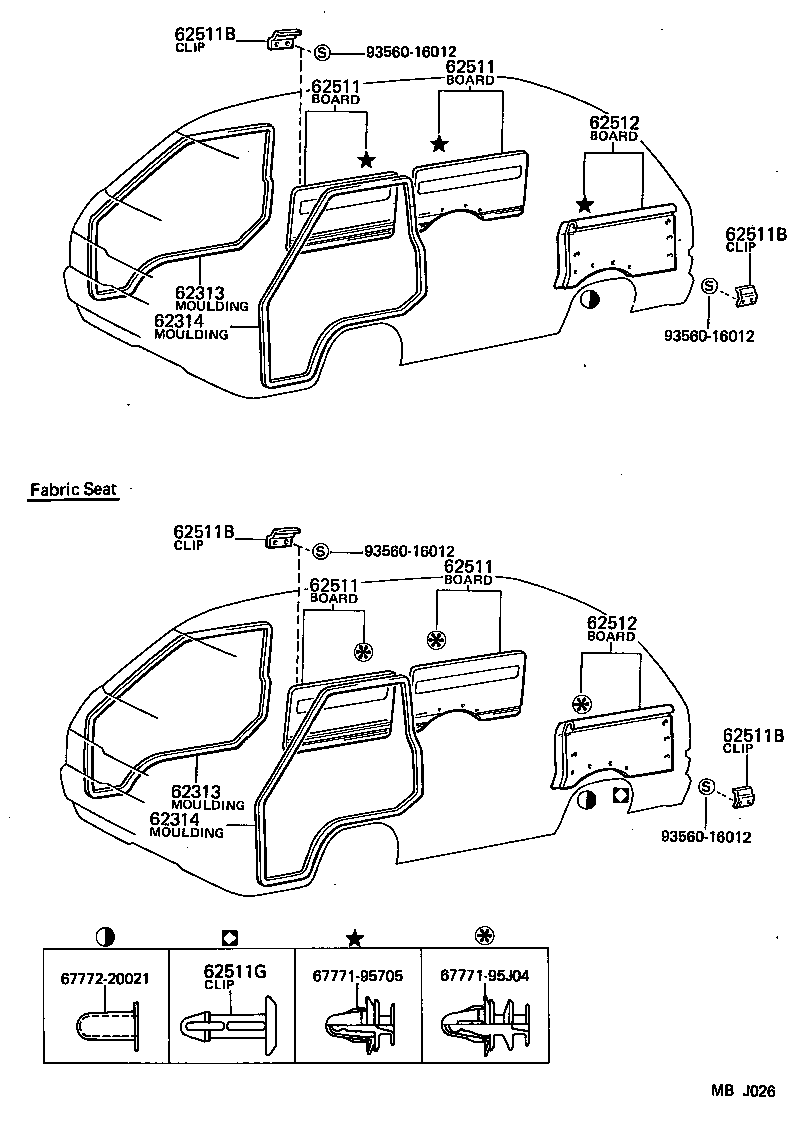

Click highlighted areas on diagram

diagram 62313 62313 62314 62314 62511 62511 62511 62511 62511B 62511B 62511B 62511B 62511G 62512 62512 6777195705 6777195J04 6777220021 9356016012 9356016012 9356016012 9356016012
Part # Description Qty Price
62313 - MOULDING, FRONT DOOR OPENING TRIM, RH
62313-95703

KM20,TM20..(HRF,SRF)..(DLX,STD,SUP)

 1
62313 - MOULDING, FRONT DOOR OPENING TRIM, RH
62313-95703

KM20,TM20..(HRF,SRF)..(DLX,STD,SUP)

 1
62314 - MOULDING, FRONT DOOR OPENING TRIM, LH
62313-95703

KM20,TM20..(HRF,SRF)..(DLX,STD,SUP)

 1
62314 - MOULDING, FRONT DOOR OPENING TRIM, LH
62313-95703

KM20,TM20..(HRF,SRF)..(DLX,STD,SUP)

 1
62511 - BOARD, QUARTER INSIDE TRIM, RH
62130-95700

KM20..V4D..VSG;KM20..SRF..VSP

FR

 1
62140-95705

KM20..VSG..WT

RR

 1
62511 - BOARD, QUARTER INSIDE TRIM, RH
62130-95700

KM20..V4D..VSG;KM20..SRF..VSP

FR

 1
62140-95705

KM20..VSG..WT

RR

 1
62511 - BOARD, QUARTER INSIDE TRIM, RH
62130-95700

KM20..V4D..VSG;KM20..SRF..VSP

FR

 1
62140-95705

KM20..VSG..WT

RR

 1
62511 - BOARD, QUARTER INSIDE TRIM, RH
62130-95700

KM20..V4D..VSG;KM20..SRF..VSP

FR

 1
62140-95705

KM20..VSG..WT

RR

 1
62512 - BOARD, QUARTER INSIDE TRIM, LH
62150-95711

KM20..06S..WT

W/*RW

 1
62150-95710

KM20..06S..WT

 1
62150-95711

KM20..06S..(DLX,SUP)..WT

W/*RW

 1
62150-95710

KM20..06S..WT

 1
62512 - BOARD, QUARTER INSIDE TRIM, LH
62150-95711

KM20..06S..WT

W/*RW

 1
62150-95710

KM20..06S..WT

 1
62150-95711

KM20..06S..(DLX,SUP)..WT

W/*RW

 1
62150-95710

KM20..06S..WT

 1
Common parts
67771-95705
67771-95J04
67772-20021
93560-16012
