KM20V-JDZTW (1979)

Toyota Lite/Townace Truck

Production Oct 1979 - Oct 1982
Engine 4KJ
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7910-8001)

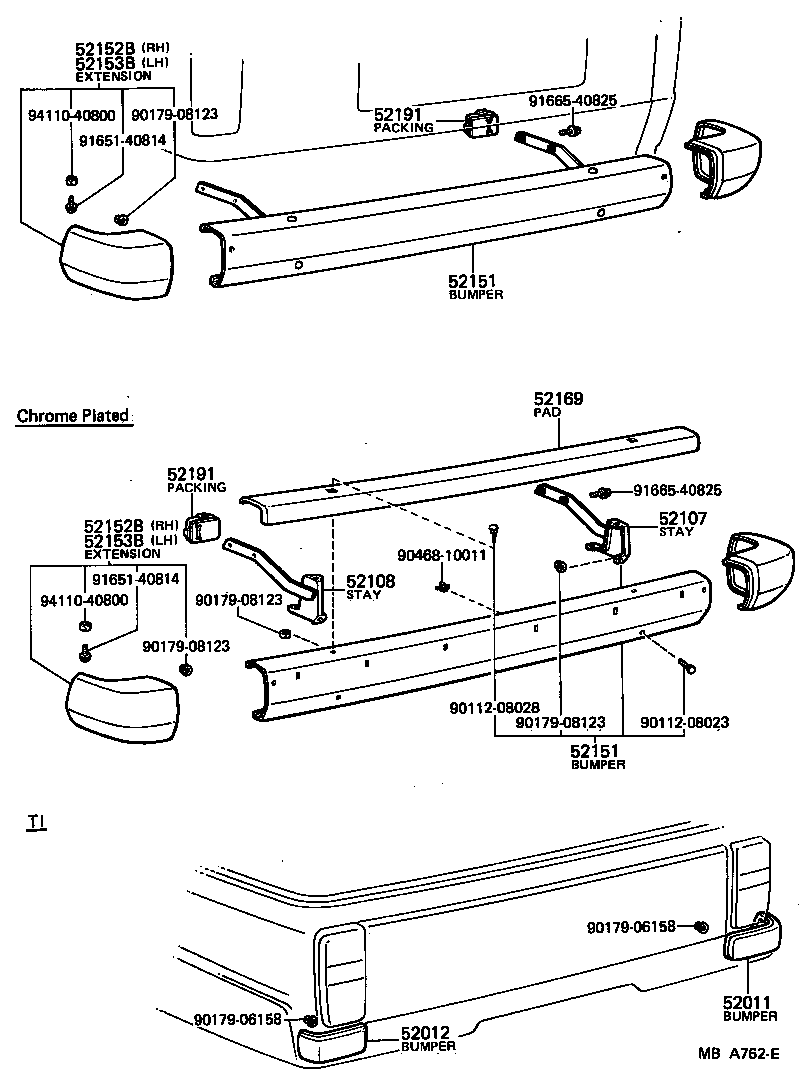

Click highlighted areas on diagram

diagram 52011 52012 52107 52108 52151 52151 52152B 52152B 52153B 52153B 52169 52191 52191 9011208023 9011208028 9017906158 9017906158 9017908123 9017908123 9017908123 9017908123 9046810011 9165140814 9165140814 9166540825 9166540825 9411040800 9411040800
Part # Description Qty Price
52151 - BUMPER ASSY, REAR
52102-95702

KM20..HRF..WT

 1
52151 - BUMPER ASSY, REAR
52102-95702

KM20..HRF..WT

 1
52152B - EXTENSION, REAR BUMPER, RH
52021-29015

KM20,TM20..(V,WG)..(DLX,GXL,STD,SUP,XL)

 1
52152B - EXTENSION, REAR BUMPER, RH
52021-29015

KM20,TM20..(V,WG)..(DLX,GXL,STD,SUP,XL)

 1
52153B - EXTENSION, REAR BUMPER, LH
52022-29015

KM20,TM20..(V,WG)..(DLX,GXL,STD,SUP,XL)

 1
52153B - EXTENSION, REAR BUMPER, LH
52022-29015

KM20,TM20..(V,WG)..(DLX,GXL,STD,SUP,XL)

 1
52191 - PACKING, REAR BUMPER STAY
52191-95700

CM20,KM2#,TM20,YM20,21..V,WG

 2
52191 - PACKING, REAR BUMPER STAY
52191-95700

CM20,KM2#,TM20,YM20,21..V,WG

 2
Common parts
90112-08023
90112-08028
90179-06158
90179-08123
90468-10011
91651-40814
91665-40825
94110-40800

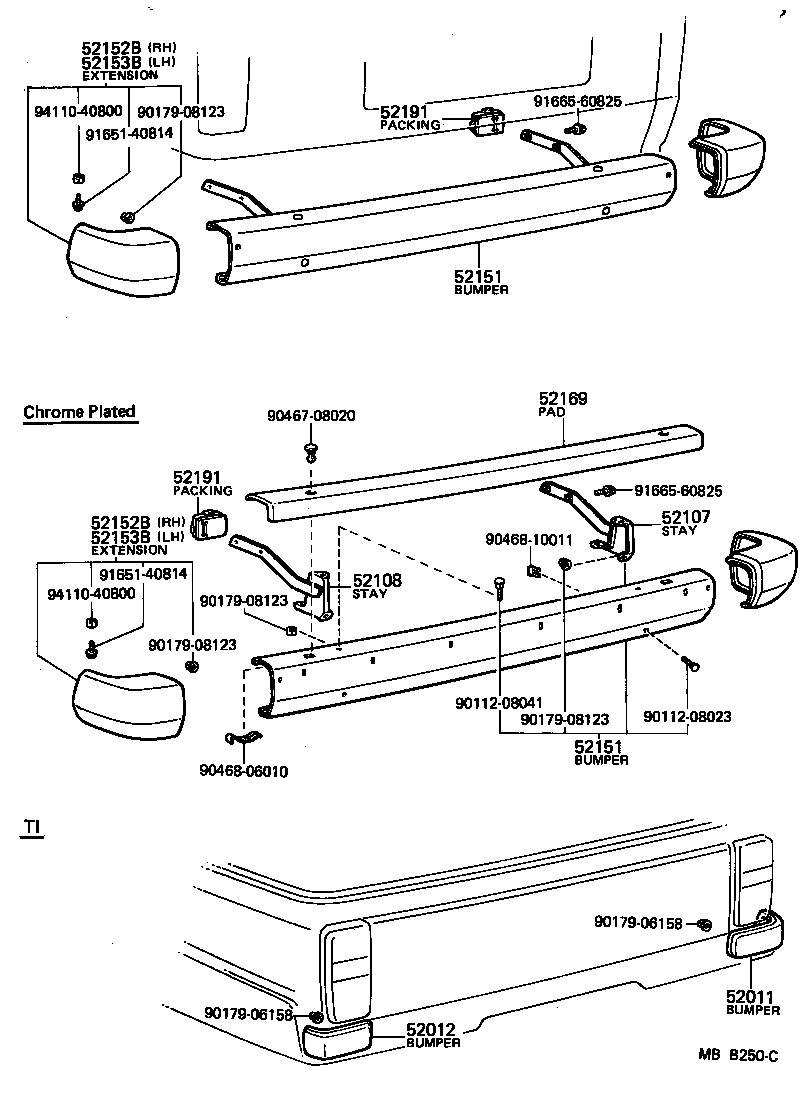

ILLUST NO. 1 OF 2(8001-8210)DLX,GXL,STD,SUP,XL ; (8210- )TR

Click highlighted areas on diagram

diagram 52011 52012 52107 52108 52151 52151 52152B 52152B 52153B 52153B 52169 52191 52191 9011208023 9011208041 9017906158 9017906158 9017908123 9017908123 9017908123 9017908123 9046708020 9046806010 9046810011 9165140814 9165140814 9166560825 9166560825 9411040800 9411040800
Part # Description Qty Price
52151 - BUMPER ASSY, REAR
52102-95702

KM20..HRF..WT

 1
52151 - BUMPER ASSY, REAR
52102-95702

KM20..HRF..WT

 1
52152B - EXTENSION, REAR BUMPER, RH
52021-29015

KM20,TM20..(V,WG)..(DLX,GXL,STD,SUP,XL)

 1
52152B - EXTENSION, REAR BUMPER, RH
52021-29015

KM20,TM20..(V,WG)..(DLX,GXL,STD,SUP,XL)

 1
52153B - EXTENSION, REAR BUMPER, LH
52022-29015

KM20,TM20..(V,WG)..(DLX,GXL,STD,SUP,XL)

 1
52153B - EXTENSION, REAR BUMPER, LH
52022-29015

KM20,TM20..(V,WG)..(DLX,GXL,STD,SUP,XL)

 1
52191 - PACKING, REAR BUMPER STAY
52191-95700

CM20,KM2#,TM20,YM20,21..V,WG

 2
52191 - PACKING, REAR BUMPER STAY
52191-95700

CM20,KM2#,TM20,YM20,21..V,WG

 2
Common parts
90112-08023
90112-08041
90179-06158
90179-08123
90467-08020
90468-06010
90468-10011
91651-40814
91665-60825
94110-40800
